DLD-SSPF All-in-two Solar Street Light | High-Efficiency Outdoor Lighting Solution
-Die cast aliuminum & optical lens
-Split solar street light
-Solar Charging system
-Using grade A LiFePO4 Battery
-Auto turn on when detect darkness, auto turn off & charging when detect dawn
-Can install outdoor or far away from off grid places
-Tool Free maintenance
-IP65 waterproof
| Product Name | Solar LED Street light | ||
| Item No. | DLD-SSPF-100W | DLD-SSPF-200W | DLD-SSPF-300W |
| Solar Panel | Poly 6V/30W (350*580*15mm) | Poly 6V/50W (390*680*25mm) | Poly 6V/70W (580*670*25mm) |
| Battery type | LiFePO4 3.2V/30Ah | LiFePO4 3.2V/50Ah | LiFePO4 3.2V/70Ah |
| Dimensions(mm) | 479*195*100 | 479*195*100 | 539*235*101 |
| LEDs | 60PCS/5054 | 60PCS/5054 | 128PCS/5054 |
| Luminous Efficiency | 180lm/w | 180lm/w | 180lm/w |
| Color Temp | 3000K/4500K/6500K | ||
| Charging time | 4~6 hours | ||
| Discharging time | >12hours | ||
| Material | Die Cast Aluminum & Optical lens | ||
| Install Height | 3~9M | ||
| Application | Garden, Parks, Home, outdoor where far away from grid places etc. | ||
| Warranty | 3 Years | ||

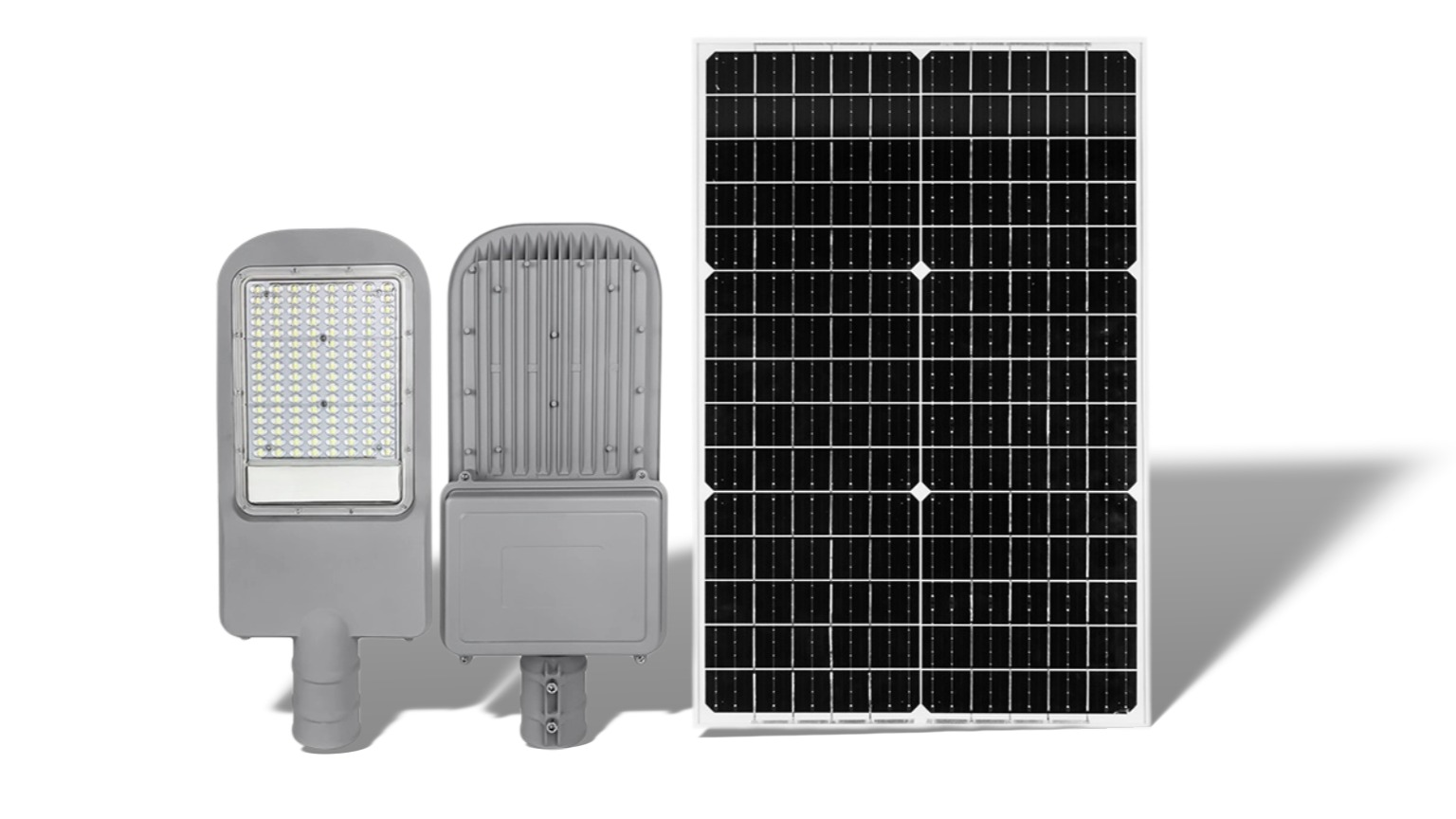

High Power solar street light consist of lamp body, led modular, controller, solar panel, lithium battery, bracket and cables for the whole set system
The lamp body mateiral is die cast aluminum housing no cracking, anti-corrosion, high and low temperature resistance and durable
We use high efficiency 5054 LED chips, no light decay, long service, long lifetime and high brightness lighting

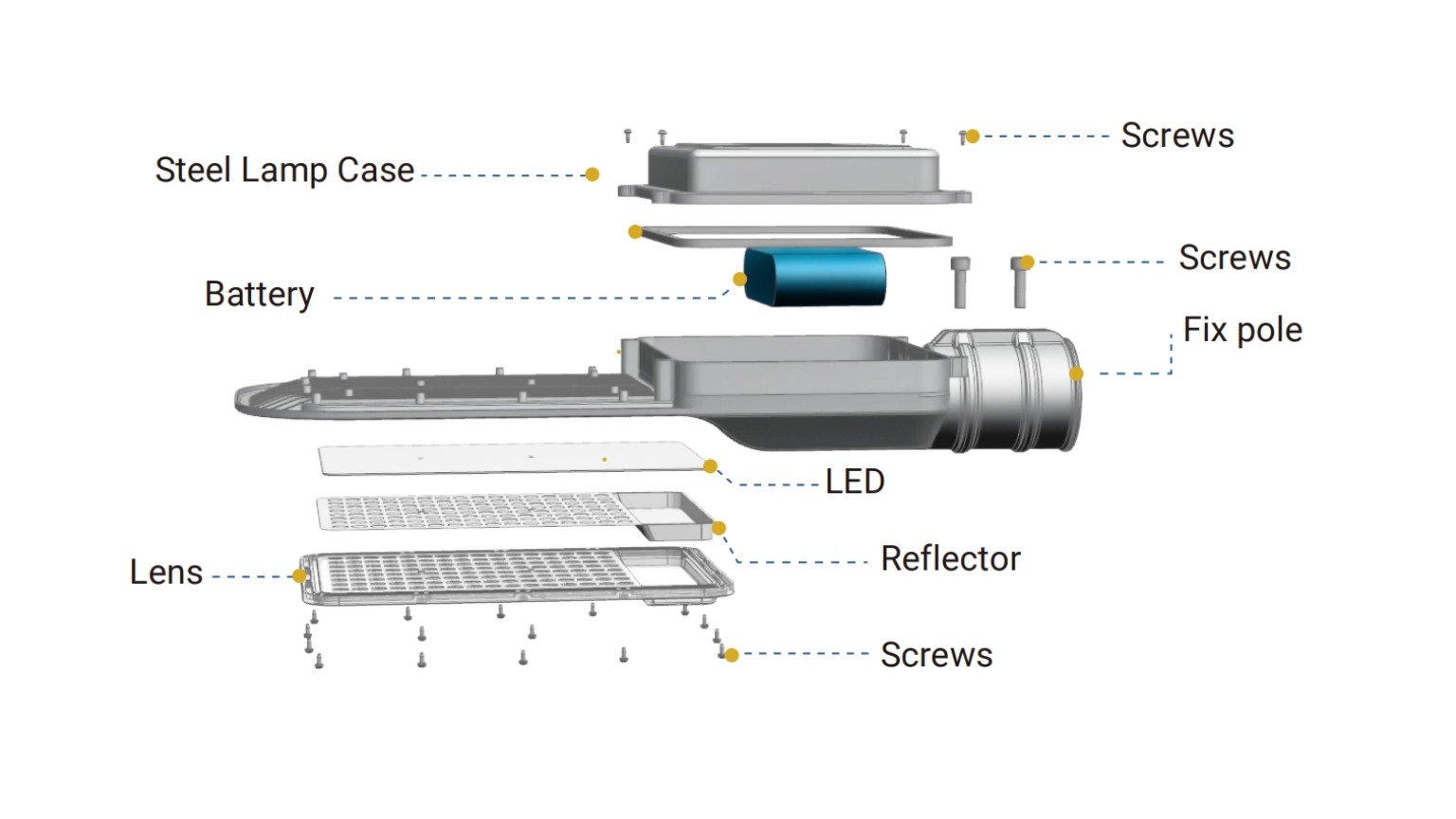

Solar Street light are made up of Die cast aluminum housing, LED modular, Lens, Reflector, Battery spaces, Fix pole, Screws, This model battery space is bigger than market normal designs, with good heat dissipation

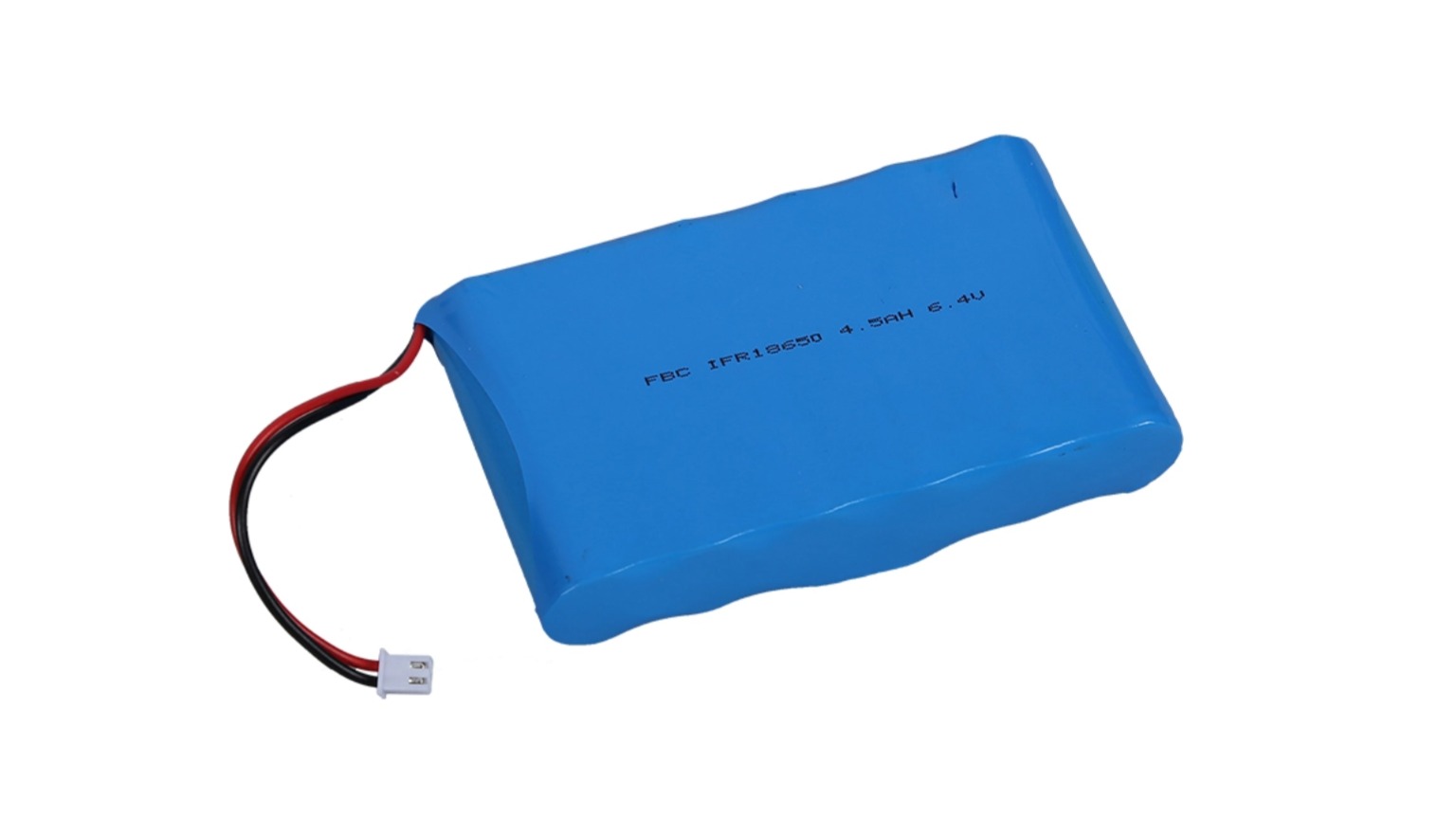

What Kind of battery we used for the solar flood light?
We use Lithium battery LiFePO4 and features as below:
IFR32700-5000mAh battery 3.2V each pieces
This battery Can be withstand the temperature -10°C~55°C
Battery Circulation life over 1500 times, It means that the battery lifetime usually can be over 8-12 years

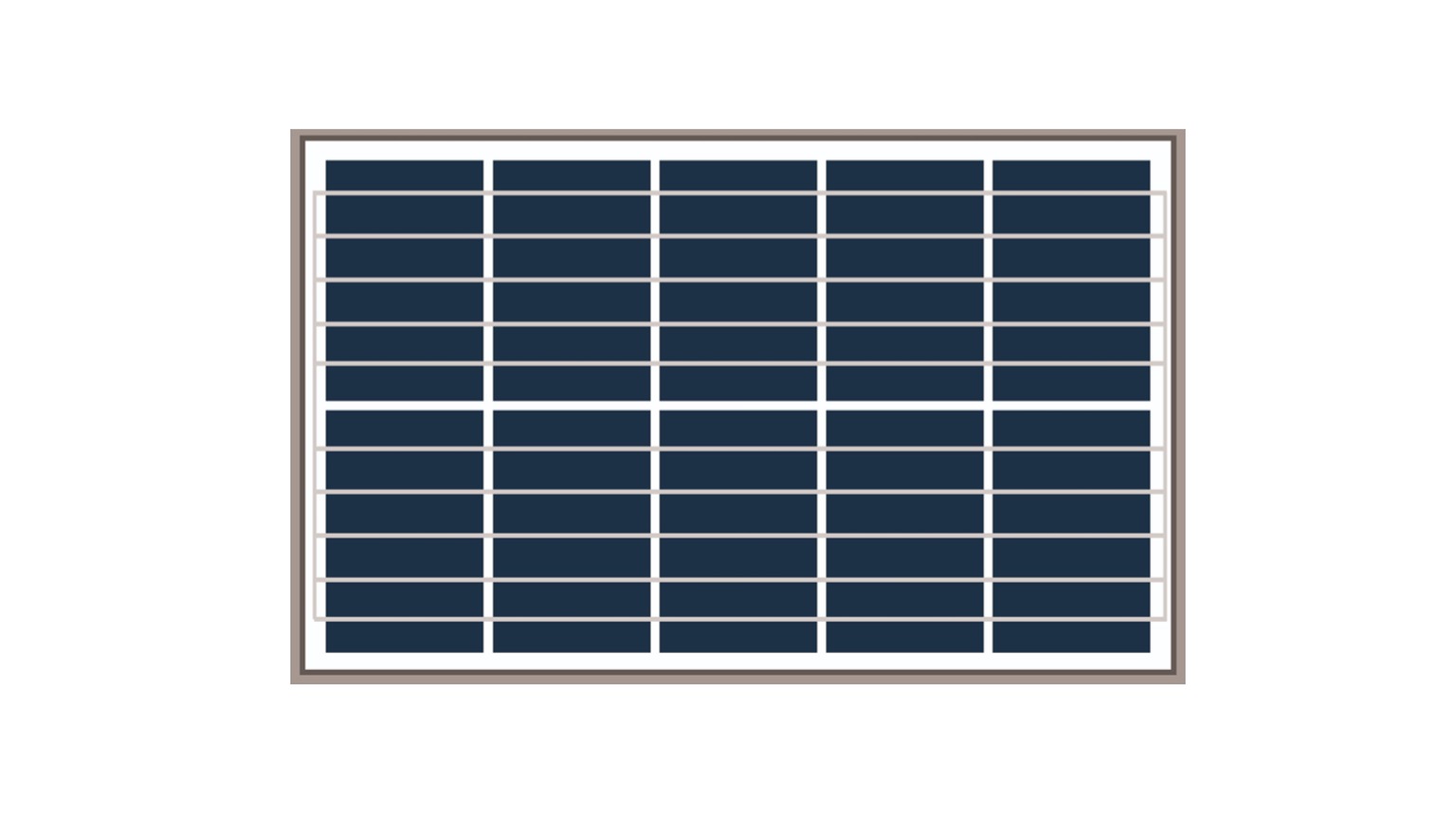

What kind of solar panel we can use for the solar flood lights?
For the noraml product we mainly use monosilicon solar panel with PERC techonogy
The solar panel transfer efficiency reach 21%~23%
We will use professional waterproof female and male connector connection wires with LED Flood Light, this is very easy and conveient processe.

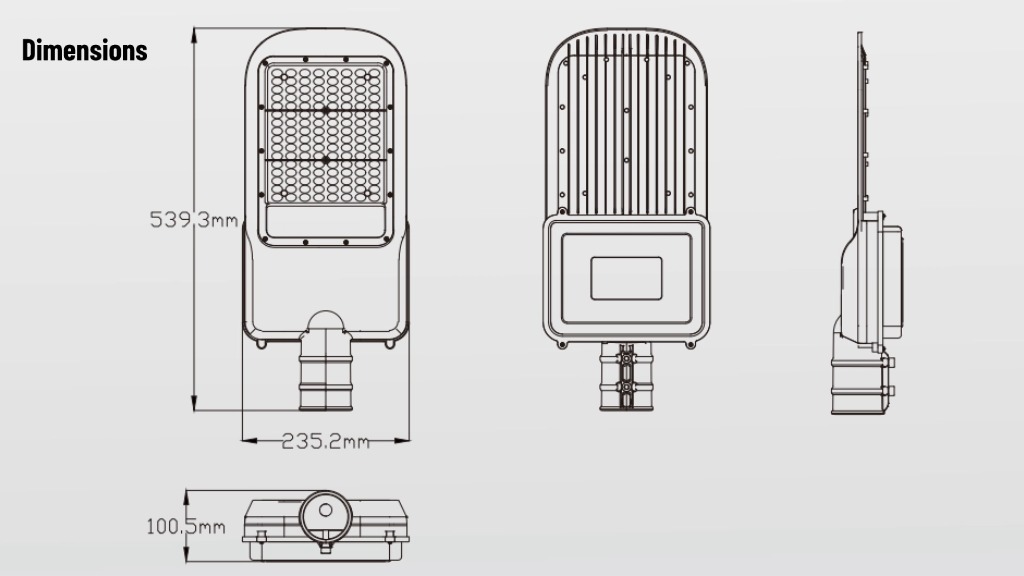

Solar Street light Dimensions
Lamp body: 539.3*235.2*100.5MM

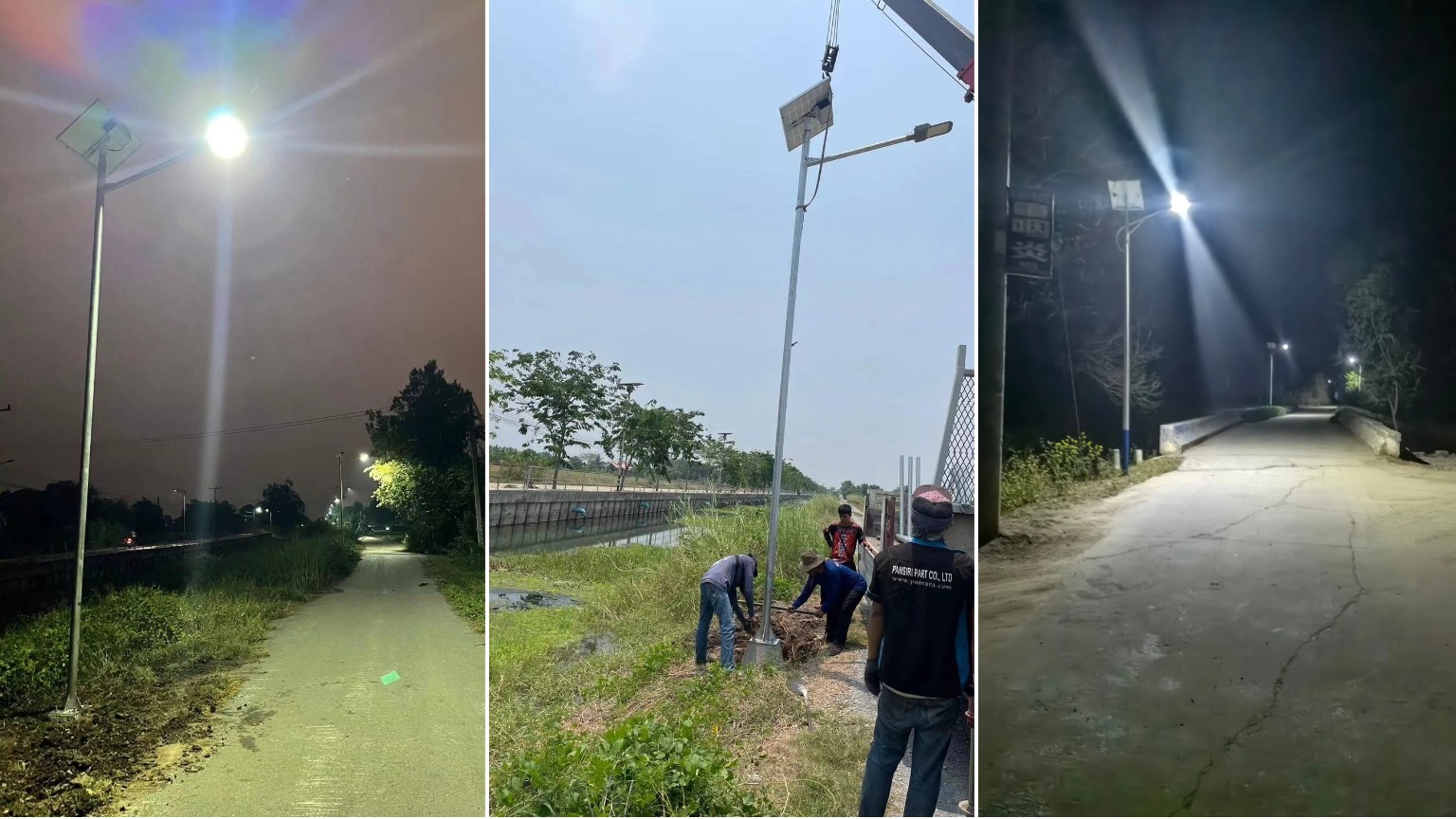

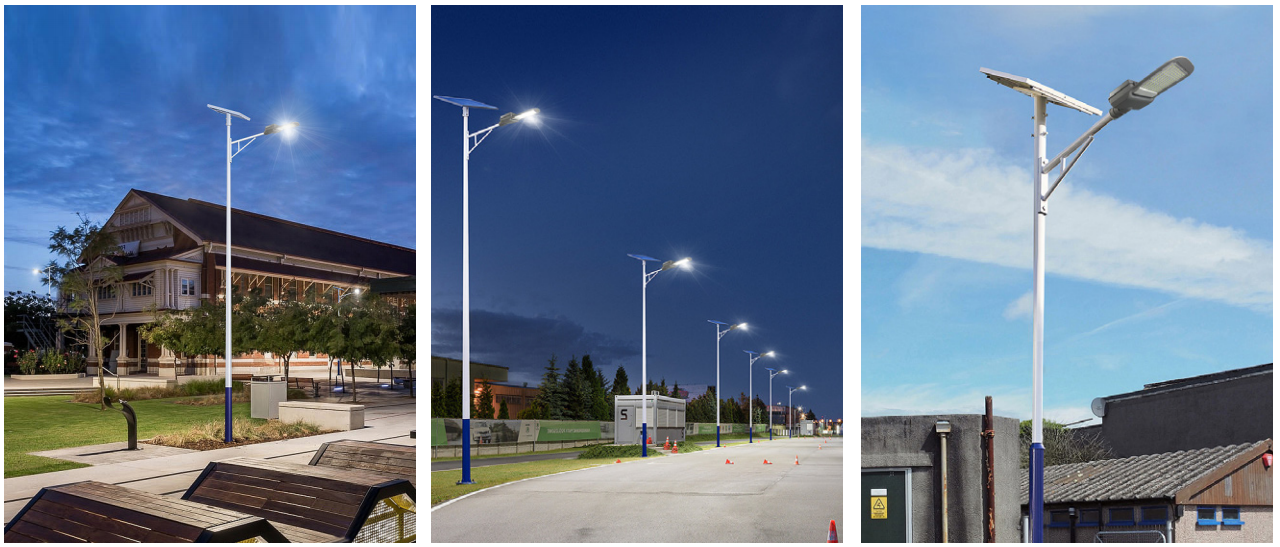

Solar Street light widely application
Residential Areas
City Parks and Squares
School Zones and Parking Lots
Highways and Rural Roads
Street Intersections
Bridges and Tunnels
Solar Street light are widely used in residential commnuities to provide safe and eco-friendly lighting at night
Them are prefect solution for rural and remote areas where extending the tranditional power grid is diffiuclt or too expensive
If you request very high brightness solar street light, and long time lighting, this model is your good choices
Performance & Efficiency
Q: How long can it work during cloudy/rainy days?
A: Standard version supports 3-5 cloudy days (extendable with larger battery upgrades).
Q: Does snow affect solar panel performance in winter?
A: Tilted design (30°-45°) + IP65 waterproof ensures snow slides off automatically.
Q: What’s the lifespan of the LED light?
A: 50,000+ hours (over 10 years with daily 10-hour usage).
Installation & Setup
Q: Does it require wiring or trenching?
A: No wiring needed! Independent solar power system—easy to install anywhere.
Q: What’s the recommended pole height?
A:
6m pole → Roads, highways (20-30m illumination)
3-4m pole → Residential areas, gardens (10-15m coverage)
Q: Can the solar panel be installed separately?
A: Yes! Panel can be mounted up to 10m away (ideal for shaded areas).
Battery & Charging
Q: What battery type is used?
A: Lithium-ion (LiFePO4) – 5-8 years lifespan, faster charging, and deep-cycle resistant.
Q: How long to fully charge the battery?
A: 6-8 hours under direct sunlight (varies by region).
Durability & Weatherproof
Q: Is it waterproof and rustproof?
A: IP65 waterproof rating + aluminum alloy casing – resists rain, dust, and corrosion.
Q: Can it withstand extreme temperatures?
A: -30°C to 60°C operational range (ideal for cold/hot climates).
Customization & Warranty
Q: Can I customize the light brightness or color?
A: Yes! Adjustable LED wattage (20W-100W) + warm/cool white options.
Q: What's the warranty policy?
A:3 years for the light
2 years for the battery
Q: Do you support OEM/ODM services?
A: Yes! Custom branding, power, sizes, and smart features (motion sensor, remote control).
