30W-150W LED Street Lamp Fixed angle economic design
Die Cast Aluminum material
Tool Free removable driver cover
LED Street lamp LEDs brand; Cree, Lumileds, Osram Bridgelux , Sanan Epistar
Drivers: Philips, Invertronics, Moso, Meanwell, Sosen
AC85~305V/50-60Hz
30°/60°/90°/120°/T2/T3 meet different road lighting
3000K/4500K/6500K
CRI>80
5 Years Warranty
IP66
| Product Name | led street/60 w led street light/led street light 60 watt price | ||||
| Item No. | DLD-SHB-40W | DLD-SHB-60W | DLD-SHB-100W | DLD-SHB-150W | DLD-SHB-200W |
| Input Watt | 40W | 60W | 100W | 150W | 200W |
| LEDs | 3030/40PCS | 3030/60PCS | 3030/120PCS | 3030/150PCS | 3030/215PCS |
| Dimensions(mm) | 330*150*65 | 375*150*65 | 525*180*75 | 650*260*95 | 700*290*120 |
| Efficiency | >130-140lm/w | >130-140lm/w | >130-140lm/w | >130-140lm/w | >130-140lm/w |
| Input Voltage | AC85-305V/50-60Hz | ||||
| LEDs brand | Cree, Lumileds, Osram Bridgelux , Sanan Epistar | ||||
| Driver Brand | Philips, Invertronics, Moso, Meanwell, Sosen | ||||
| IK Level | IK08 | ||||
| Power Factor | 0.95 | ||||
| Color Temperature | 3000K/4500K/6500K for led street lamp | ||||
| Material | Die Cast Aluminum & Tempered Glass | ||||
| IP Grade | IP65 | ||||
| Warranty | 5 Years | ||||
• Led street lamp provide 5 size housing have 40W 60 W 100W 150W 200W
• New excellent thermal radiation and build-in imported breather design, outstanding for lower lighting decay
• Light Efficiency can reach 130-140lm/w
• LED Street Lights projects have 30°/60°/90°/120°/T2/T3 meet different road lighting
• High quality LEDs chips, driver ( 0-10V/ DALI/programmed upon requests) 10KV / 20KV spd for option
• Can choose Photocell, Shorting cap, Motion sensor, Nema socket(3/5/7 pins), Smart Controller, Cut-iff connerctor
• Can provide different brand leds like Lumileds, Osram, Epistar, Bridgelux, Sanan etc
• Can provide different brand driver like Philips, Meanwell, Inventronics, Moso, Sosen etc
• Tool free maintenance

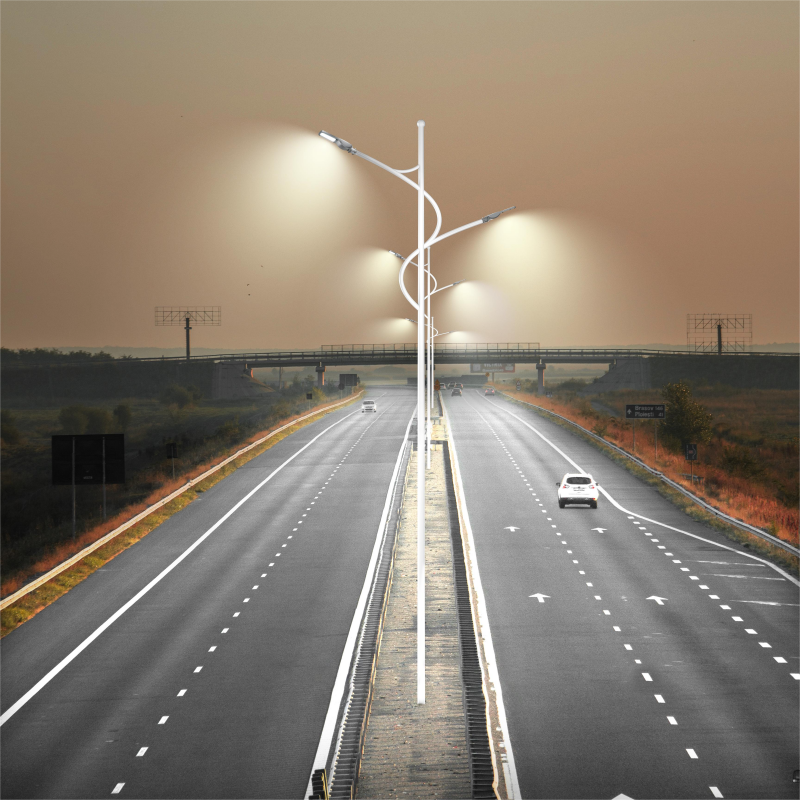

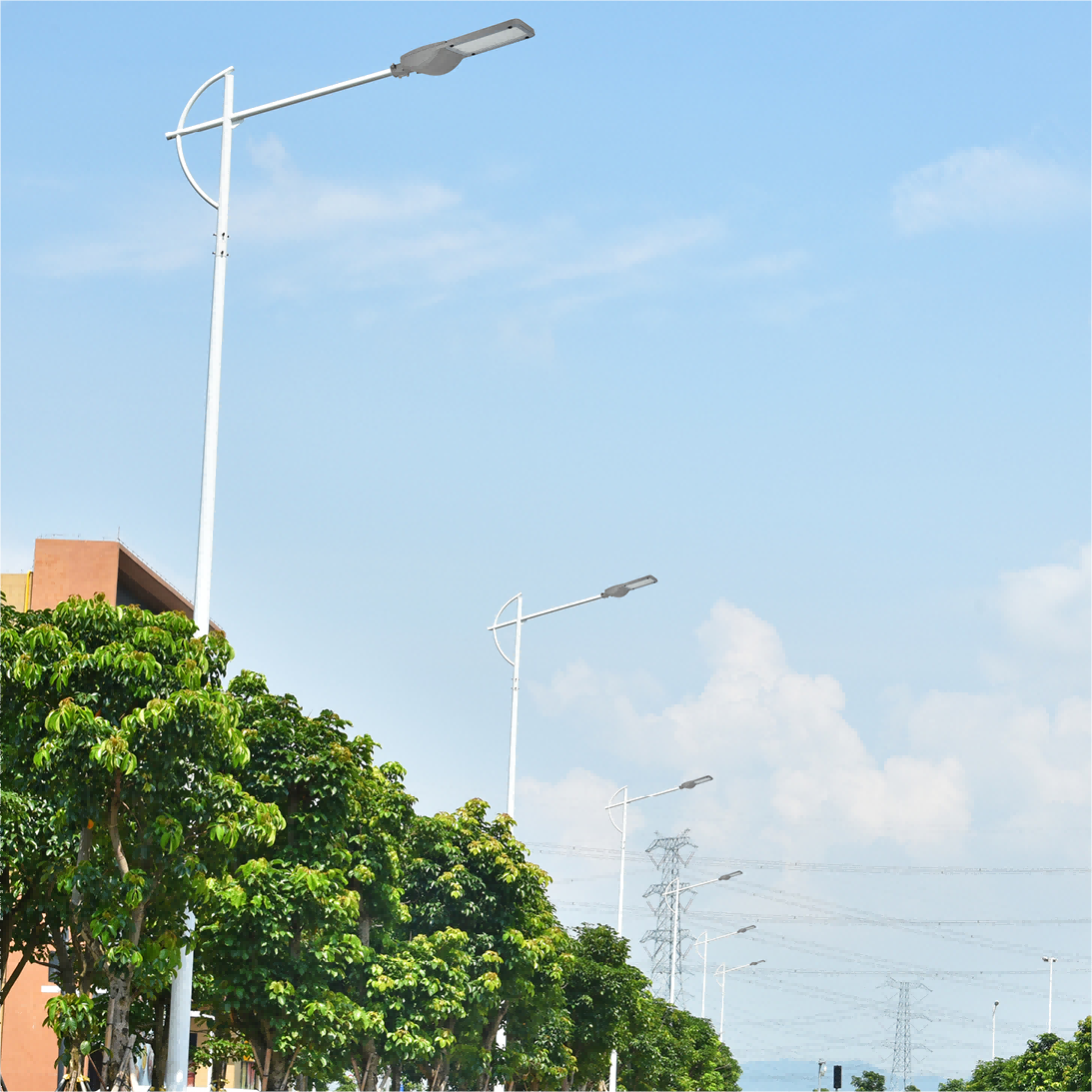

• LED Street lamp widely applicable to residential street lights, road, highway, parks, plazas and villas
