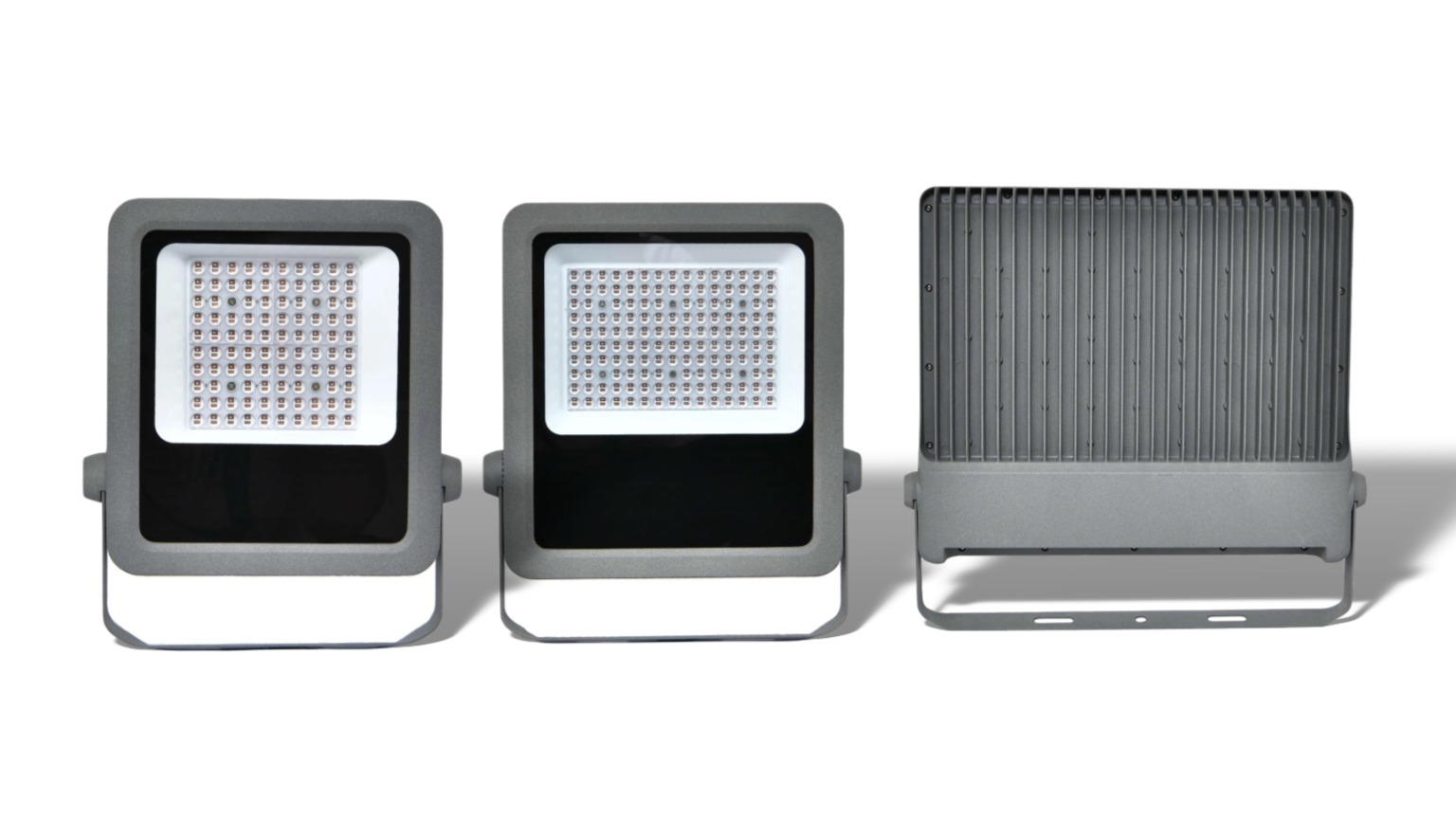

DLD-FHG 50W-600W High power LED flood light for industrial waterproof
-Die cast aluminum housing & tempered glass
-Brand Driver based on 5 years warranty
-Lumileds /Sanan / Epsitar /Bridgelux LED
-AC100-277V/50-60Hz
-3000K/4500K/6500K
-CRI>70/80
-5 Years Warranty
-IP66
| Product Name | outdoor flood light | ||||||
| Item No. | DLD-FHG-50W | DLD-FHG-100W | DLD-FHG-150W | DLD-FHG-200W | DLD-FHG-300W | DLD-FHG-400W | DLD-FHG-600W |
| Input Watt | 50W | 100W | 150W | 200W | 300W | 400W | 600W |
| LEDs | 3030/72PCS | 3030/144PCS | 3030/216PCS | 3030/288PCS | 3030/432PCS | 3030/576PCS | 3030/1080PCS |
| Dimensions(mm) | 263*224*45 | 315*269*50 | 370*322*56 | 416*352*58 | 481*408*60 | 490*520*65 | 628*534*70 |
| Efficiency | >130~180LM/W | ||||||
| Input Voltage | AC100-277V/50-60Hz | ||||||
| LEDs brand | Lumileds3030 /Sanan | ||||||
| Beam angle | 30º/60º/90º | ||||||
| Power Factor | 0.98 | ||||||
| Color Temperature | 3000K/4500K/6500K | ||||||
| Material | Die Cast Aluminum &Termpered Glass & PC lens | ||||||
| IP Grade | IP66 | ||||||
| Warranty | 5 Years | ||||||
Powerful and Reliable High power LED Flood light (50-600W for stadium and industrial use
Upgrade your outdoor lighting with our DLD-FHG series high power flood light, engineered for maximum performance and durability, Available have power outputs 50W 100W 150W 200W 300W 400W 600W , this outdoor flood light designed for high qulaity, real stable wattage, especially for high temperature places or country, which adopt thickness die cast aluminum housing with good heat dissipation solution
As a high quality industrial flood light and stadium light, we use high efficiency lumileds leds chips, and used brand driver, like philips, meanwell, Done, Moso etc, and provide different beam angles 30°, 60° 90° /70*140° etc meet different projects, this waterproof flood light can pass IP66 waterproof, IK10 standard, and provide solution for the client which have high standard projector.
This high power flood light provide 5 years warranty, we will arrange to send spare componets which easy damaged for repair, you don't need worry about the after sales services.
50W-600W High power flood light for stadium and industrial use

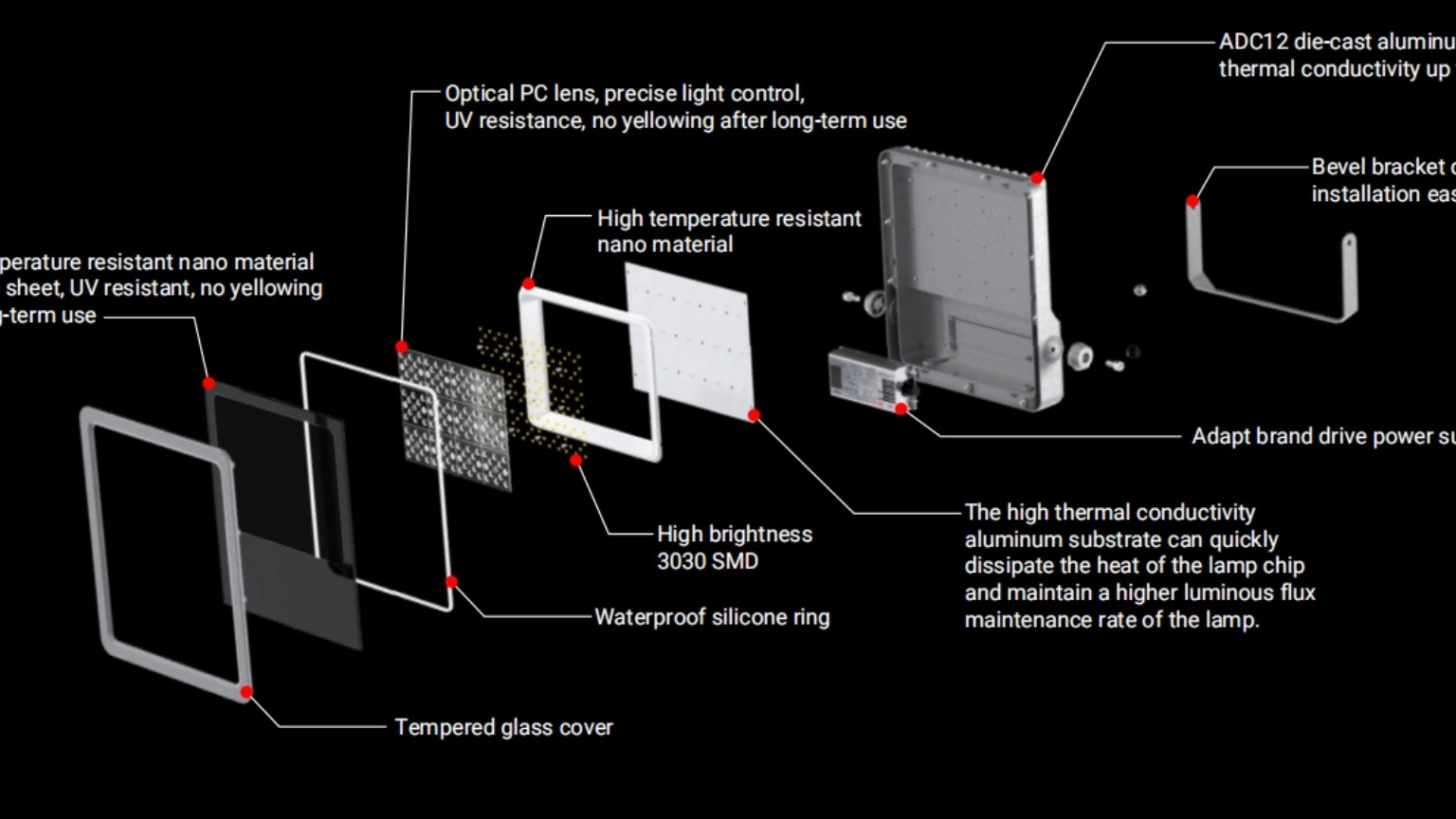

This led flood light material is ADC12 die cast aluminum housing, thermal conductivity up to 96W/M.K and optical lens, precise light control, UV resistance, no yellow after long time use, High tmperature resistance Nano material reflective sheet, UV resistance, High brightness 3030 SMD, Tempered glass cover
Adopt the brand led driver solution, such as philips, meanwell, Done and Moso driver etc, can provide 5 years warranty

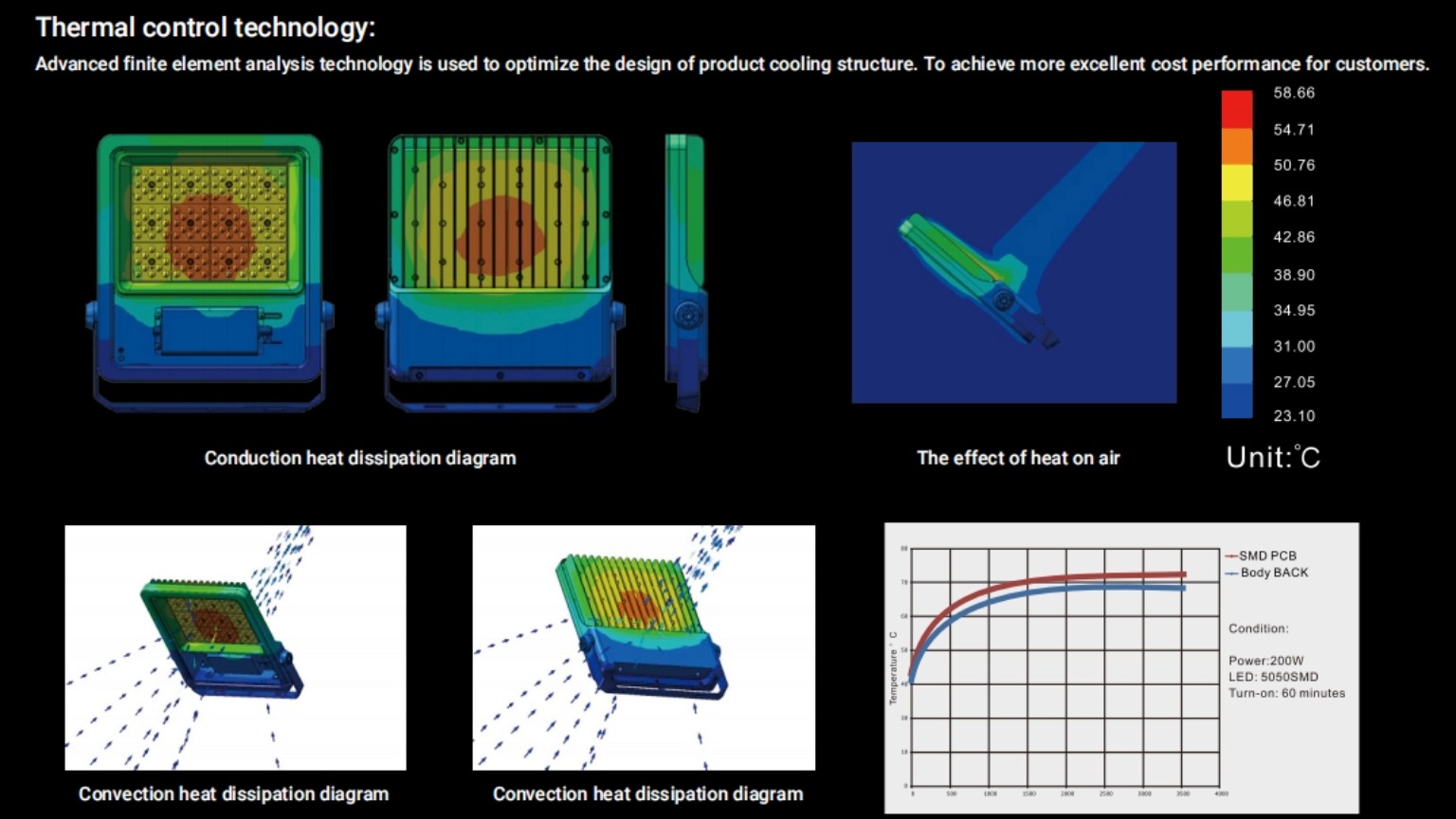

It is core factors that affect the led street lamp lifespans have three parts: LEDs, power supply and heat dissipation structures:
So it is very importanct for the housing dissipation design, if the housing have good dissipation, LEDs temperatures will be more lower, so street light keeps longer lifespan.
We will consider the housing weight, constructures, heat fins, thickness, and spaces, heat conductivity coefficient and many different factors, and use maximized ultilization of natural convection for heat disspation to prolong the lifespan.
Before lanuch the new design, we will make a lot of testing for the temperature and keep the finished products have assuring the lifespan.

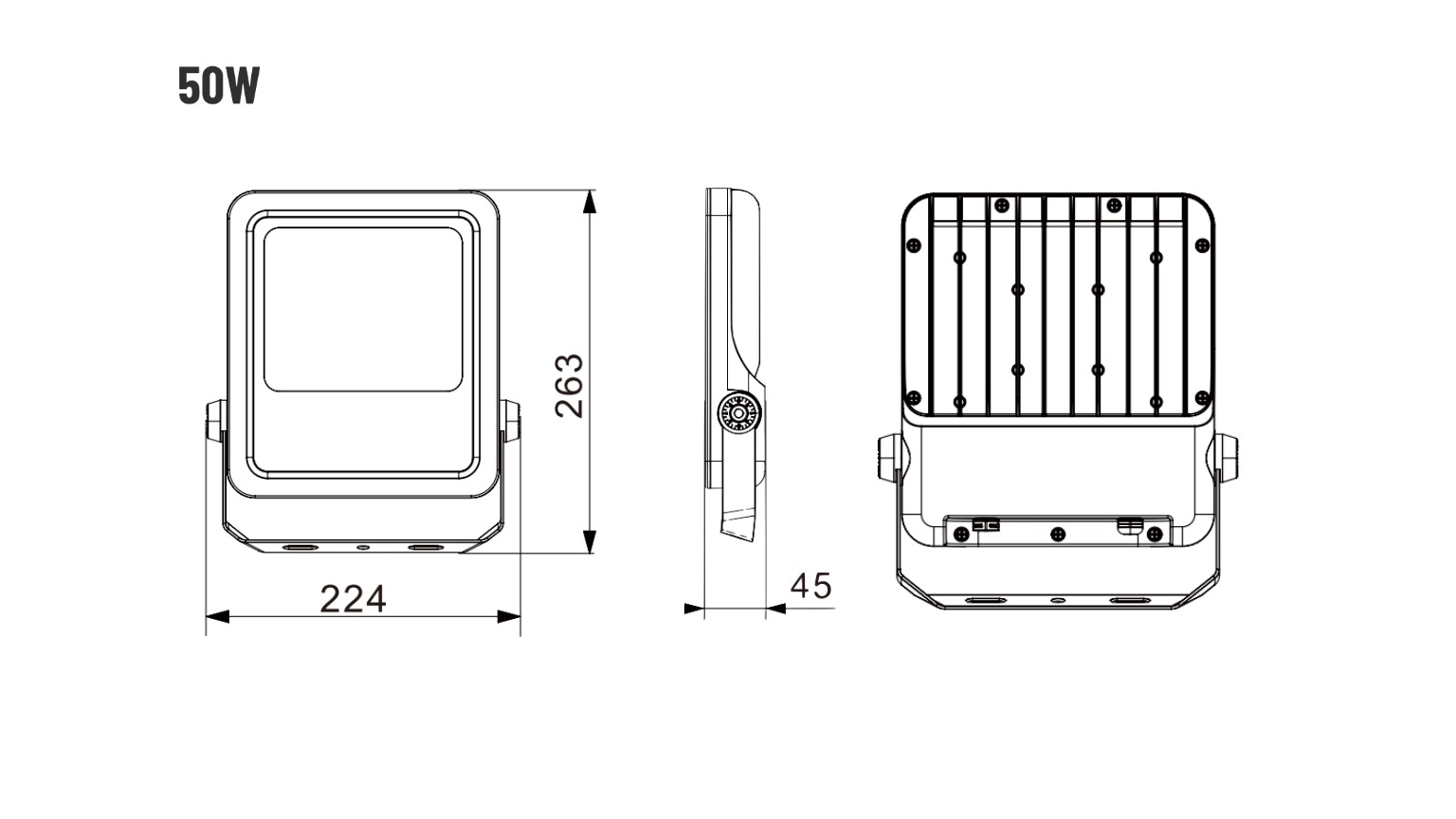

50W Flood light
Product size: 224*263*45MM
LED Chips: 3030Lumileds
Lumen: >140lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60HZ
Material: Die cast aluminum housing & PC lens & Tempered glass

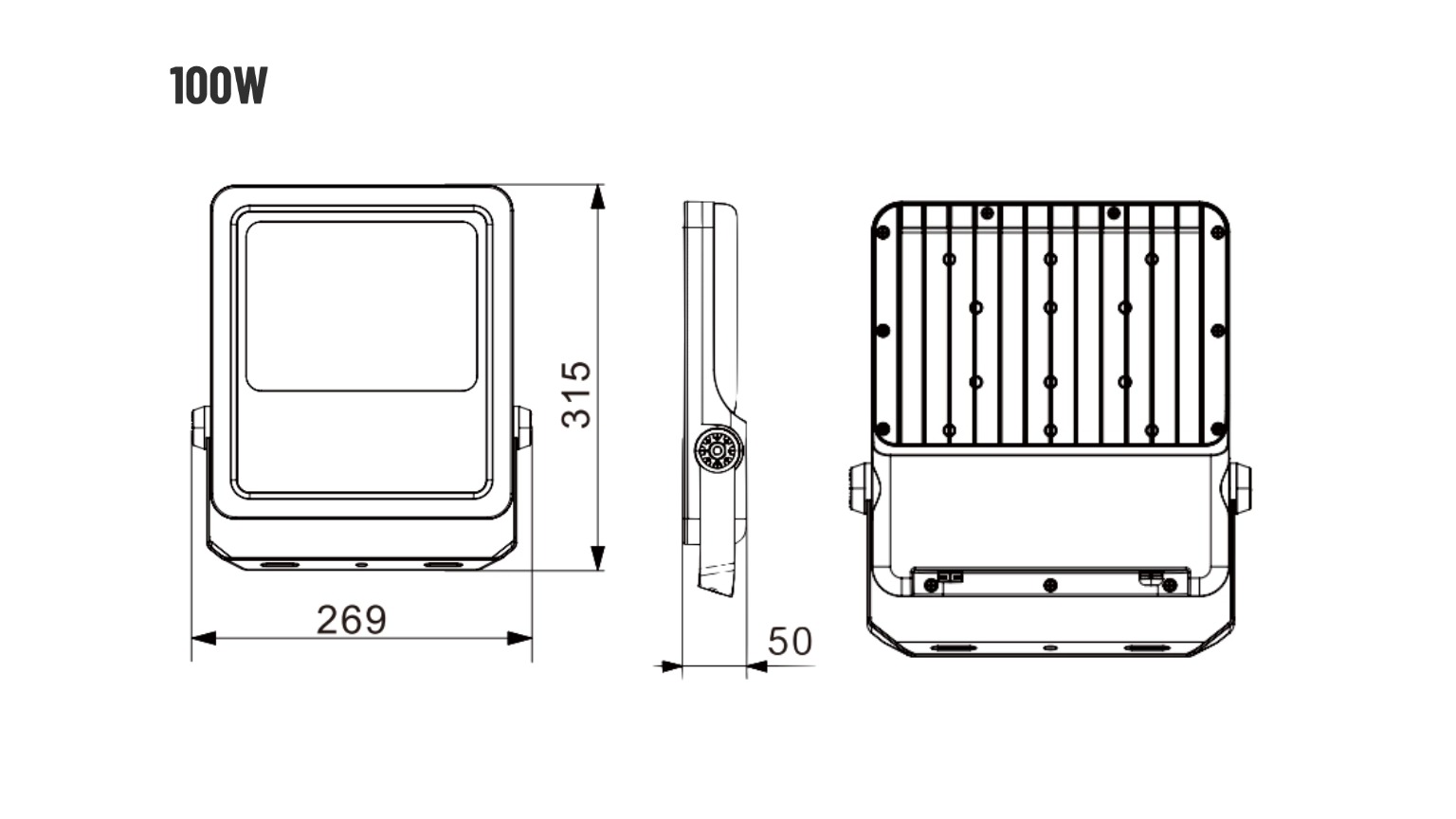

100W Flood light
Product size: 269*315*50MM
LED Chips: 3030Lumileds
Lumen: >140lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60HZ
Material: Die cast aluminum housing & PC lens & Tempered glass

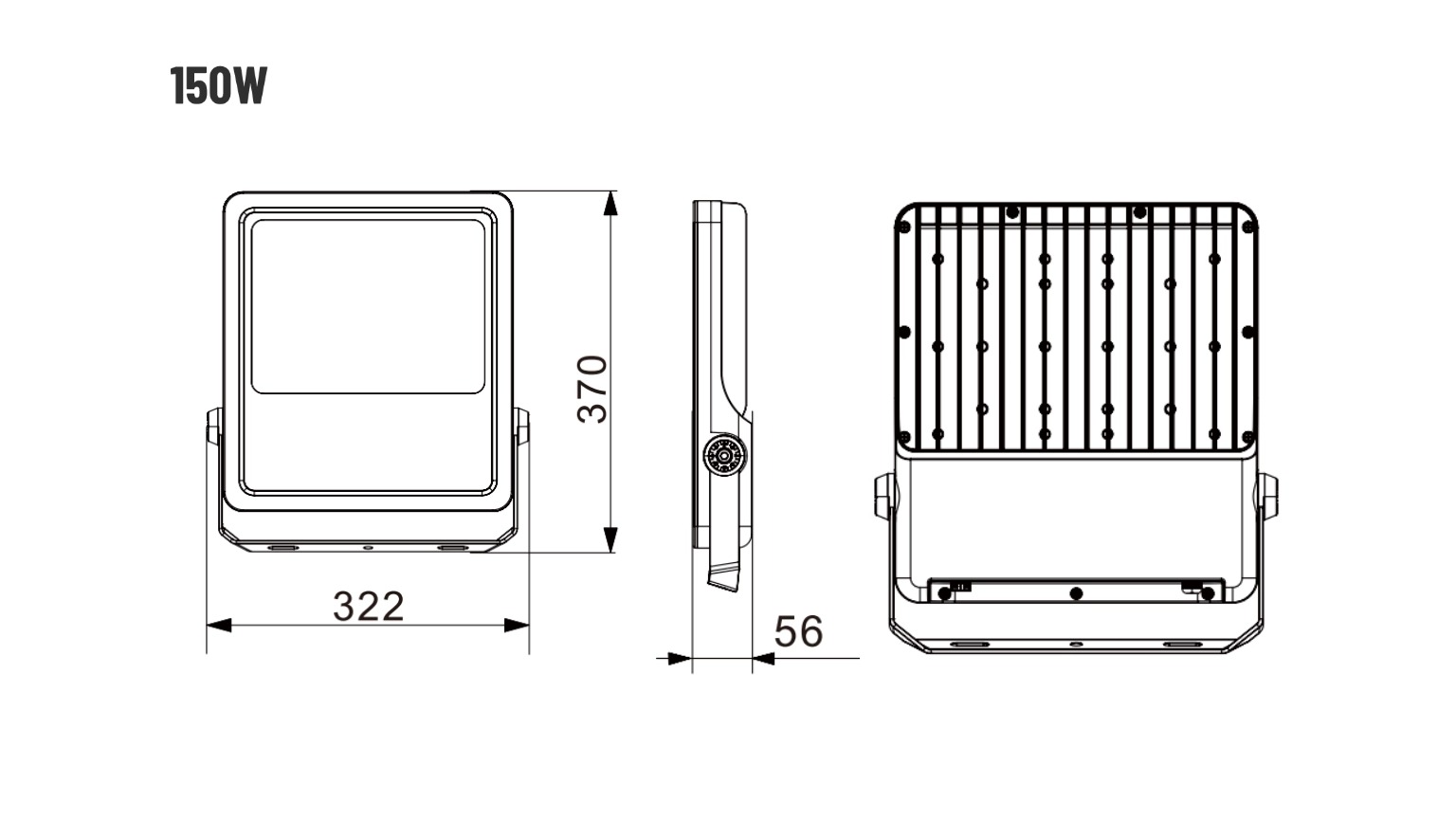

150W Flood light
Product size: 322*370*56MM
LED Chips: 3030Lumileds
Lumen: >140lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60HZ
Material: Die cast aluminum housing & PC lens & Tempered glass

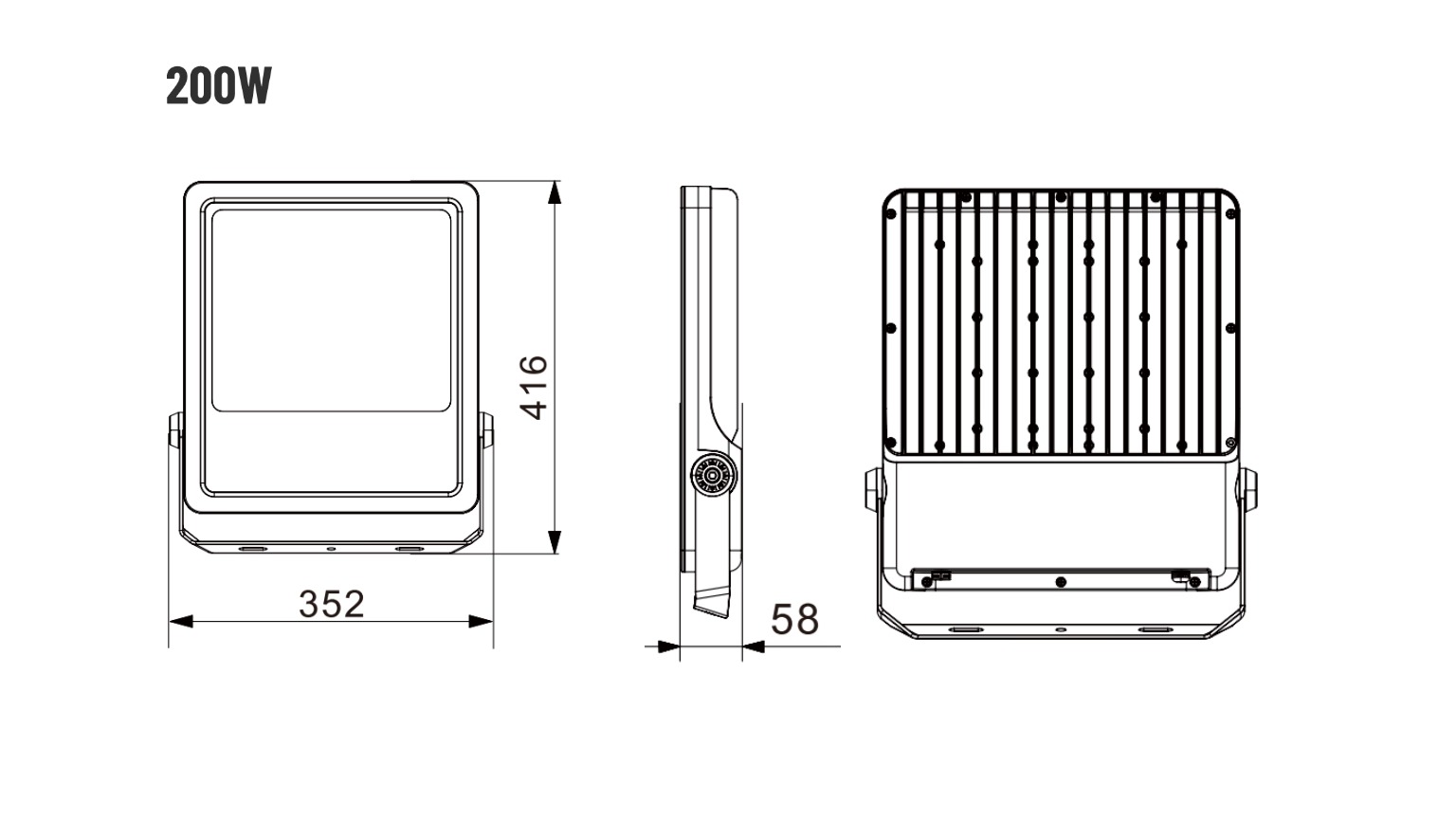

200W Flood light
Product size: 352*416*58MM
LED Chips: 3030Lumileds
Lumen: >140lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60HZ
Material: Die cast aluminum housing & PC lens & Tempered glass

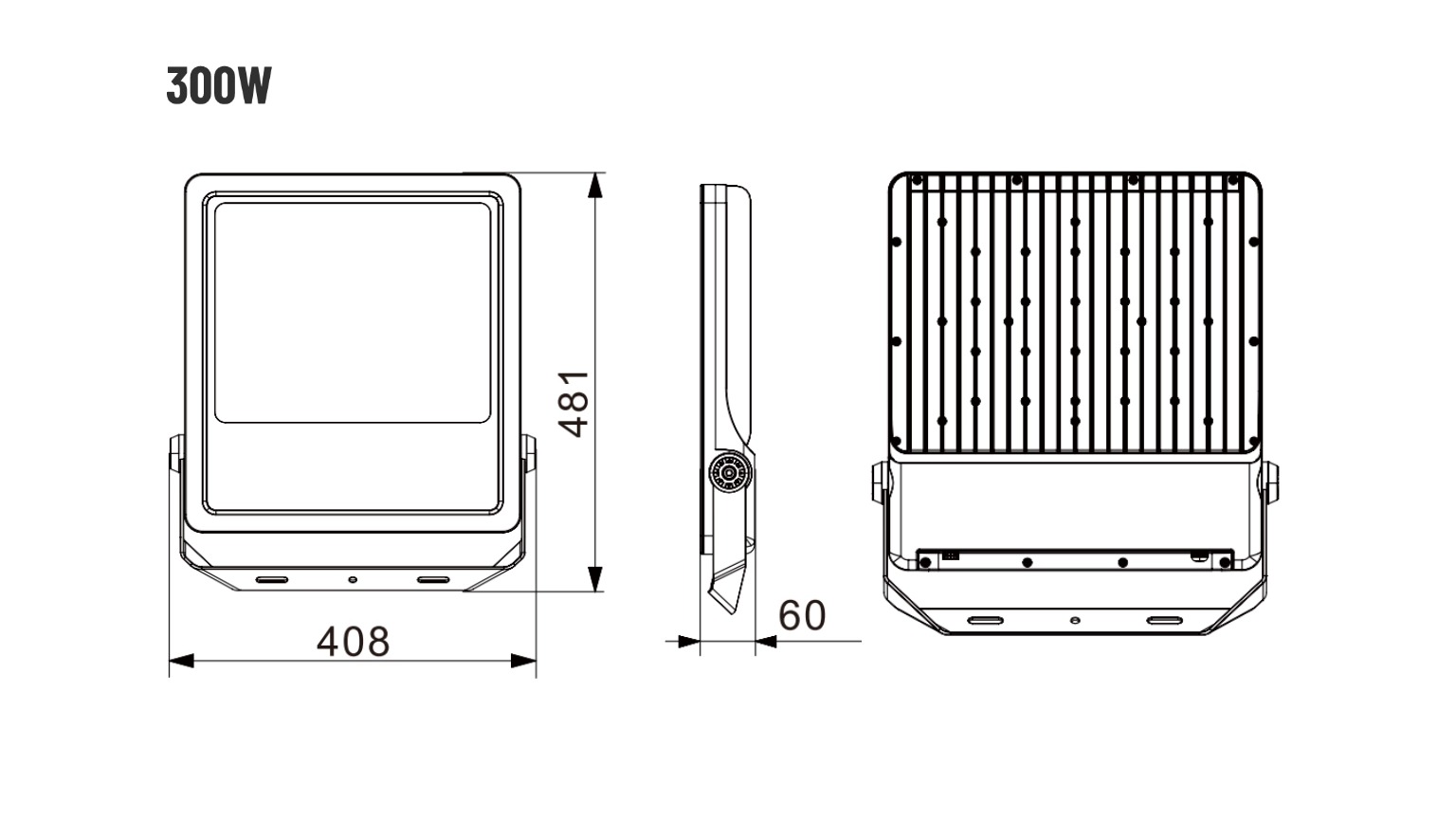

300W Flood light
Product size: 408*481*60MM
LED Chips: 3030Lumileds
Lumen: >140lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60HZ
Material: Die cast aluminum housing & PC lens & Tempered glass

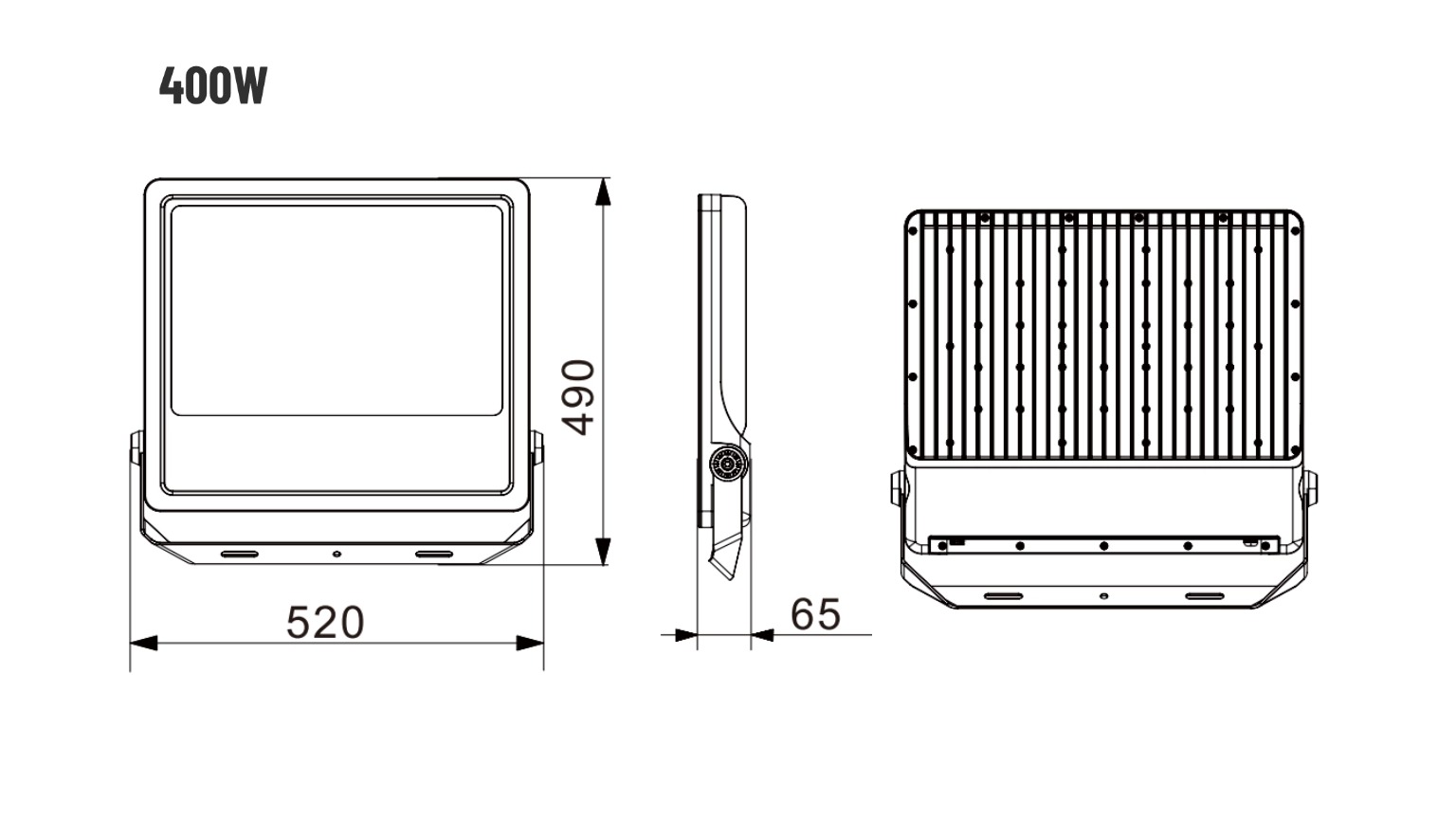

400W Flood light
Product size: 520*490*65MM
LED Chips: 3030Lumileds
Lumen: >140lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60HZ
Material: Die cast aluminum housing & PC lens & Tempered glass
Instead of fast food fashion concept, vetiver is based on the idea of the wearer, not limited to the scope of age or season. At every time of the day, every region and every place can freely change and connect smoothly. Vetiver skillfully combines leisure style and soft multi-functional materials to create a clothing piece valued by fearless and confident women.
Our take on the modern prairie dress, the sweet Vetiver dress has a v-neckline, fitted bodice, and puff sleeves with 3/4 length smocked cuffs. The romantic sleeves are beautifully complimented by the ruffled tier finishing the hem. She is oh so perfect for summertime picnics or just frolicking in the dappled sunshine.
Instead of fast food fashion concept, vetiver is based on the idea of the wearer, not limited to the scope of age or season.

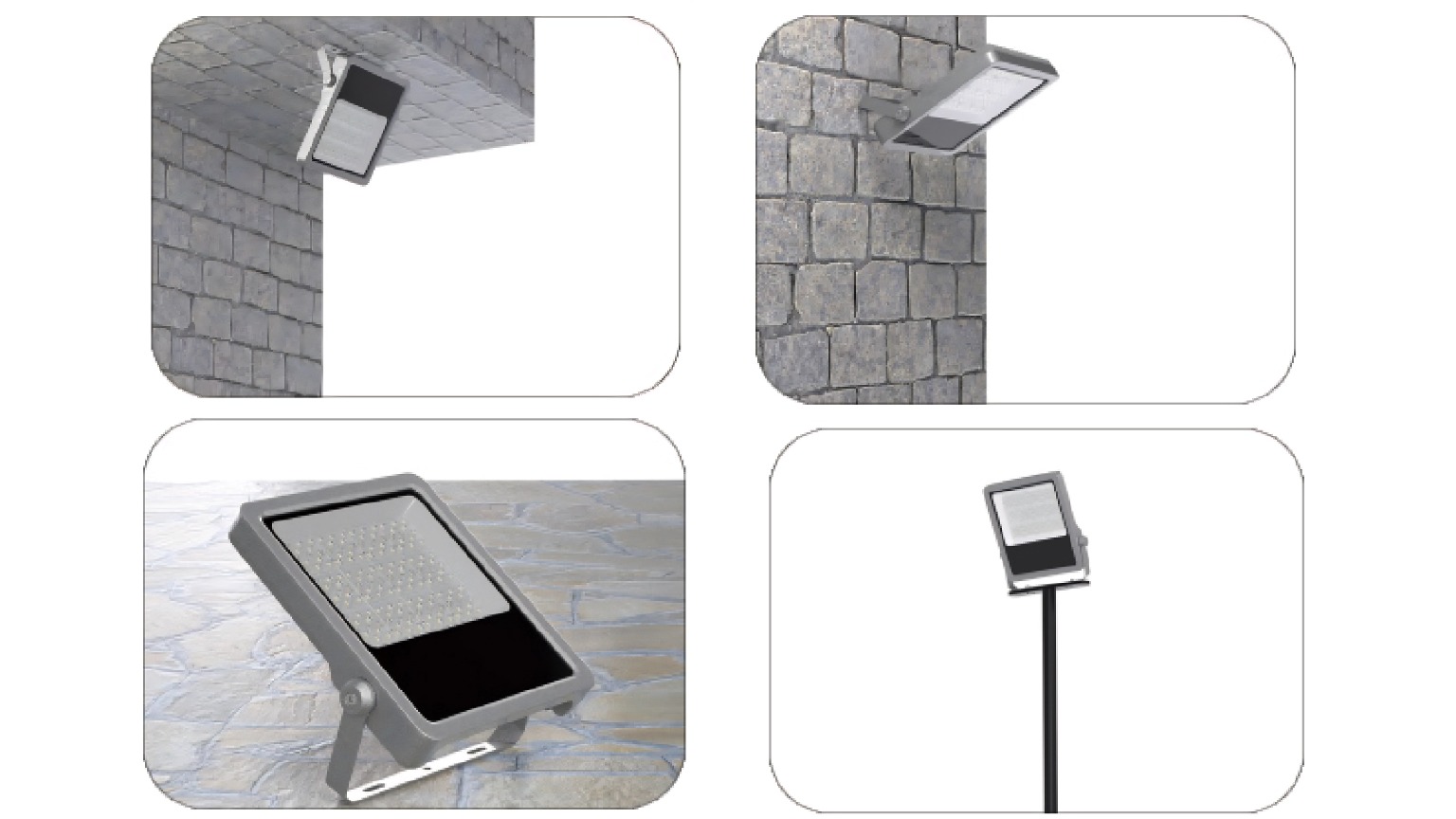

Outdoor Flood light Widely Application:
- Outdoor building
- Stadium sport places
- Garden and park
- Factory
- School sports
- Industrial Area
- Residential area
- Architectural building

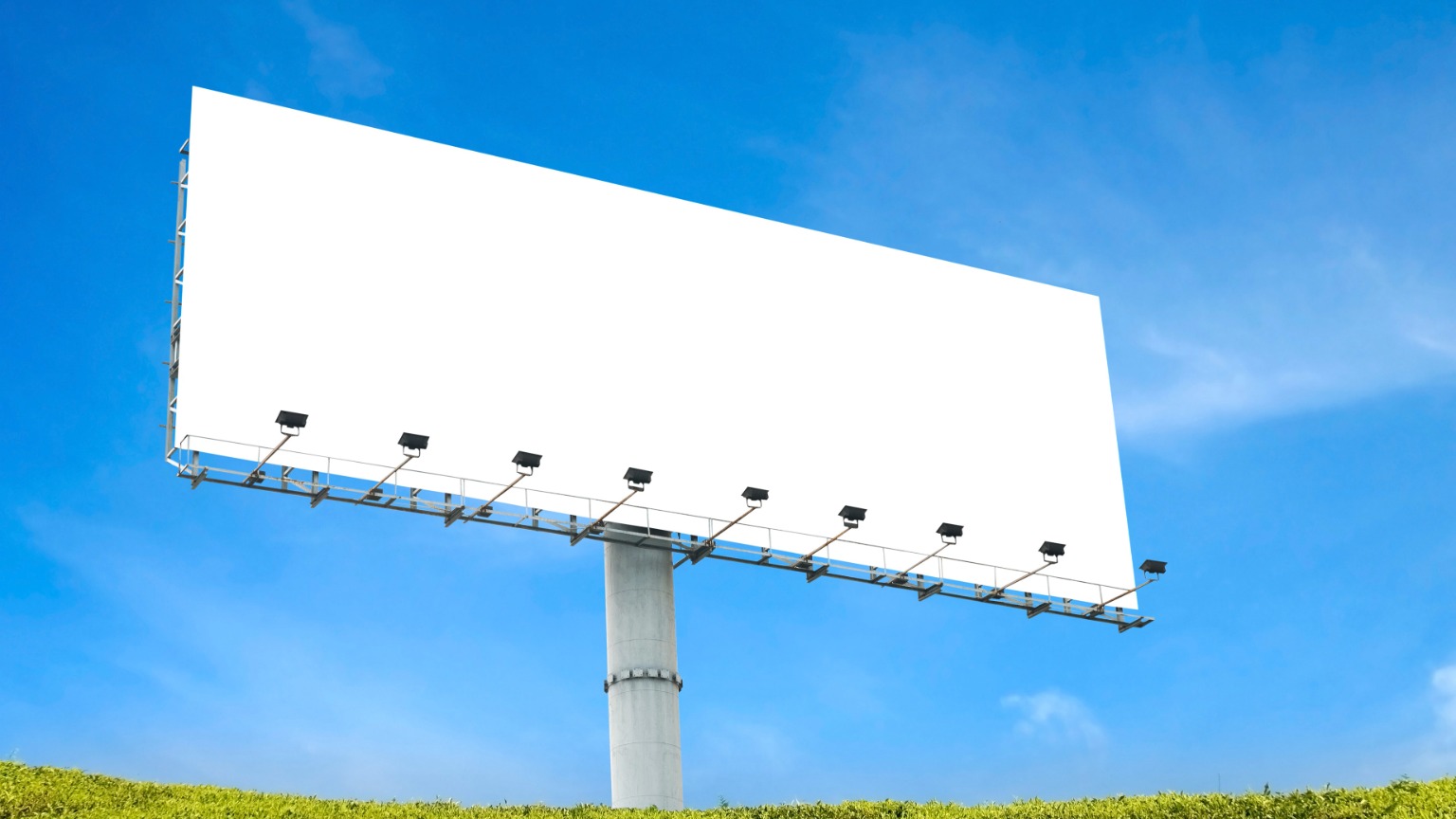

- Billboard Place
- Square Lighting
A: DLD-FHG series outdoor flood light we mainly use Lumileds 3030 chip, however Sanan, Bridgelux and Epsitar brand can be provided, only the price is different, just contact us for further confirmation
Q: What is the mainly Color temperature for the industrial flood Light?
A: 4500K 6500K is our mainly color temperature and also the most popular color temperature, however we can customized other color temperature.
Q: What is the lumen efficacy?
A: This model waterproof flood light lumen can reach >140lm/w, but also can be customized for more higher.
Q: What is the IP rating?
A: This model outdoor flood light can pass IP66, due to good design structure.
Q: Can you provide the IES files and optical distribution details?
A: Yes sure, we can provide IES file, as we have our own dark room for testing them
Q: What mainly certification do you have?
A: For the factory, we have ISO9001 certification, For the products we can provide CE ROHS certification
Q: What is the typical Color Rendering Index?
A: Usually this model provide 70 or 80 CRI
Q: What mainly certification do you have?
A: For the factory, we have ISO9001 certification, For the products we can provide CE ROHS certification
Q: What is the warranty for outdoor flood light?
A: We provide warranty as we promised time, the time from receiving the goods to the agreed time, if any quality problem, we will try our best to help solve, we will testing what is the real reason, and will send free accessories or finished products for compensation
Q: Do you provide OEM/ ODM series?
A: Certainly, we are professional manufacturer for led street lamp, we have more than 15years experience and also we have 6 die cast aluminum machines, we can customized as per demands, just contact with our sales person.
Q: Do you have MOQ and sample policy?
A: Usually our regular specifications products MOQ is 50PCS, but in order to support new client, we support samples order or trial order for testing at beginning, But if the OEM customized products MOQ need to confirm with us.
Q: What is delivery time for the sample and regular order?
A: Usually for the samples item our delivery time is 7-10days, For the regular orders our delivery time 20-25days
