30W ~200W LED street light 5 years warranty IP66 IK10
Die Cast Aluminum material
LED Street lamp LEDs brand; Cree, Lumileds, Osram Bridgelux , Sanan Epistar
Drivers: Philips, Invertronics, Moso, Meanwell, Sosen
AC85~305V/50-60Hz
30°/60°/90°/120°/T2/T3 meet different road lighting
3000K/4500K/6500K
CRI>80
5 Years Warranty
IP66
| Product Name | 30W ~200W LED street light 5 years warranty IP66 IK10 | ||||
| Item No. | DLD-SHA-30W | DLD-SHA-50W | DLD-SHA-100W | DLD-SHA-150W | DLD-SHA-200W |
| Input Watt | 30W | 50W | 100W | 150W | 200W |
| LEDs | 3030/40PCS | 3030/60PCS | 3030/120PCS | 3030/150PCS | 3030/215PCS |
| Dimensions(mm) | 420*180*100 | 470*180*110 | 560*240*115 | 690*280*130 | 740*280*130 |
| Efficiency | >120lm/w | >120lm/w | >120lm/w | >120lm/w | >120lm/w |
| Input Voltage | AC85-305V/50-60Hz | ||||
| LEDs brand | Cree, Lumileds, Osram Bridgelux , Sanan Epistar | ||||
| Driver Brand | Philips, Invertronics, Moso, Meanwell, Sosen | ||||
| IK Level | IK09 | ||||
| Power Factor | 0.95 | ||||
| Color Temperature | 3000K/4500K/6500K for led street lamp | ||||
| Material | Die Cast Aluminum & Tempered Glass | ||||
| IP Grade | IP65 | ||||
| Warranty | 5 Years | ||||
• Led street light provide 3 size housing have 50W 100W 150W 200W
• New excellent thermal radiation and build-in imported breather design, outstanding for lower lighting decay
• Light Efficiency can reach 160~170lm/w
• LED Street Lights projects have 30°/60°/90°/120°/T2/T3 meet different road lighting
• High quality LEDs chips, driver ( 0-10V/ DALI/programmed upon requests) 10KV / 20KV spd for option
• Top post and side entry mounting, angle can be adjustable 15 degree for up and down
• With Nama/Zhaga socket, could work with smart-city control technology
• Can choose Photocell, Shorting cap, Motion sensor, Nema socket(3/5/7 pins), Smart Controller, Cut-iff connerctor
• Can provide different brand leds like Lumileds, Osram, Epistar, Bridgelux, Sanan etc
• Can provide different brand driver like Philips, Meanwell, Inventronics, Moso, Sosen etc
• Tool free maintenance

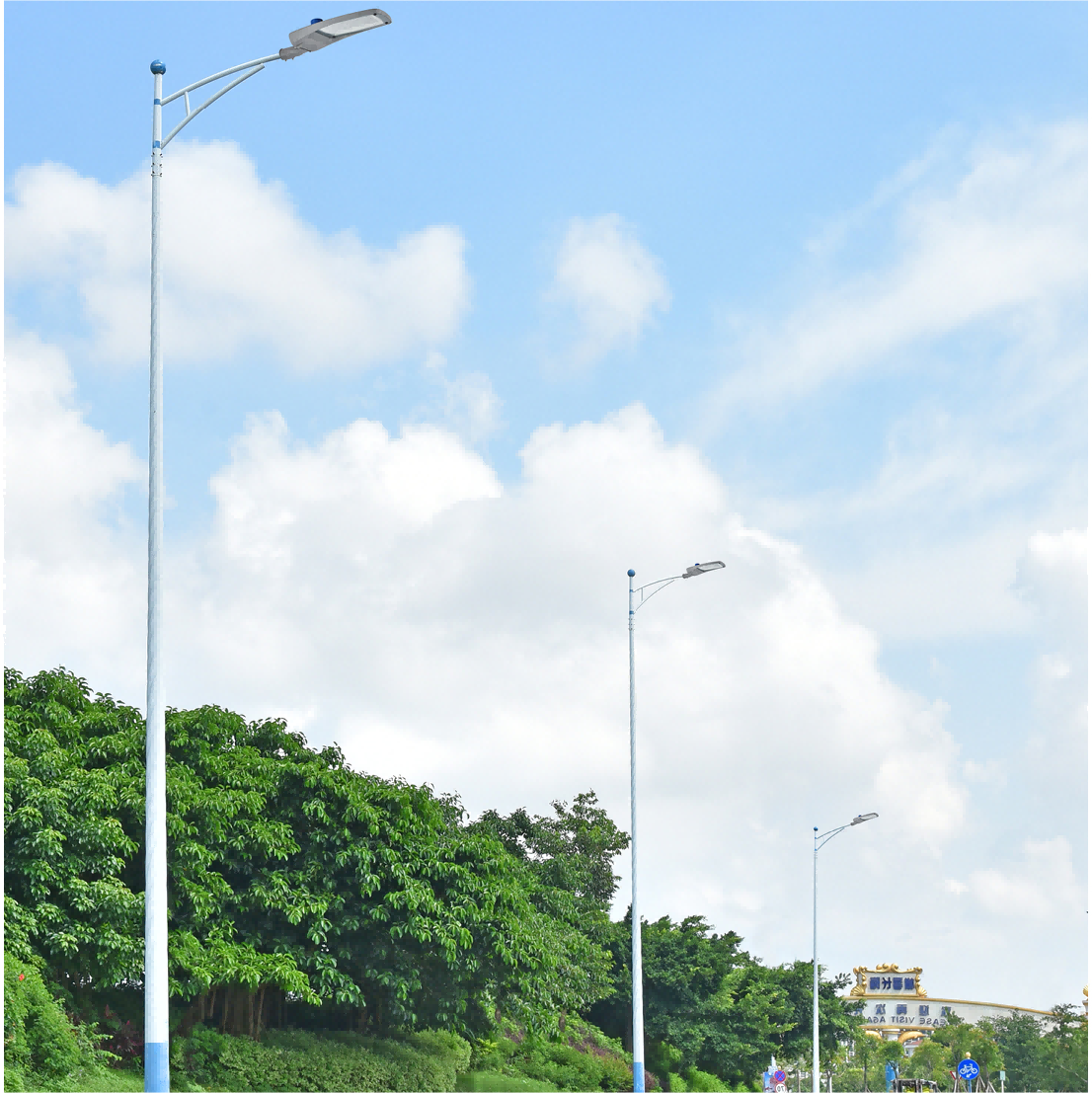

• LED Street lamp widely applicable to residential street lights, road, highway, parks, plazas and villas
