DLD-SHD LED Street Lamp | 50W-200W High-Efficiency | 150 Watt LED Street Light | 170LM/W | Smart-City Ready
Die Cast Aluminum material
Tool Free removable driver cover
LED Street lamp LEDs brand; Cree, Lumileds, Osram Bridgelux , Sanan Epistar
Drivers: Philips, Invertronics, Moso, Meanwell, Sosen
AC85~305V/50-60Hz
30°/60°/90°/120°/T2/T3 meet different road lighting
3000K/4500K/6500K
CRI>80
5 Years Warranty
IP66
| Product Name | DLD-SHD LED Street Lamp | 50W-200W High-Efficiency | 150 Watt LED Street Light | 170LM/W | Smart-City Ready | |||
| Item No. | DLD-SHD-50W | DLD-SHD-100W | DLD-SHD-150W | DLD-SHD-200W |
| Input Watt | 50W | 100W | 150W | 200W |
| LEDs | Lumileds-5050/16PCS | Lumileds-5050/48PCS | Lumileds-5050/72PCS | Lumileds-5050/96PCS |
| Dimensions(mm) | 539.7*205.5*102.85 | 669.7*255.5*103.1 | 720.2*255.5*103.1 | |
| Efficiency | >140lm/w~200lm/w | |||
| Input Voltage | AC85-305V/50-60Hz | |||
| LEDs brand | Cree, Lumileds, Osram Bridgelux , Sanan Epistar | |||
| Driver Brand | Philips, Invertronics, Moso, Meanwell, Sosen | |||
| IK Level | IK10 | |||
| Power Factor | 0.98 | |||
| Color Temperature | 3000K/4500K/6500K for led street lamp | |||
| Material | Die Cast Aluminum & Tempered Glass | |||
| IP Grade | IP65 | |||
| Warranty | 5 Years | |||
• Led street lamp provide 3 size housing have 50W 100W 150W 200W
• New excellent thermal radiation and build-in imported breather design, outstanding for lower lighting decay
• Light Efficiency can reach 160~170lm/w
• LED Street Lights projects have 30°/60°/90°/120°/T2/T3 meet different road lighting
• High quality LEDs chips, driver ( 0-10V/ DALI/programmed upon requests) 10KV / 20KV spd for option
• Top post and side entry mounting, angle can be adjustable 15 degree for up and down
• With Nama/Zhaga socket, could work with smart-city control technology
• Can choose Photocell, Shorting cap, Motion sensor, Nema socket(3/5/7 pins), Smart Controller, Cut-iff connerctor
• Can provide different brand leds like Lumileds, Osram, Epistar, Bridgelux, Sanan etc
• Can provide different brand driver like Philips, Meanwell, Inventronics, Moso, Sosen etc

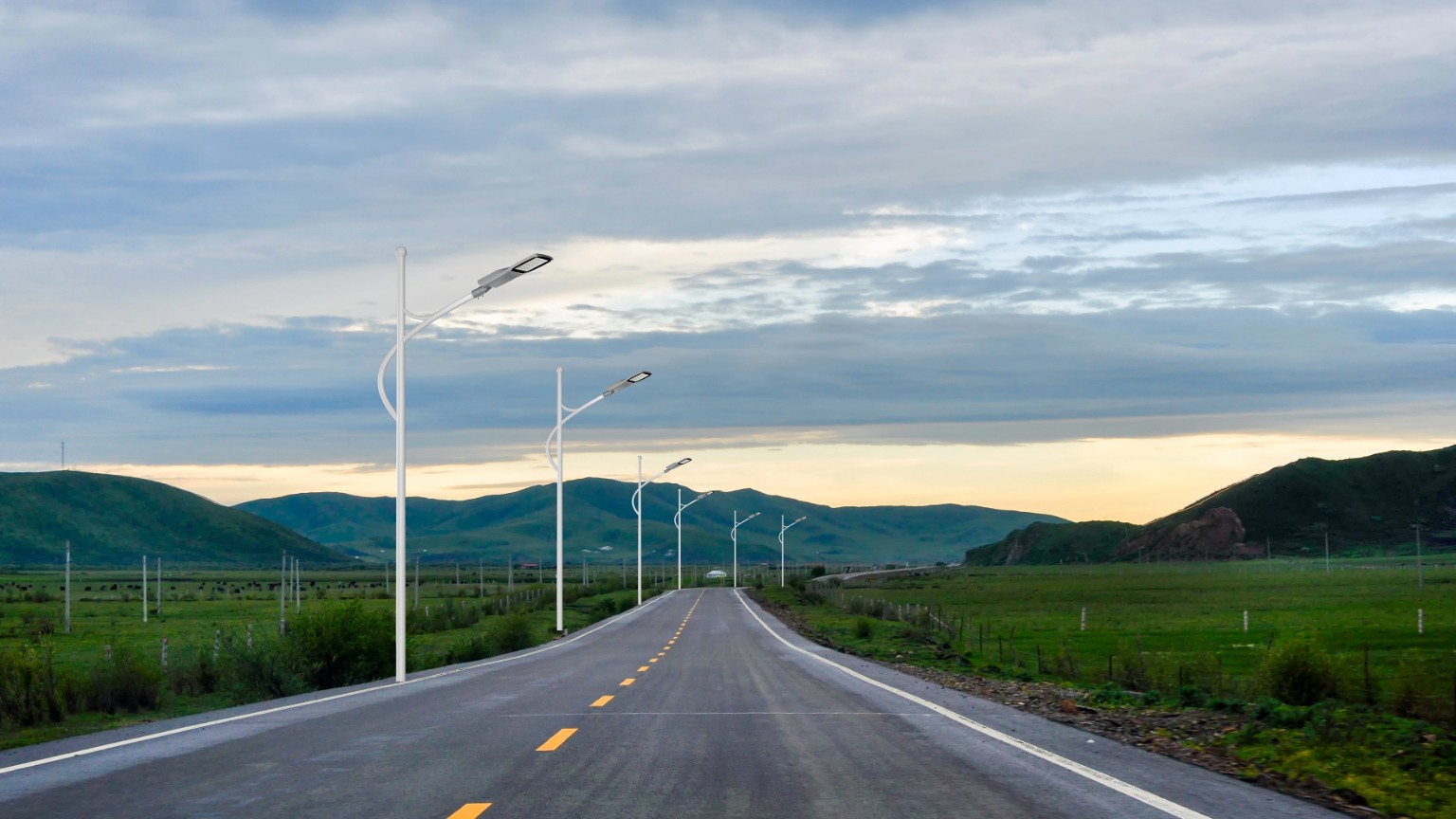

• LED Street lamp widely applicable to residential street lights, road, highway, parks, plazas and villas
The DLD-SHD LED Street Lamp series delivers superior performance with 50W, 100W, 150W, and 200W configurations, including a high-efficiency 150 watt LED street light option. Engineered for durability and smart-city integration, these LED street lamps feature:
- Ultra-High Efficiency – 160-170LM/W output for maximum energy savings and reduced operational costs.
- Advanced Thermal Design – Built-in imported breather and optimized heat dissipation ensure <3% annual light decay for long-lasting brightness.
- Smart-City Ready – Zhaga/NEMA sockets support IoT control, motion sensors, and photocells (0-10V/DALI/programmable).
- Professional Beam Options – Adjustable 30°-120° and T2/T3 distributions for compliant road lighting (EN13201).
- Robust Protection – 10KV/20KV surge protection and ±15° adjustable mounting for harsh environments.
- Customizable Components – Choose top-tier Lumileds, Osram, or Epistar LEDs and Meanwell, Inventronics, or Philips drivers.
Ideal for: Highways, urban roads, residential streets, parks, and smart-city projects requiring low-maintenance, high-performance LED street lighting.

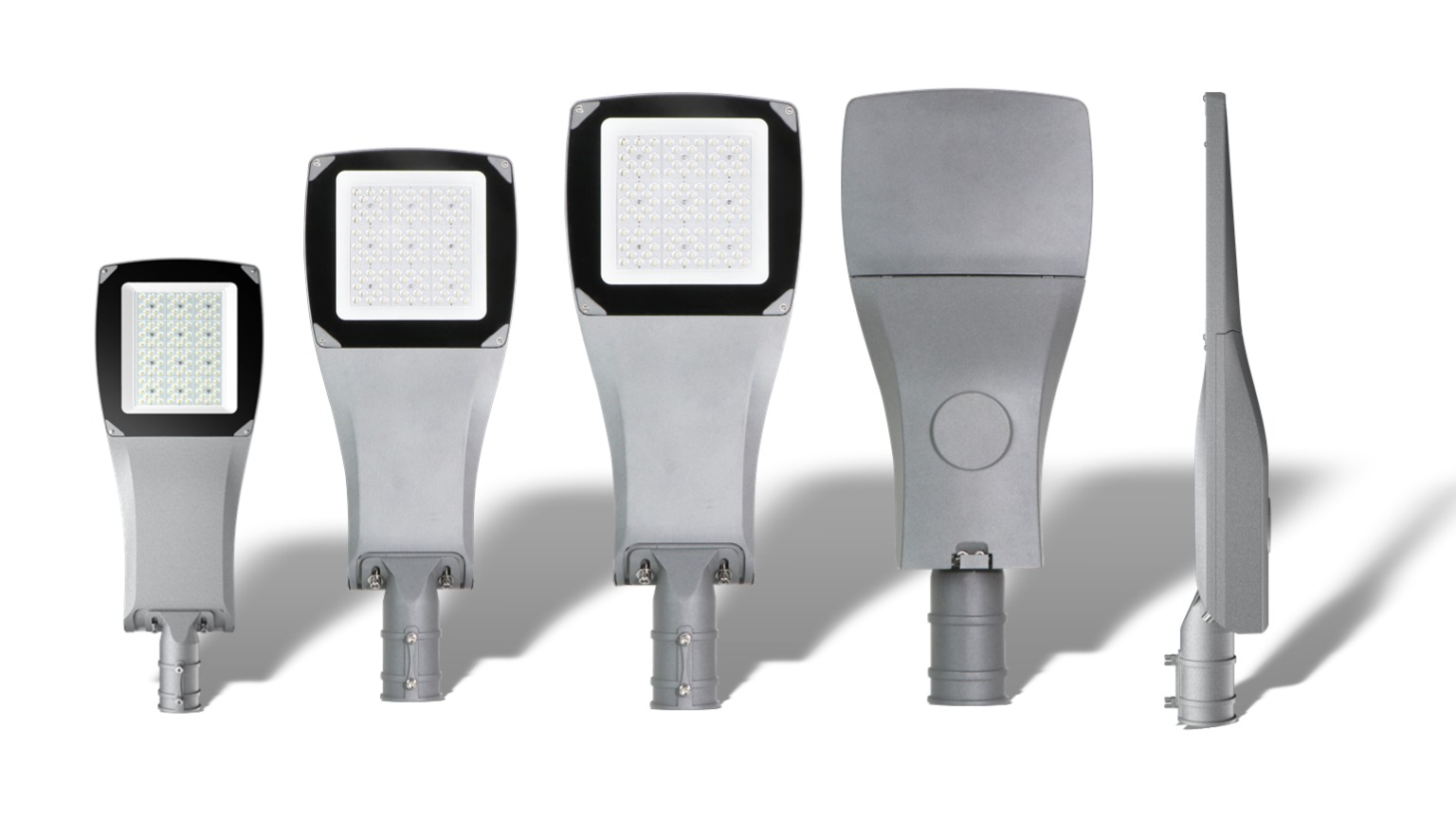

DLD-SHD series LED Street lamp are have three dimensions, suitable for 30W 50W 60W 80W 100W 120W 150W 200W which mainly designed for high quality demands, meet any driver brand and meet 200lm/w for the finished products
This model have 3030 and 5050 led chip for option, we can provide 5-10 years warranty for this model, Ideal for the government projects

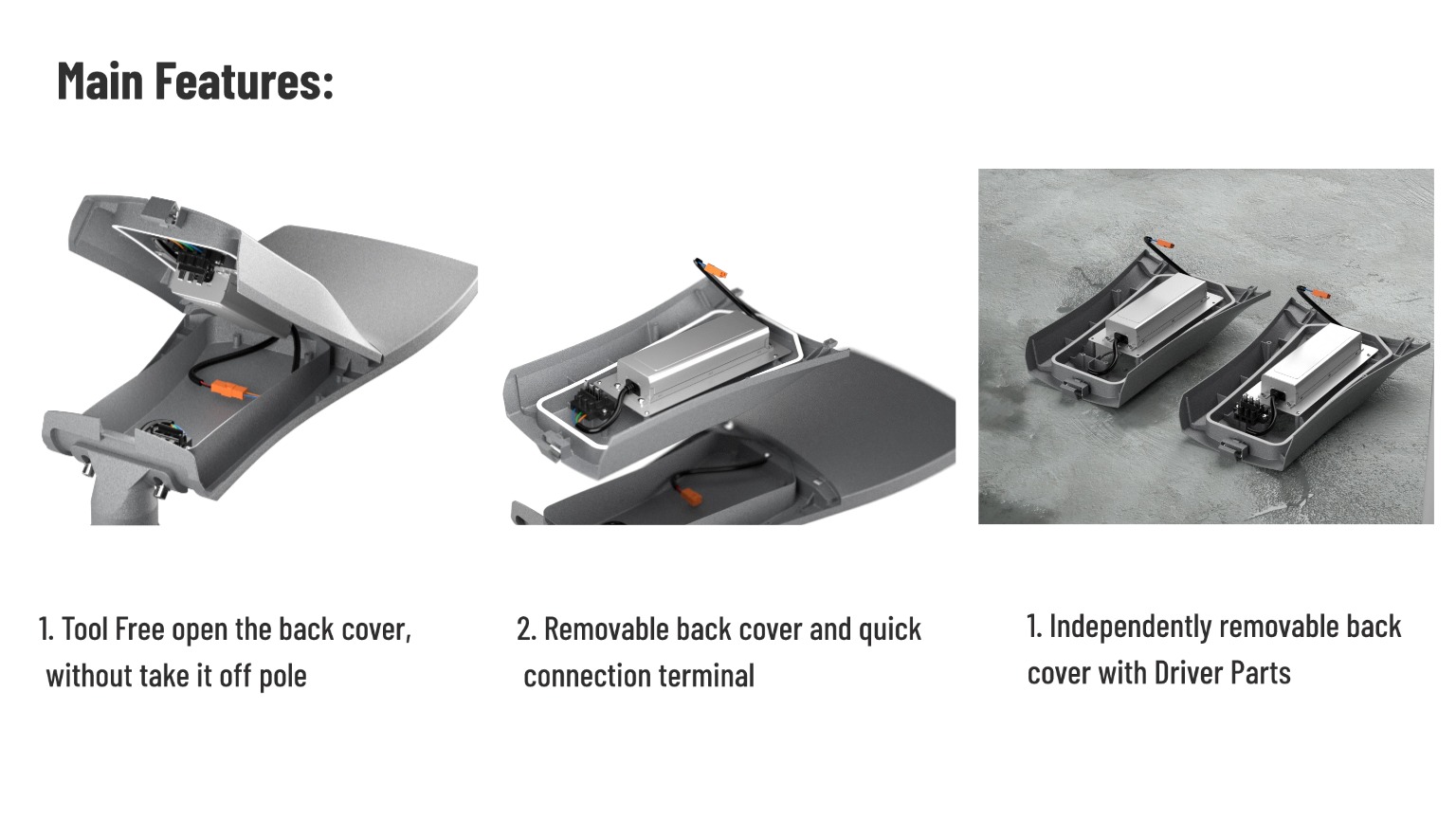

This LED Street lamp main features:
1. Tool free open the back cover without take it off pole
2. Removable back cover and quick connection ternimal
3. Independently removable back cover with Driver modular and easy for repare the failure driver part.

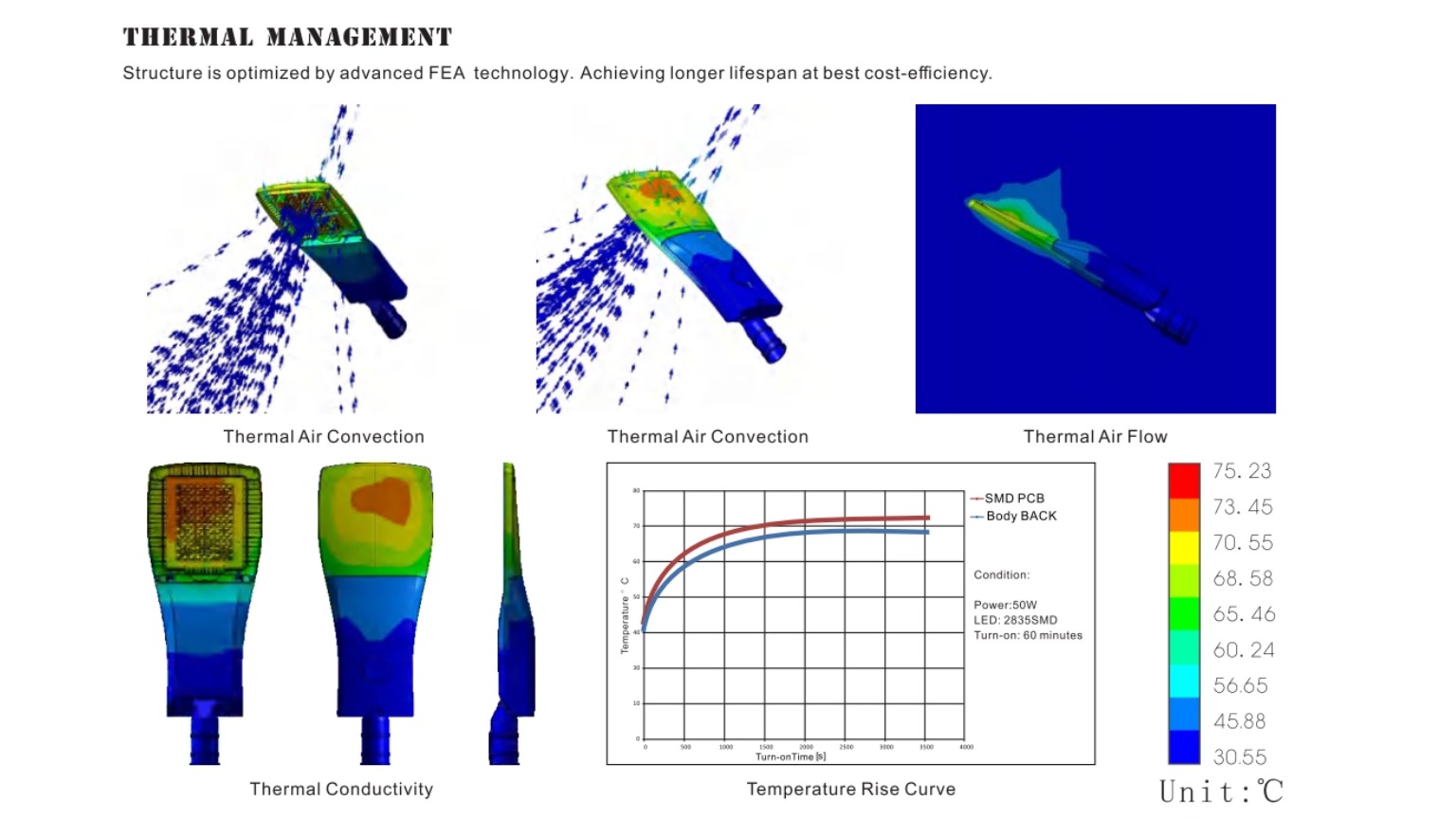

It is core factors that affect the led street lamp lifespans have three parts: LEDs, power supply and heat dissipation structures:
So it is very importanct for the housing dissipation design, if the housing have good dissipation, LEDs temperatures will be more lower, so street light keeps longer lifespan.
We will consider the housing weight, constructures, heat fins, thickness, and spaces, heat conductivity coefficient and many different factors, and use maximized ultilization of natural convection for heat disspation to prolong the lifespan.
Before lanuch the new design, we will make a lot of testing for the temperature and keep the finished products have assuring the lifespan.

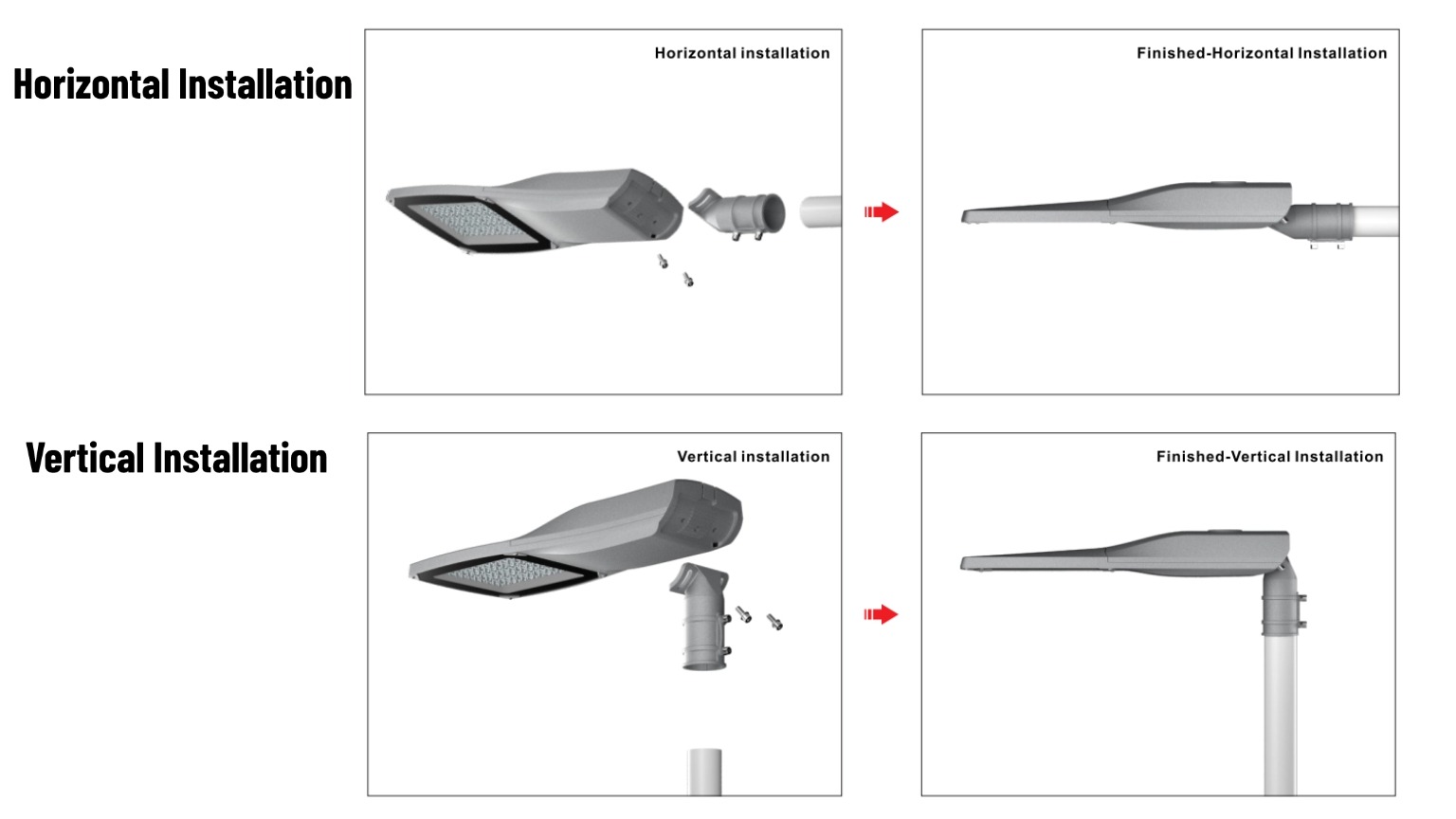

Horizontal Insllation and Vertical Installation
This model can be install by horizontal and Vertical two method by different needs
You can install them by different need, when installed horizontal, the led street lamp spot can effectively extend along the road direction, enhancing uniformity, when installed vertically, it can better control the lateral light width and adapt to wider road surfaces, this flexibility ensures that the light pattern can be precisely and efficiently utilized in any installation, eliminating light waste and glare

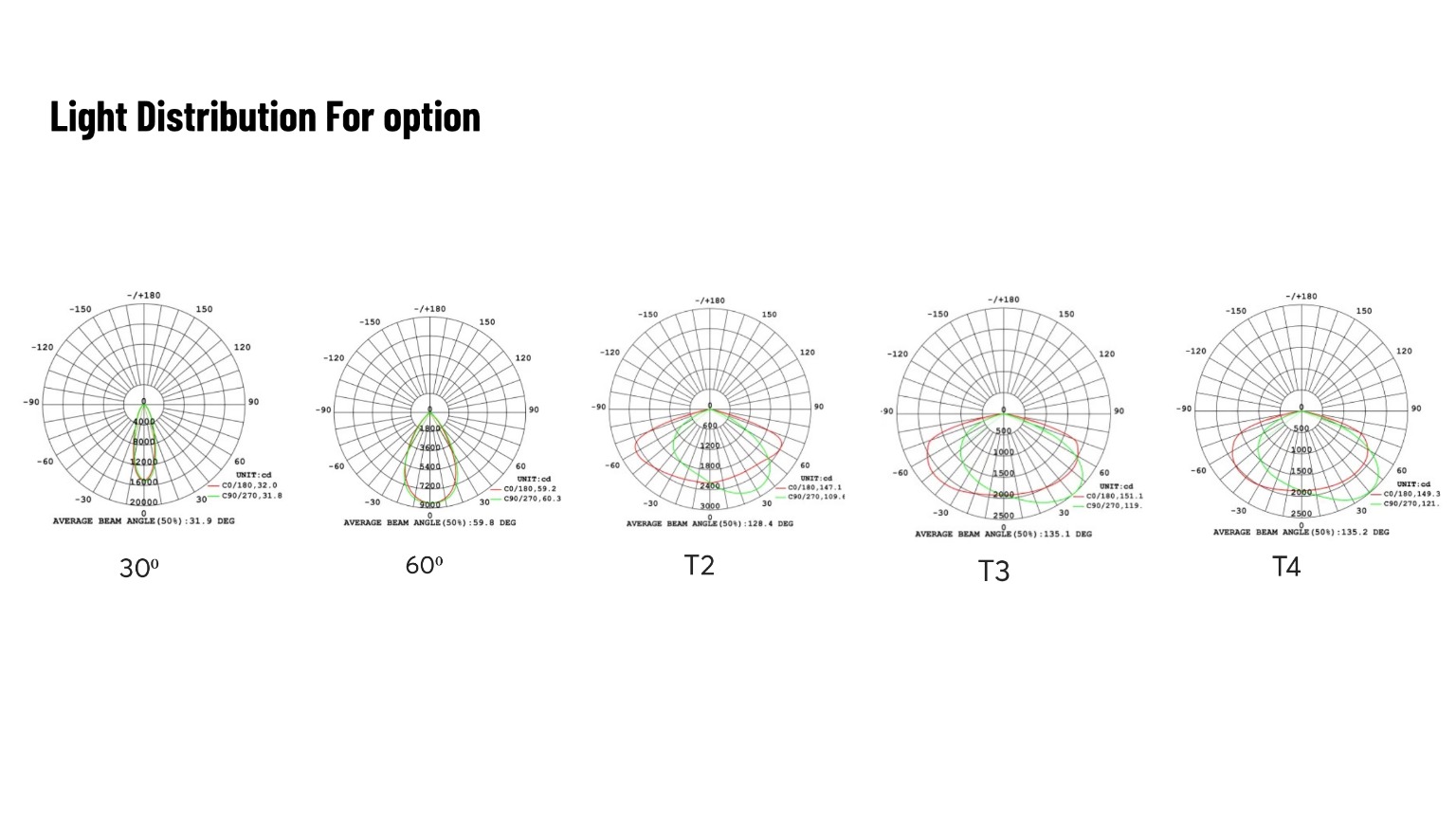

We adopt professional optical lens for led street lighting beam angle
We adopt PC material utillzing premium material, achieve expcetional light transimission rates >92% features maximizing energy saving and reducing overal power comsumption.
Uniform Illumination patterns, we offer different range of beam distribution like 30/60degree, TYPE II, Type II, Type IV, Type V to meet specific road requirements

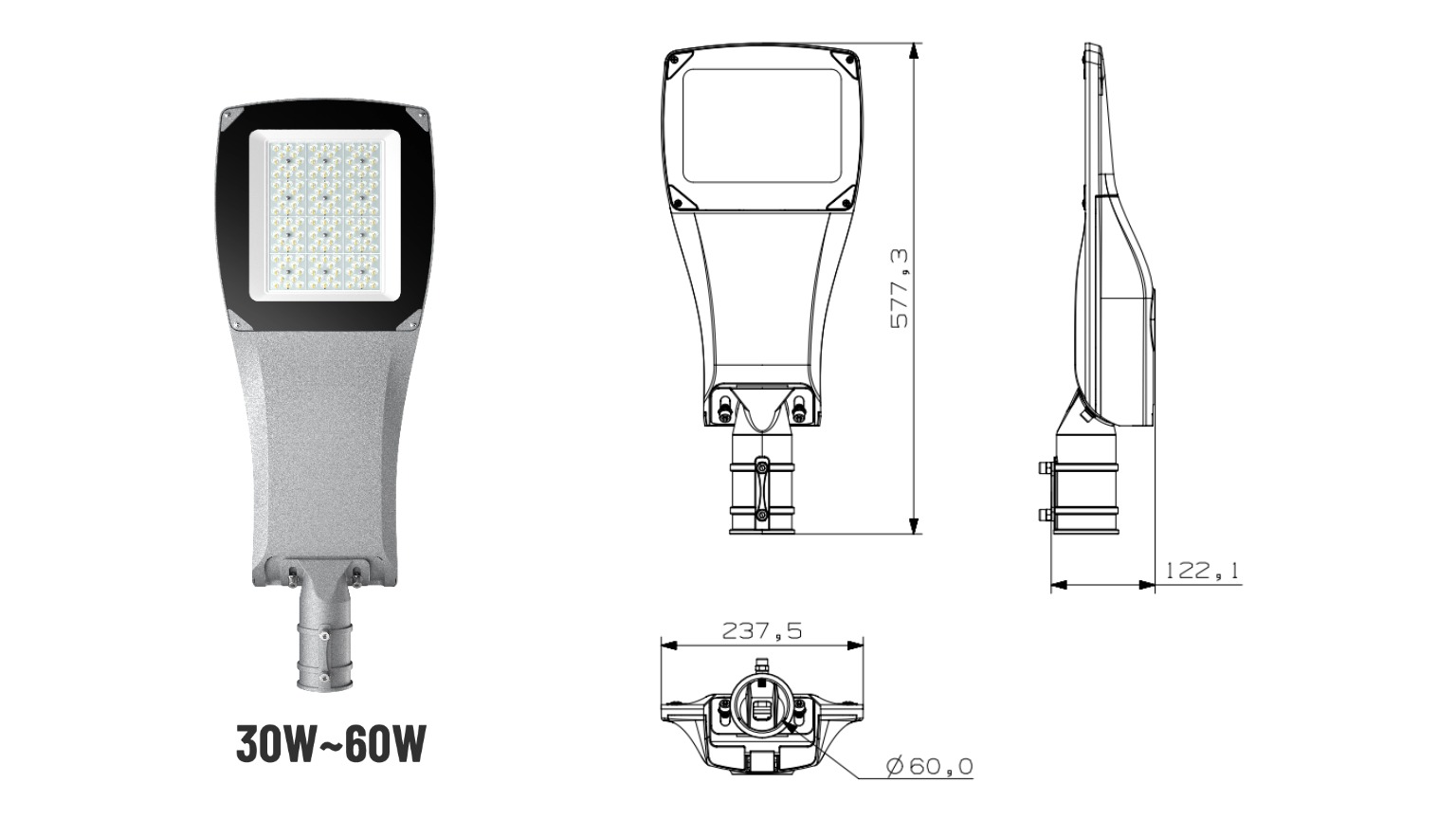

DLD-SHD-50W
Product Size: 590*240*90MM
LED Chips: 3030/5050
Lumen: 140-200lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60Hz
Material: Die cast aluminum housing +PC lens +Tempered glass

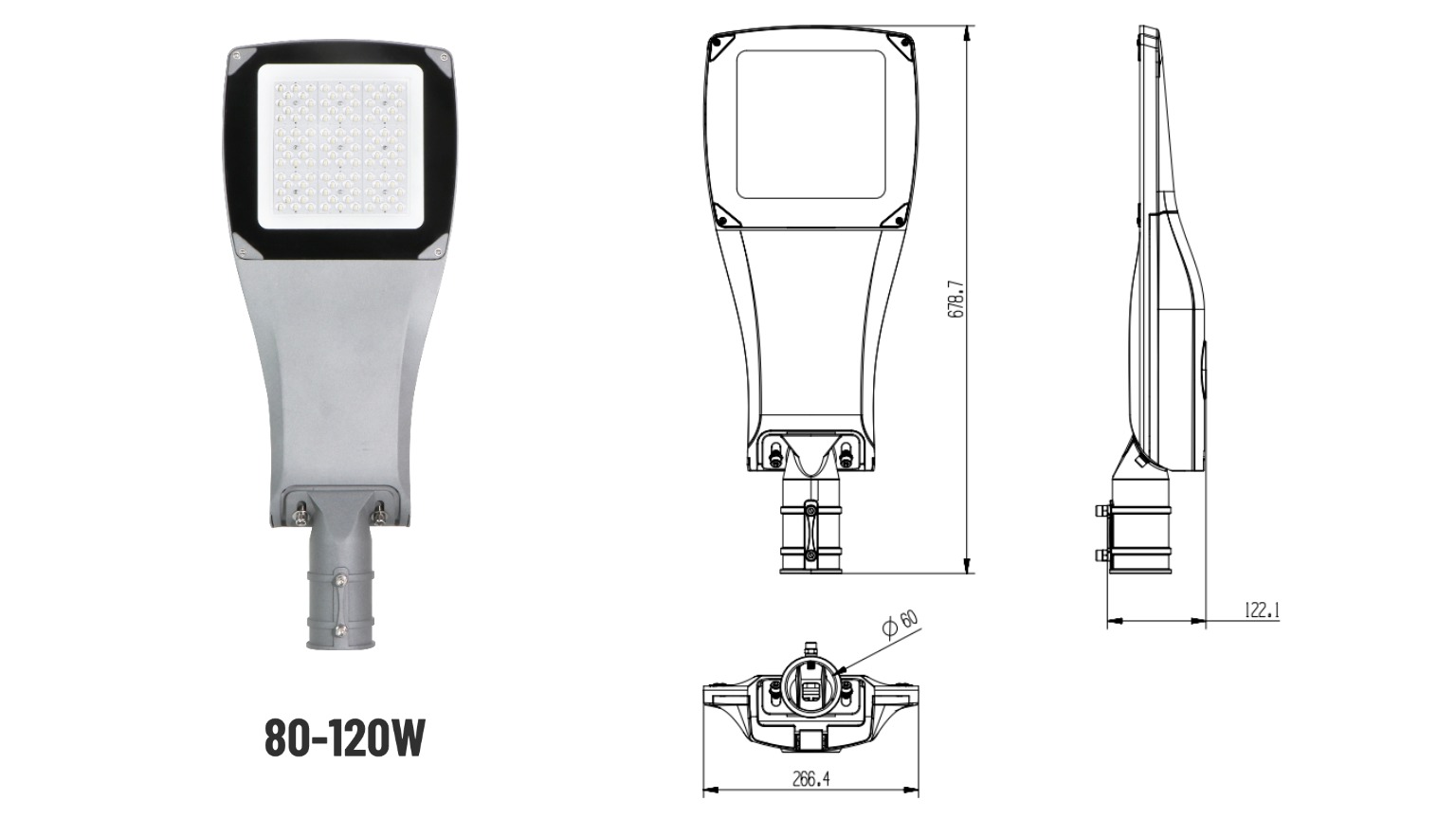

DLD-SHD-100W
Product Size: 685*265*90MM
LED Chips: 3030/5050
Lumen: 140-200lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60Hz
Material: Die cast aluminum housing +PC lens +Tempered glass

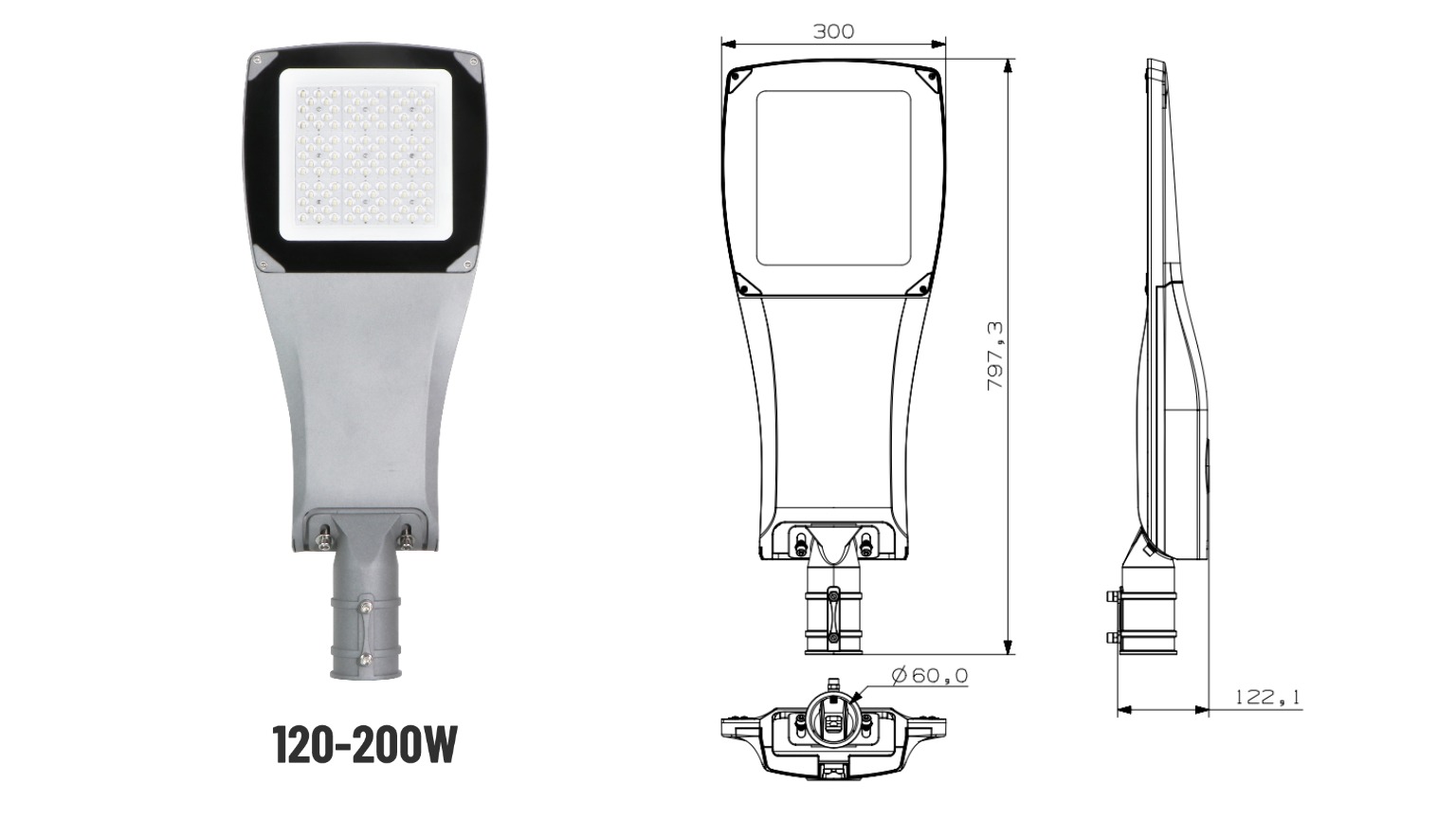

DLD-SHD-200W
Product Size:900*300*90MM
LED Chips: 3030/5050
Lumen: 140-200lm/w
Waterproof grade: IP66
CRI>80
Input Voltage: AC85-277V/50-60Hz
Material: Die cast aluminum housing +PC lens +Tempered glass
.

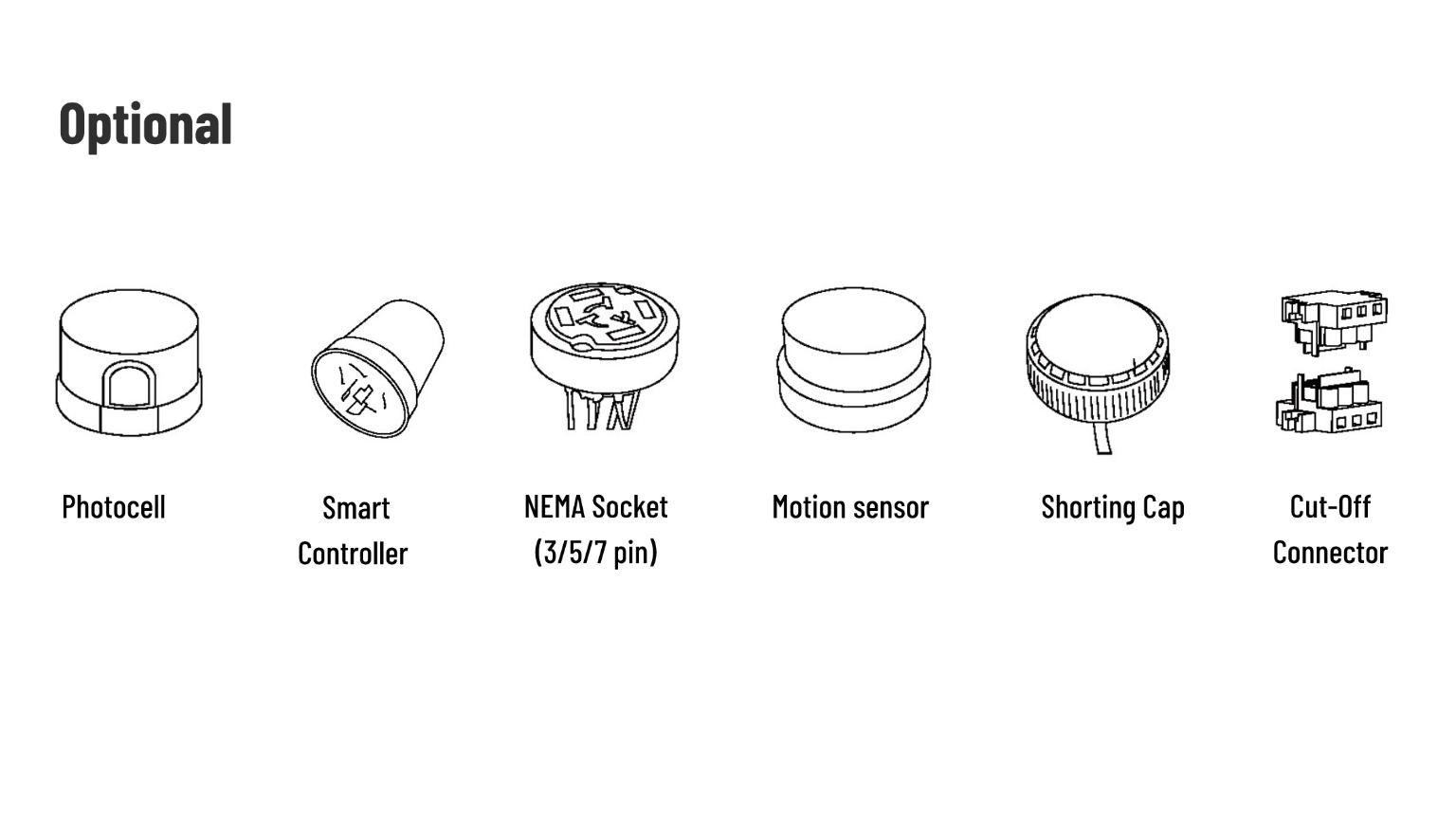

Componets for optional
DLD-SHD series can choose different functions
Photocell
Smart Controller
NEMA Socket (3/5/7PIN)
Motion sensor
Shorting Cap
Cut -off Connector
LED Street Lamp Widely Application:
- Urban main Roads
- Highway Road
- City secondary road
- Street Places
- Industrial Park
- Factory Roads
- Residential area
- Community Road
- Parking lot
- Square Lighting
A: DLD-SDC series we mainly use Sanan, Bridgelux and Epsitar brand with economic versions, however we can provide brand LED chips, like Lumiled, Cree etc, only the price is different, just contact us for further confirmation
Q: What is the mainly Color temperature for the Light?
A: 4500K 6500K is our mainly color temperature and however we can customized 2200K 3000K as per client demands
Q: What is the lumen efficacy?
A: This model led street light finished product regular lumen can reach 150~160lm/w, but also can be customized for more higher.
Q: What is the IP rating?
A: This model led street light heads can pass IP66, due to good design structure.
Q: Can you provide the IES files and optical distribution details?
A: Yes sure, we can provide IES file, as we have our own dark room for testing them
Q: What is the typical Color Rendering Index?
A: Usually this model provide 70 or 80 CRI
Q: What mainly certification do you have?
A: For the factory, we have ISO9001 certification, For the products we can provide CE ROHS certification
Q: How is the electromagnetic compatibility(EMC) of street lamp? Will it interfere with peripheral devices?
A: This model is we can provide pass EMC solution, but please confirm with our sales person.
Q：Are this light compatible with smart control? like the DALI, 0-10V dimming/Zhaga?
A： This model can put SPD and NEMA base, other smart controller we suggest other models, due to not enough space.
Q: What is the warranty for led street light heads?
A: We provide warranty as we promised time, the time from receiving the goods to the agreed time, if any quality problem, we will try our best to help solve, we will testing what is the real reason, and will send free accessories or finished products for compensation.
Q: Do you provide OEM/ ODM series?
A: Certainly, we are professional manufacturer for led street lamp, we have more than 15years experience and also we have 6 die cast aluminum machines, we can customized as per demands, just contact with our sales person.
Q: Can you provide lighting design plans and simulations?
A: We can provide lighting designs, we have design engineer and can design as per your thoughts, but we not provide simulations for the projects.
Q: Do you have MOQ and sample policy?
A: Usually our regular specifications products MOQ is 50PCS, but in order to support new client, we support samples order or trial order for testing at beginning, But if the OEM customized products MOQ need to confirm with us.
Q: What is delivery time for the sample and regular order?
A: Usually for the samples item our delivery time is 7-10days, For the regular orders our delivery time 20-25days
