Model No: DLD-HDA
100W 150W 200W LED High bay ufo lights DOB solution
High bay ufo lights Description
-Die cast aluminum housing
-DOB solution
-Sanan / Epsitar /Bridgelux LED
-AC200-260V/50-60Hz
-3000K/4500K/6500K
-CRI>70
-2 Years Warranty
-IP65
-Die cast aluminum housing
-DOB solution
-Sanan / Epsitar /Bridgelux LED
-AC200-260V/50-60Hz
-3000K/4500K/6500K
-CRI>70
-2 Years Warranty
-IP65
Quantity :
0.00
Product Parameters
| Product Name | led high bay 100w/led high bay 200w/high bay ufo lights/led ufo high bay light | ||
| Item No. | DLD-HDA-100W | DLD-HDA-150W | DLD-HDA-200W |
| Input Watt | 100W | 150W | 200W |
| LEDs | 2835/144PCS | 2835/180PCS | 2835/252PCS |
| Dimensions(mm) | D240*H50 | D280*H50 | D320*H50 |
| Efficiency | >120lm/w | >120lm/w | >120lm/w |
| Input Voltage | AC85-265V/50-60Hz | ||
| LEDs brand | Cree, Lumileds, Osram Bridgelux , Sanan Epistar | ||
| IK Level | IK08 | ||
| Power Factor | 0.95 | ||
| Color Temperature | 3000K/4500K/6500K for led highbay light | ||
| Material | Die Cast Aluminum & Optical lens | ||
| IP Grade | IP65 | ||
| Warranty | 2 Years | ||
High bay ufo lights Description
- It is made up of die cast aluminum housing and optical lens
- It is DOB solution
- Use high brightness LEDs brand, Sanan, Epistar, Bridgelux
- Input voltage AC85-265V/50-60Hz
- Color Temperature 3000K/4500K/6500K
- CRI>80
- 2 Years warranty provided

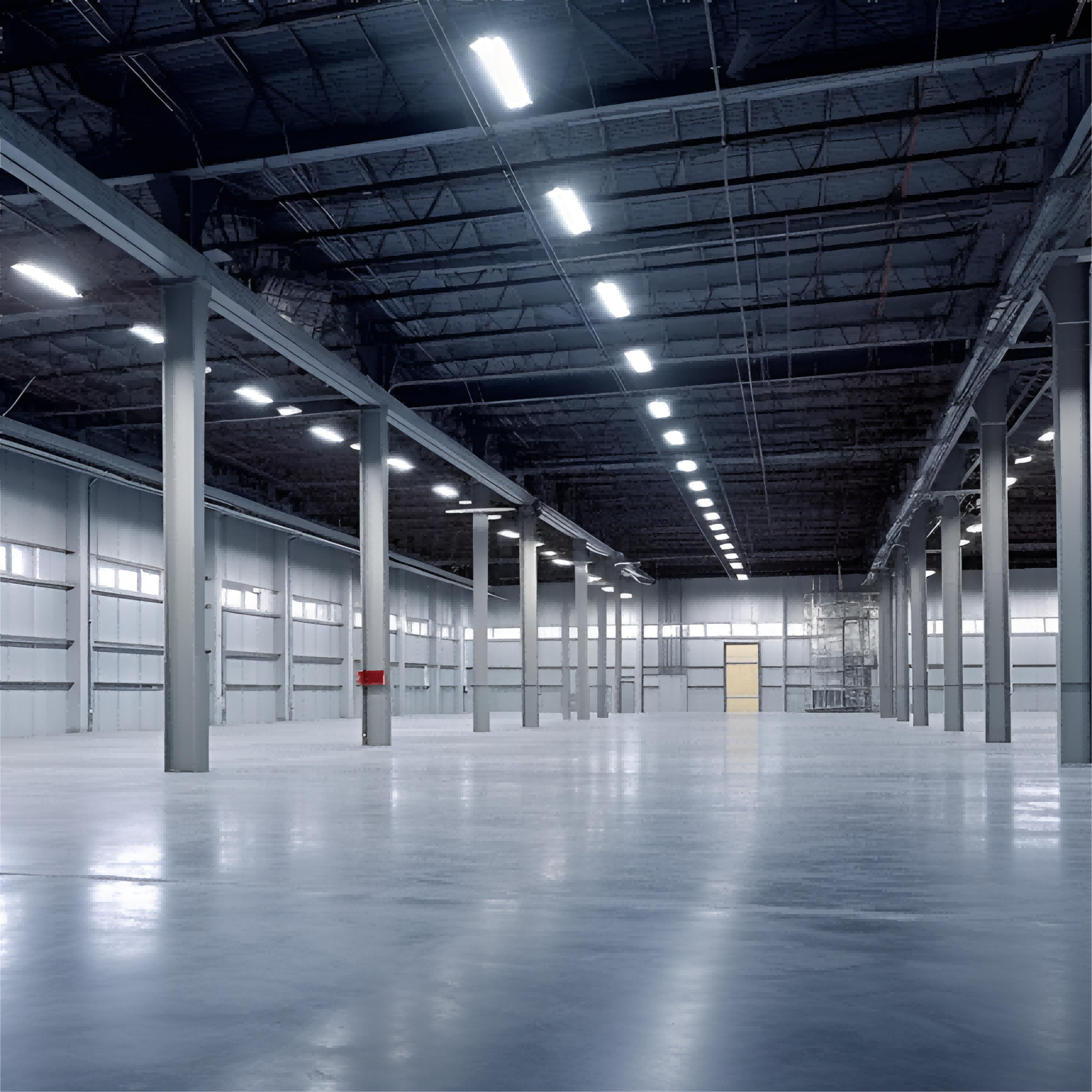

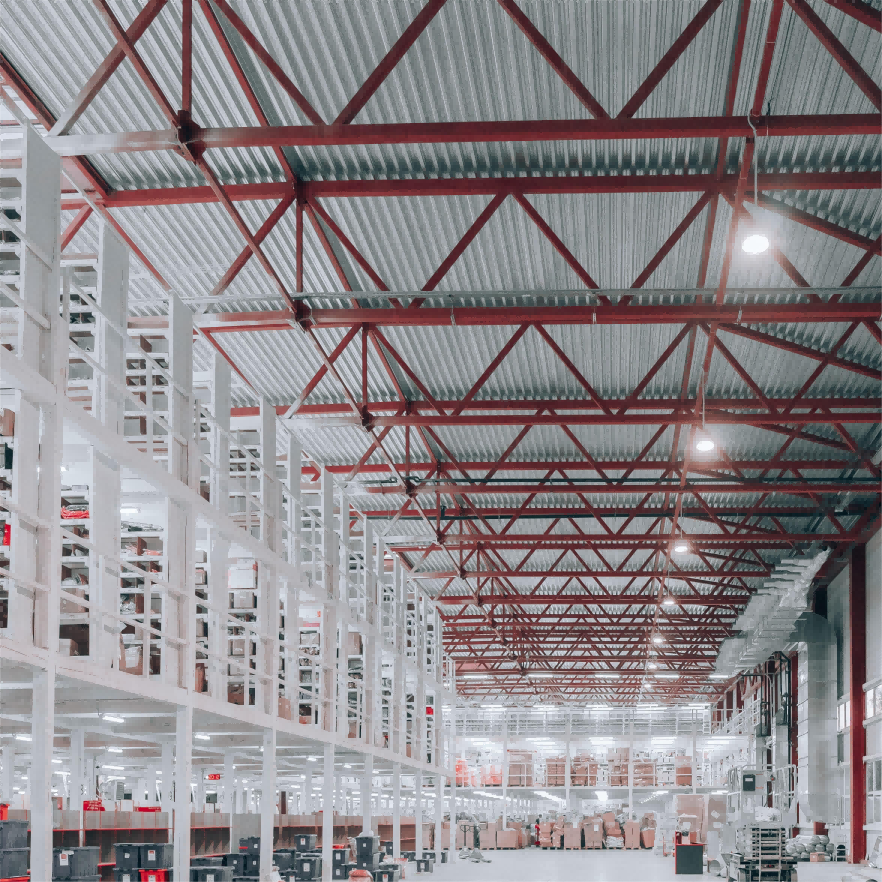

- Widely used on warehouse, factory,
Application
Please scan the QR code check this led street lamp Datasheet
