30W-200W Linear led street lamp IP66 IK08

This is Linear solution LED Street lamp is the top quantity selling on our factory, which means driver on the board and saving the costs, but the effects still keep high performance on street lamp, this model have 4 different dimensions and have wattage start from 30W to 200W,  satisfy different application installation height

This linear solution LED Street lamp is made up of the die cast aluminum housing and optical lens, we provide 2 years warranty.

DLD-SDB series linear led street light use PC lens, and light transmittance can be reach 88~94%,  and it features that have extremely strong impact resistance and withstand the high temperatures resistance

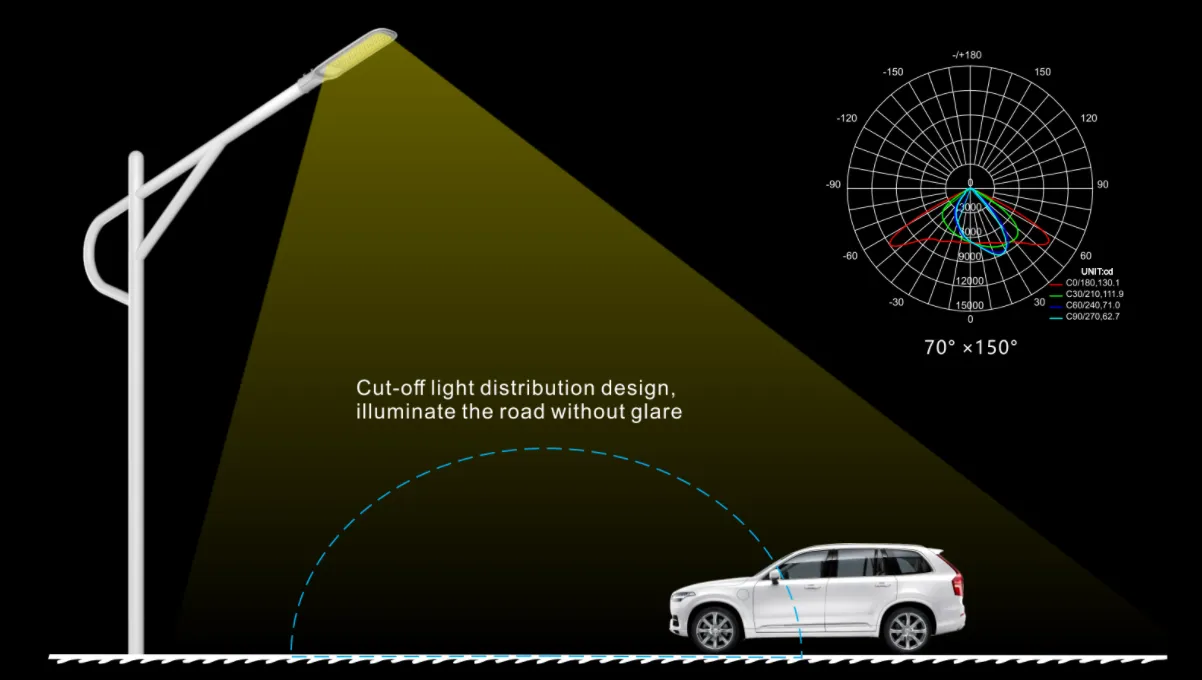

This lamp beam anlge is 70*150 degree widely used on the road side and highway places which is suitable for the wideth from 10Meters to 16Meters mainly road.

We can provide IES testing report if you want do simulation

Due to consider the costs and meet some clients demands, we design this led street lamp with easy installation, but the can not adjustable the angles

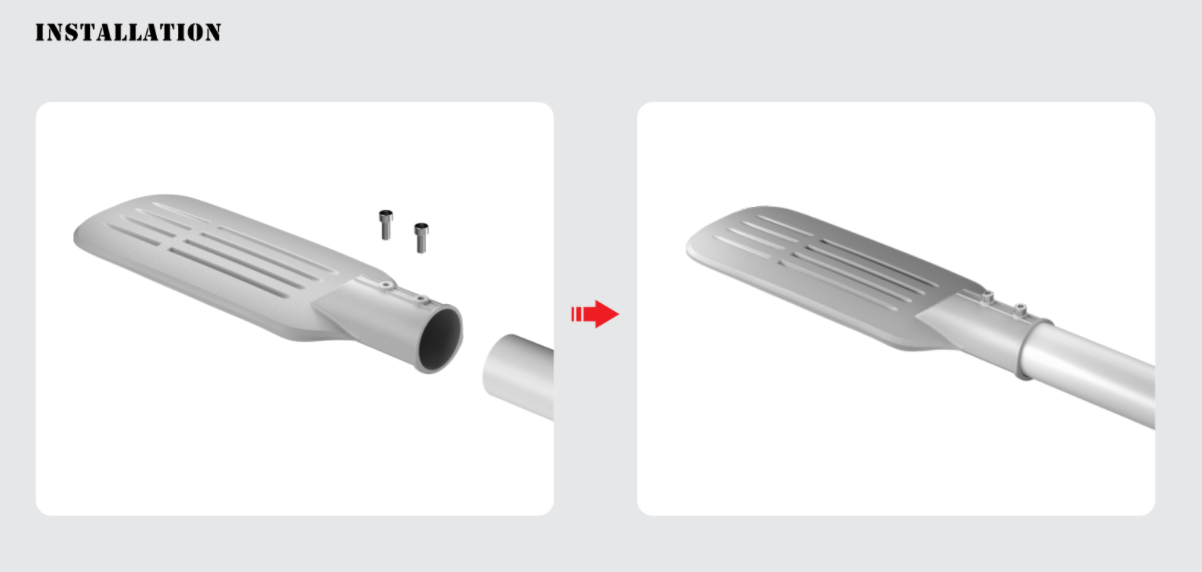

DLD-SDB LED Street lamp design only suit for the pole installation

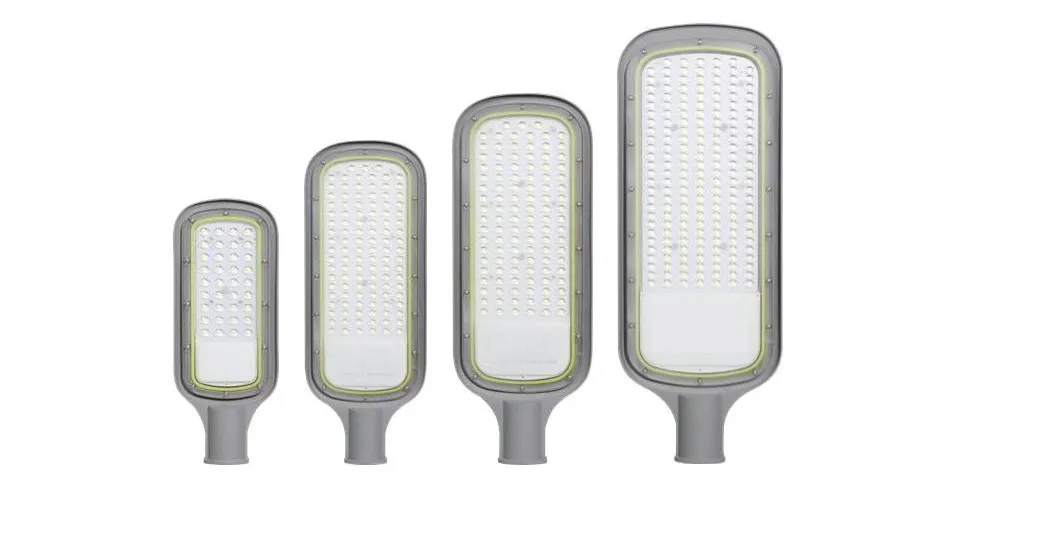

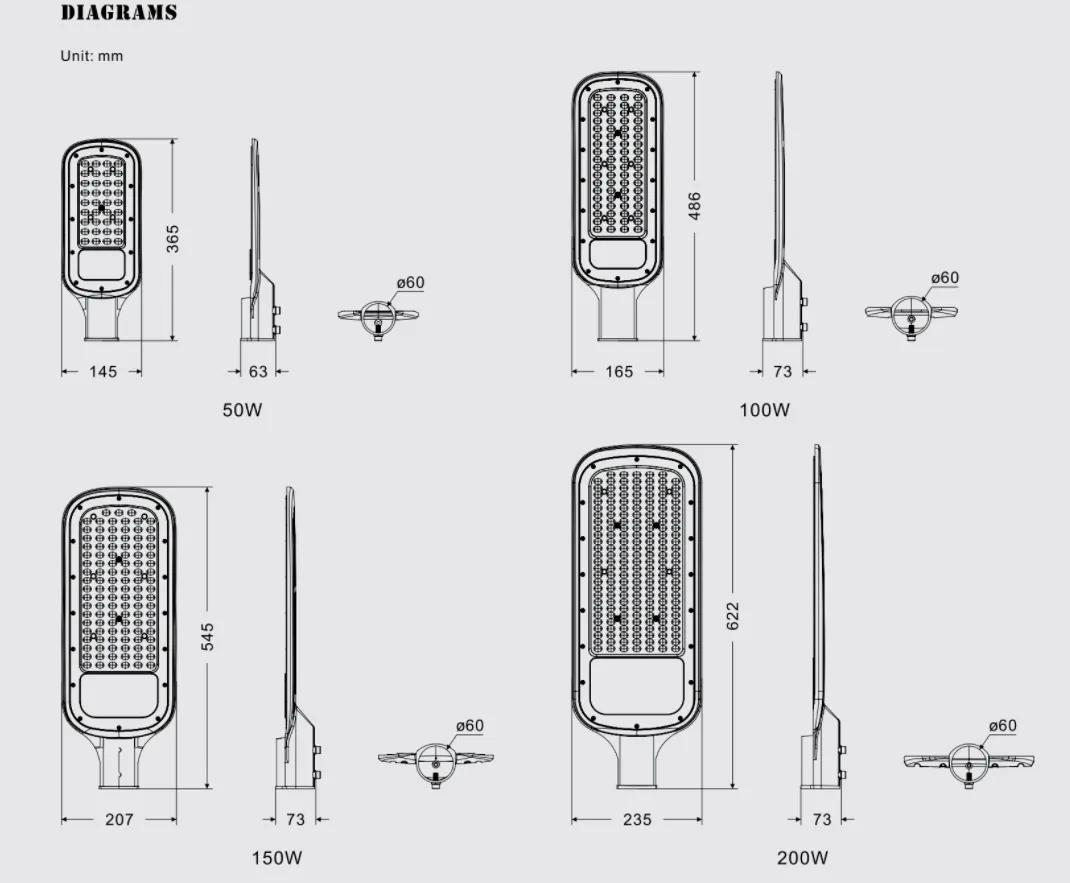

This LED street light have four dimensions and meet different application:

50W : 365*145*63MM

100W :  486*168*73MM

150W: 545*207*73MM

200W: 622*235*73MM

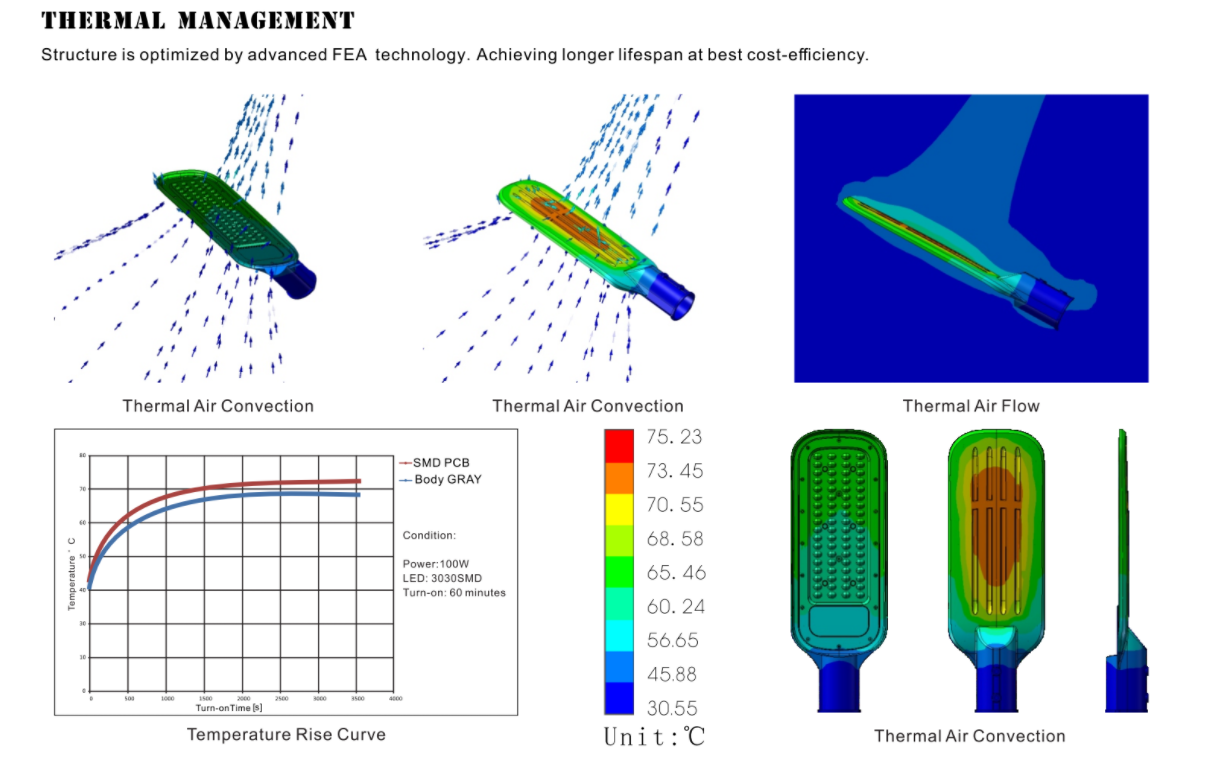

It is core factors that affect the led street lamp lifespans have three parts:  LEDs, power supply and heat dissipation structures:

So it is very importanct for the housing dissipation design, if the housing have good dissipation, LEDs temperatures will be more lower, so street light keeps longer lifespan.

We will consider the housing weight, constructures, heat fins, thickness, and spaces, heat conductivity coefficient and many different factors, and use maximized ultilization of natural convection for heat disspation to prolong the lifespan.

Before lanuch the new design, we will make a lot of testing for the temperature and keep the finished products have assuring the lifespan.
