30W-200W DOB led residential street lights
-Die cast aluminum housing
-DOB Solution
-Sanan/ Epistar/ Bridgelux
-AC85-265V/50-60Hz
-3000K/4500K/6500K
-CRI>70
-2Years warranty
| Product Name | led residential street lights/led street lamp post/decorative street lights | |||
| Item No. | DLD-SDA-50W | DLD-SDA-100W | DLD-SDA-150W | DLD-SDA-200W |
| Input Watt | 50W | 100W | 150W | 200W |
| LEDs | Sanan3030/72PCS | Sanan3030/ 144PCS | Sanan3030/ 216PCS | Sanan3030/ 288PCS |
| Dimensions(mm) | 437*138*54 | 490*151*64 | 566*184*64 | 679*211*62 |
| Efficiency | >100lm/w~120lm/w | |||
| Input Voltage | AC100-265V/50-60Hz | |||
| LED brand | Sanan / Epistar / Bridgelux | |||
| Driver Brand | DOB | |||
| IK Level | IK08 | |||
| Power Factor | 0.95 | |||
| Color Temperature | 3000K/4500K/6500K | |||
| Beam angle | 70*140 Degree | |||
| Material | Die Cast Aluminum & Optical lens | |||
| IP Grade | IP65 | |||
| Warranty | 2 Years | |||

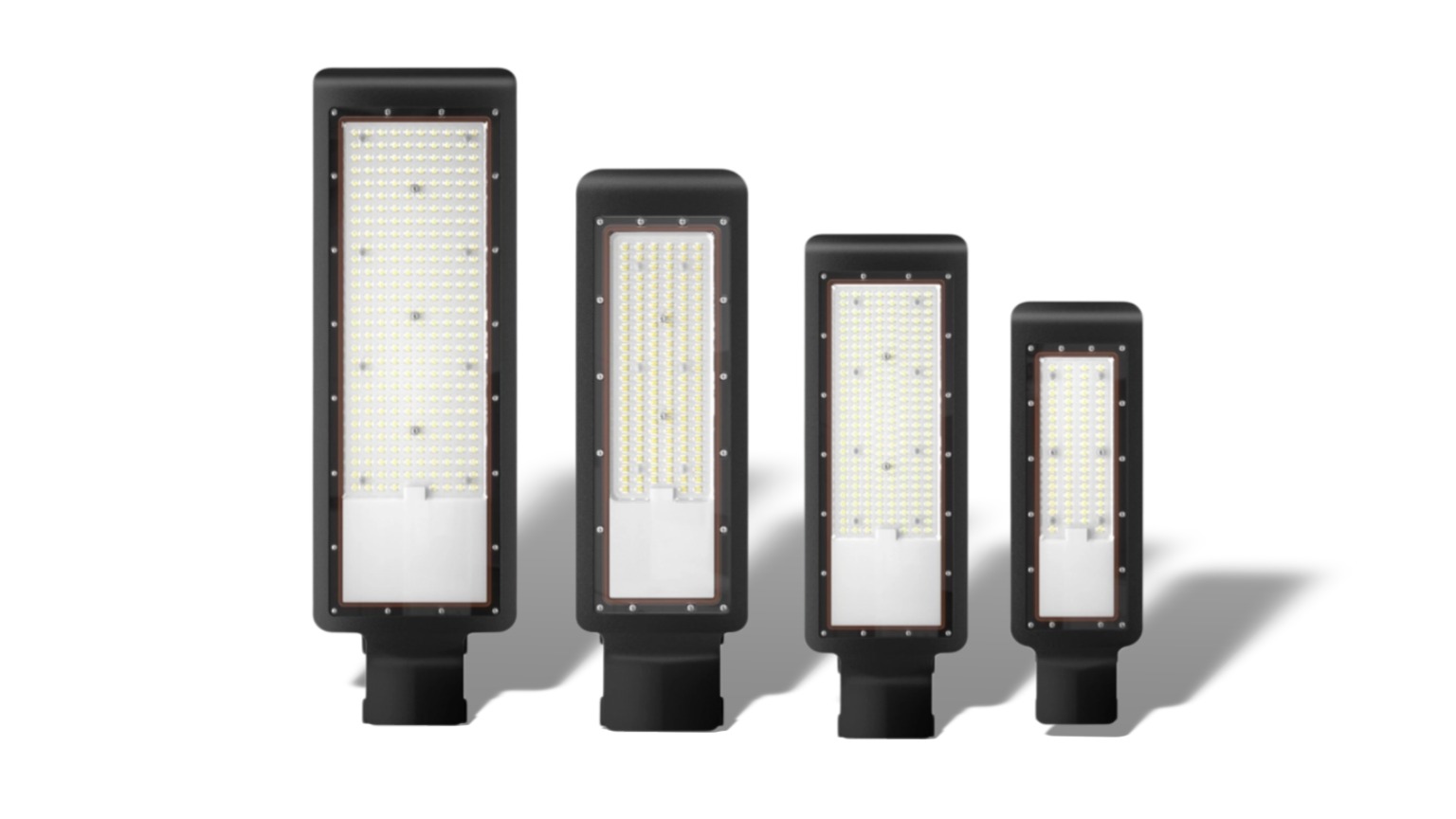

• led street lights provide 4 size housing have 50w 100w 150w 200w
• Very slim design with economic versions
• Light Efficiency can reach 100lm/w
• It made up of die cast aluminium housing and optical lens
• Anti-surge protection up to 4KV
• This model can provide AC85-265V wide voltage
• Tool free maintenance
DLD-SDA series LED Street lamp have 4 dimensions and have 50W 100W 100W and 200W for available, this is DOB solution with very slim design based on the 2 years warranty
We designed for DOB with slim to reduce the material to save costs, so that price is very competitive
This model suitable for client who want competitive prices on the market, but quality still keep stable
Usually this design lumen reach 100~130lm/w

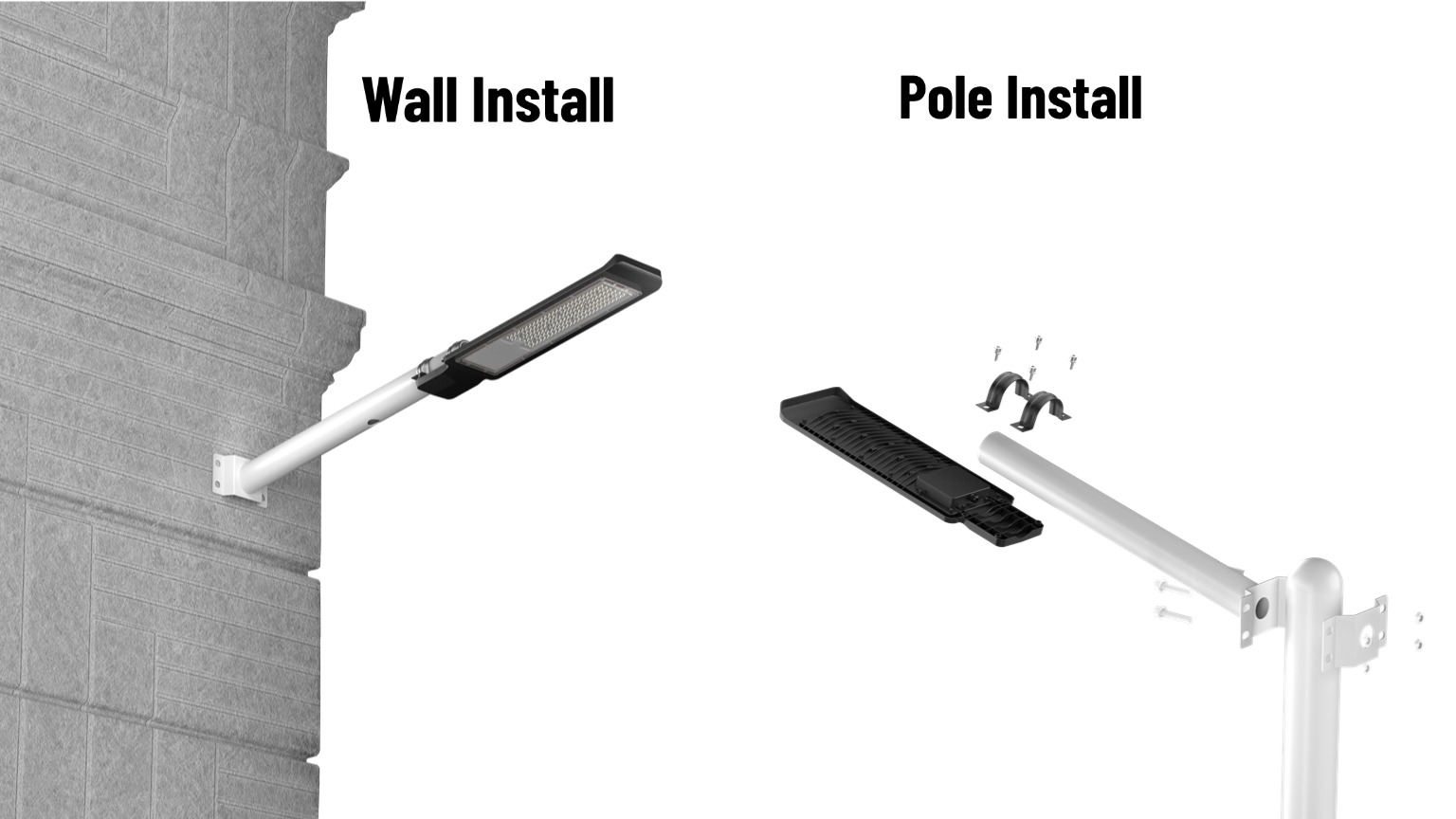

Installtion method: Wall install and Pole install
We offer Wall install and Pole install accessories and severs specially designed for various outdoor street lamps, it is suitable for lighting in cmouunity area, squares
Easy Installation

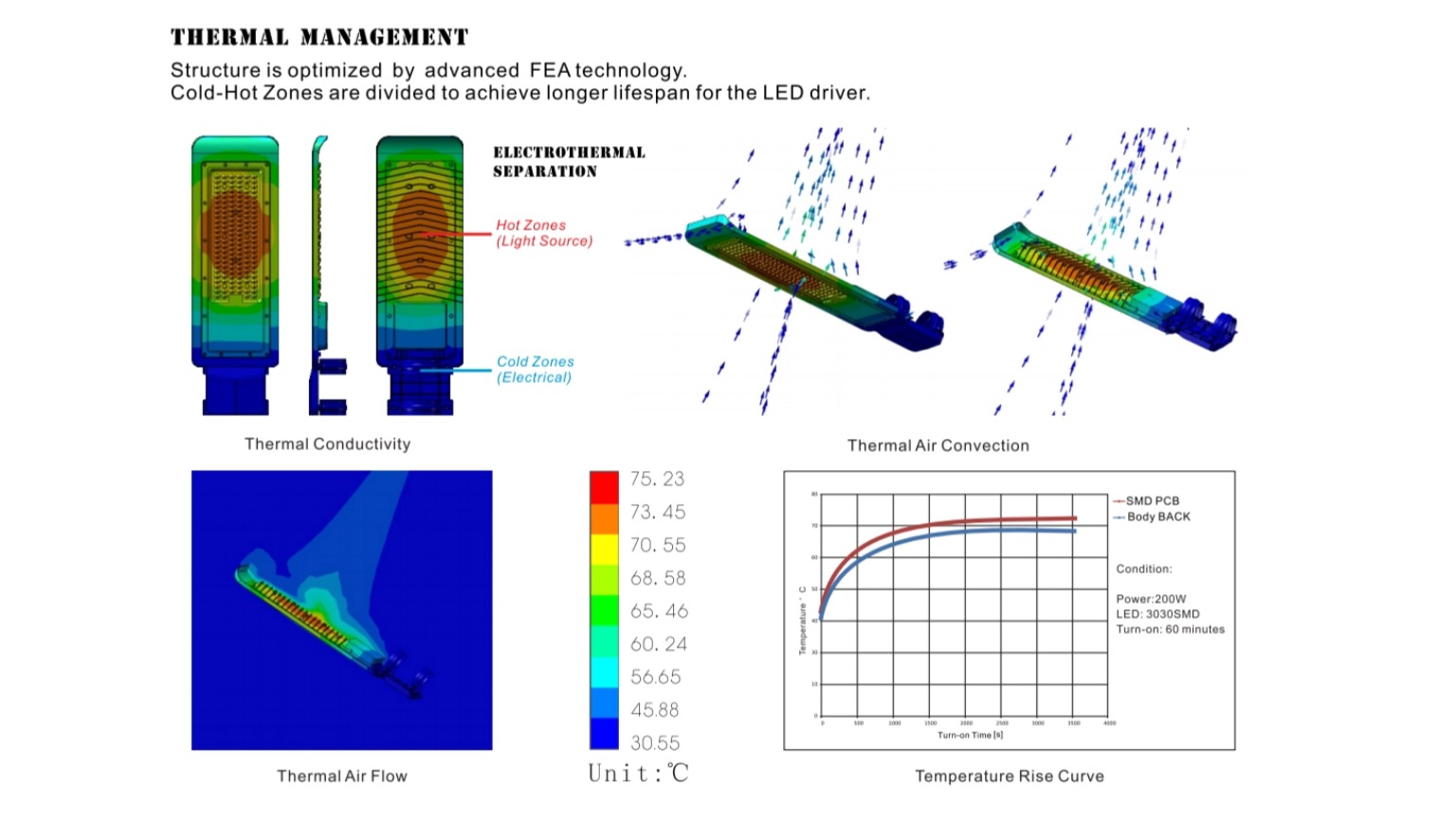

It is core factors that affect the led street lamp lifespans have three parts: LEDs, power supply and heat dissipation structures:
So it is very importanct for the housing dissipation design, if the housing have good dissipation, LEDs temperatures will be more lower, so street light keeps longer lifespan.
We will consider the housing weight, constructures, heat fins, thickness, and spaces, heat conductivity coefficient and many different factors, and use maximized ultilization of natural convection for heat disspation to prolong the lifespan.
Before lanuch the new design, we will make a lot of testing for the temperature and keep the finished products have assuring the lifespan.

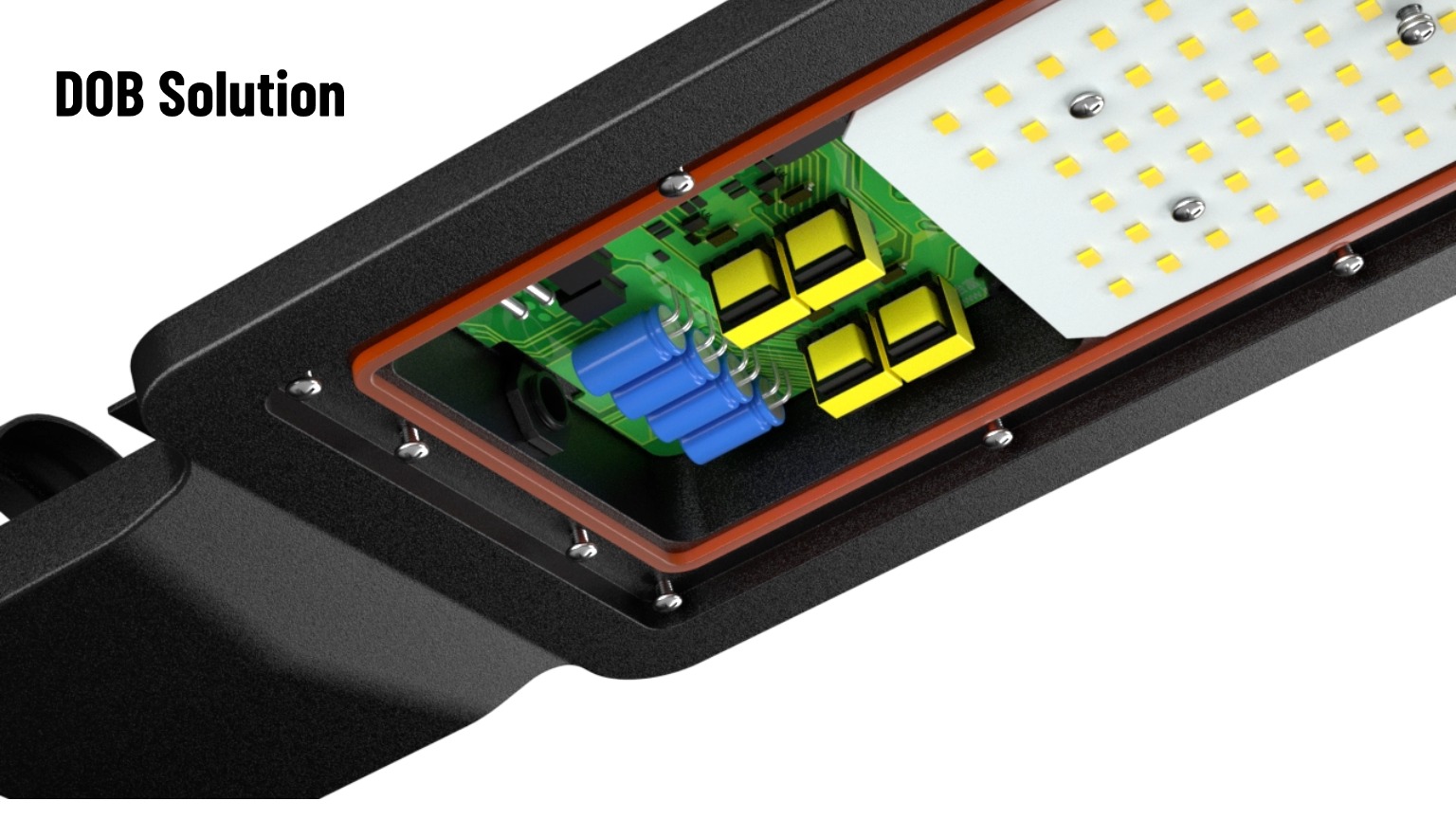

DLD-SDA series led street lamp designed for the DOB solution the features as below:
Slim design with small volume, it is convenient for the thinning and personalized designs of lamps
Removeable the electricity capacitors which are the components is tranditional driver power supplies that are most prone to failure due to high temperatue
Stable quality, it reduce connection points and external components, lowering faults caused by external factors such as vibration and mosture

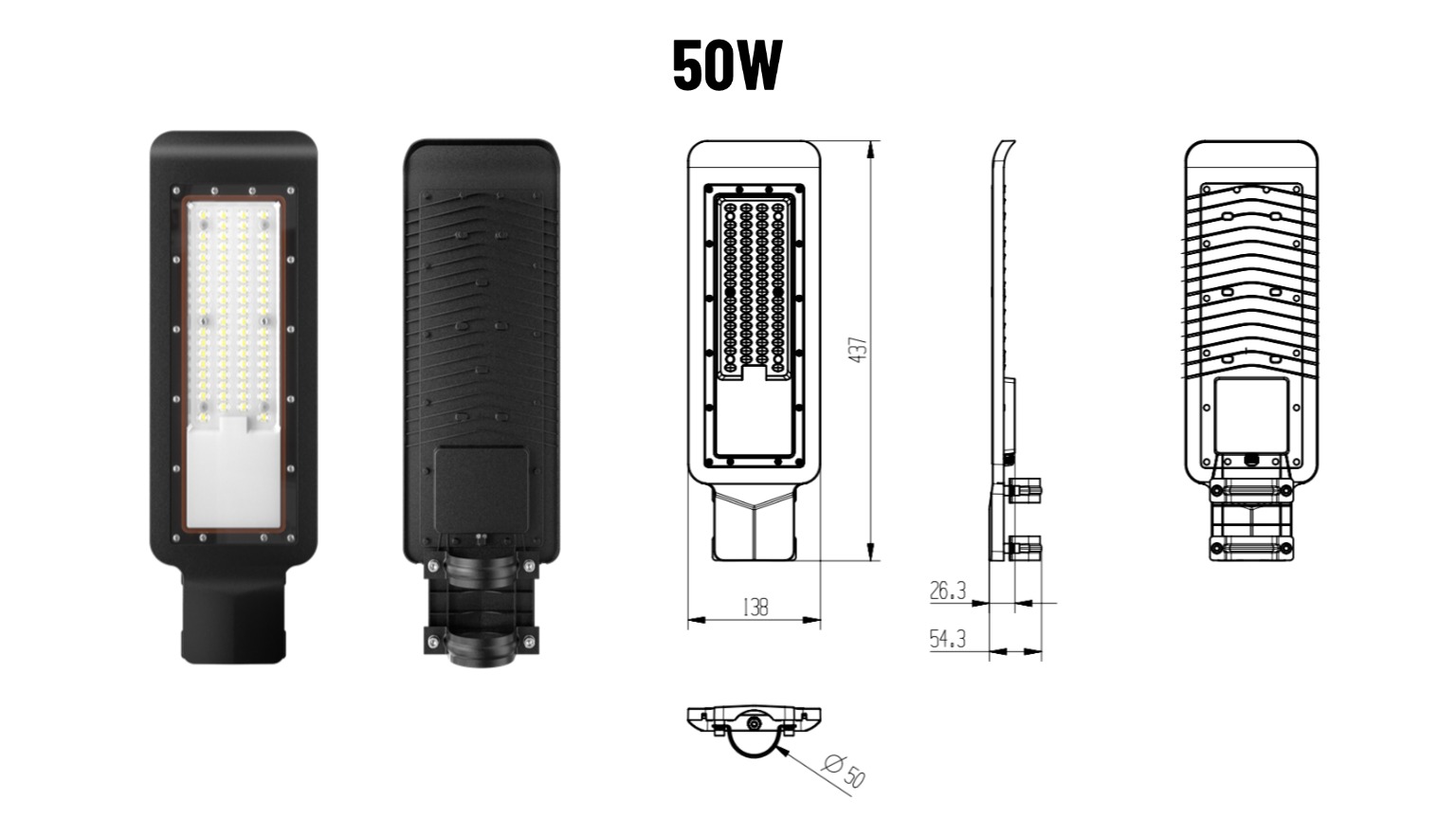

50W LED Street light dimension:
437*138*54MM
Installation Angle: Fixed

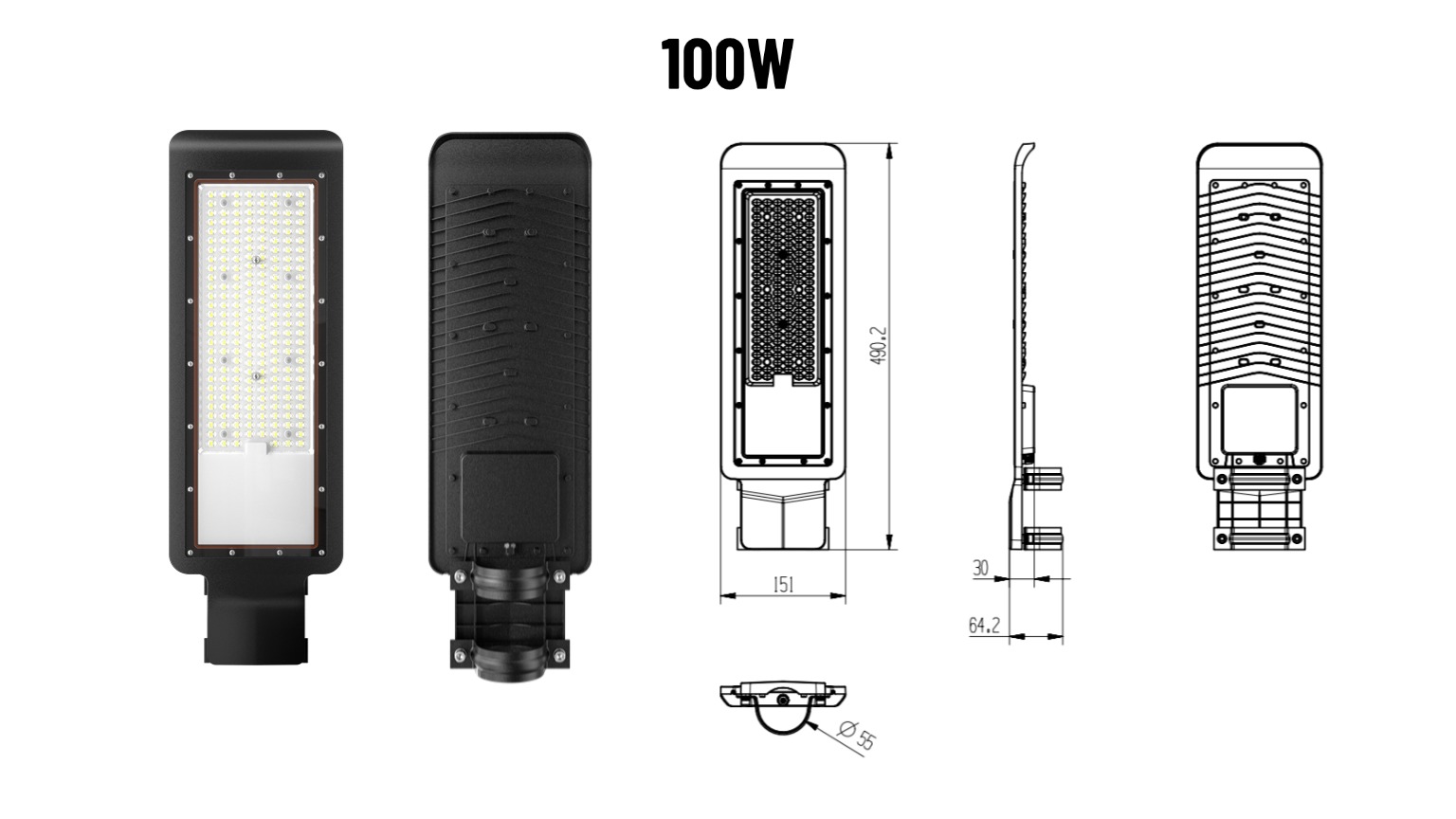

100W LED Street light dimension:
490*151*64MM
Installation Angle: Fixed

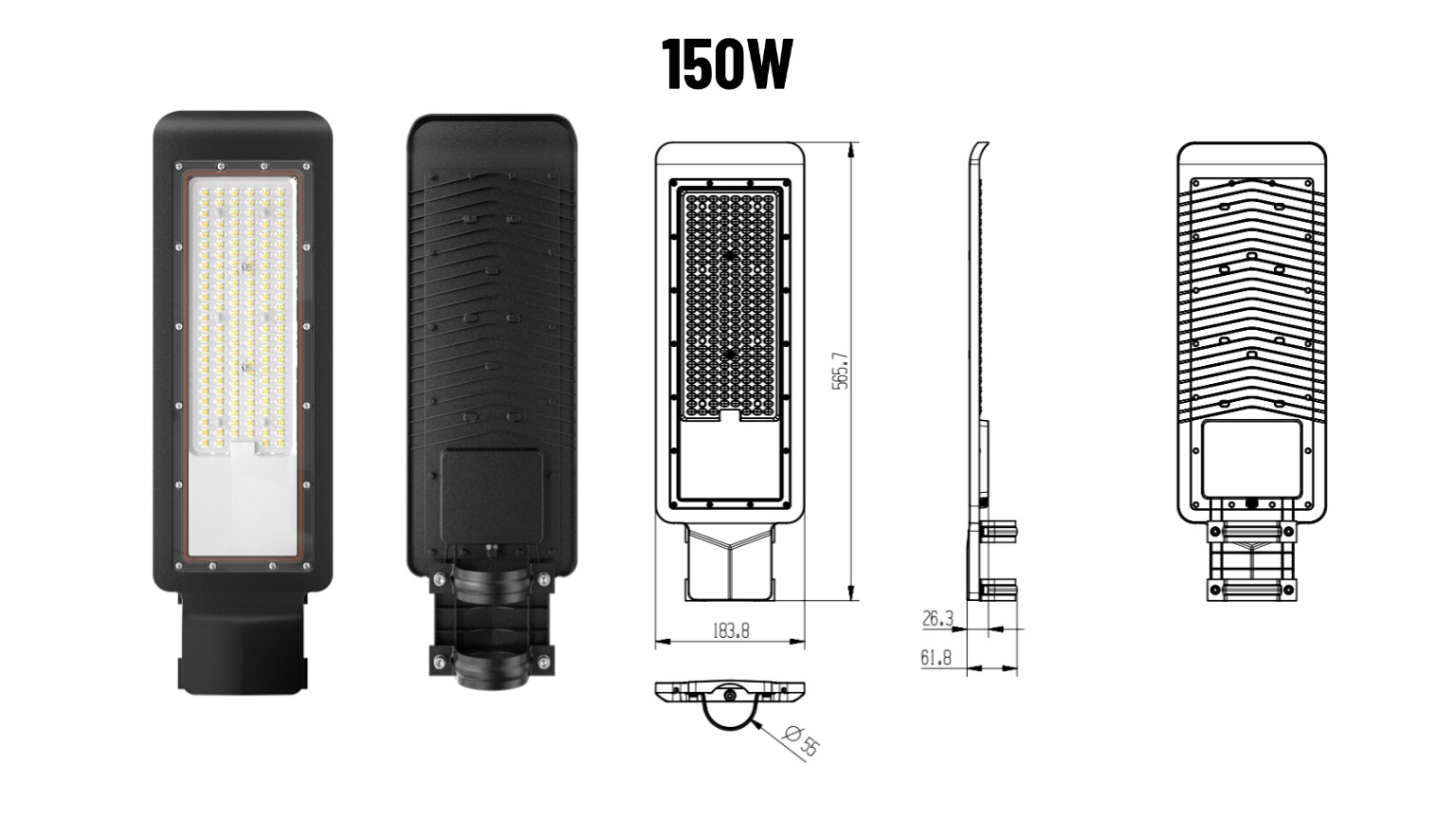

150W LED Street light dimension:
566*184*64MM
Installation Angle: Fixed

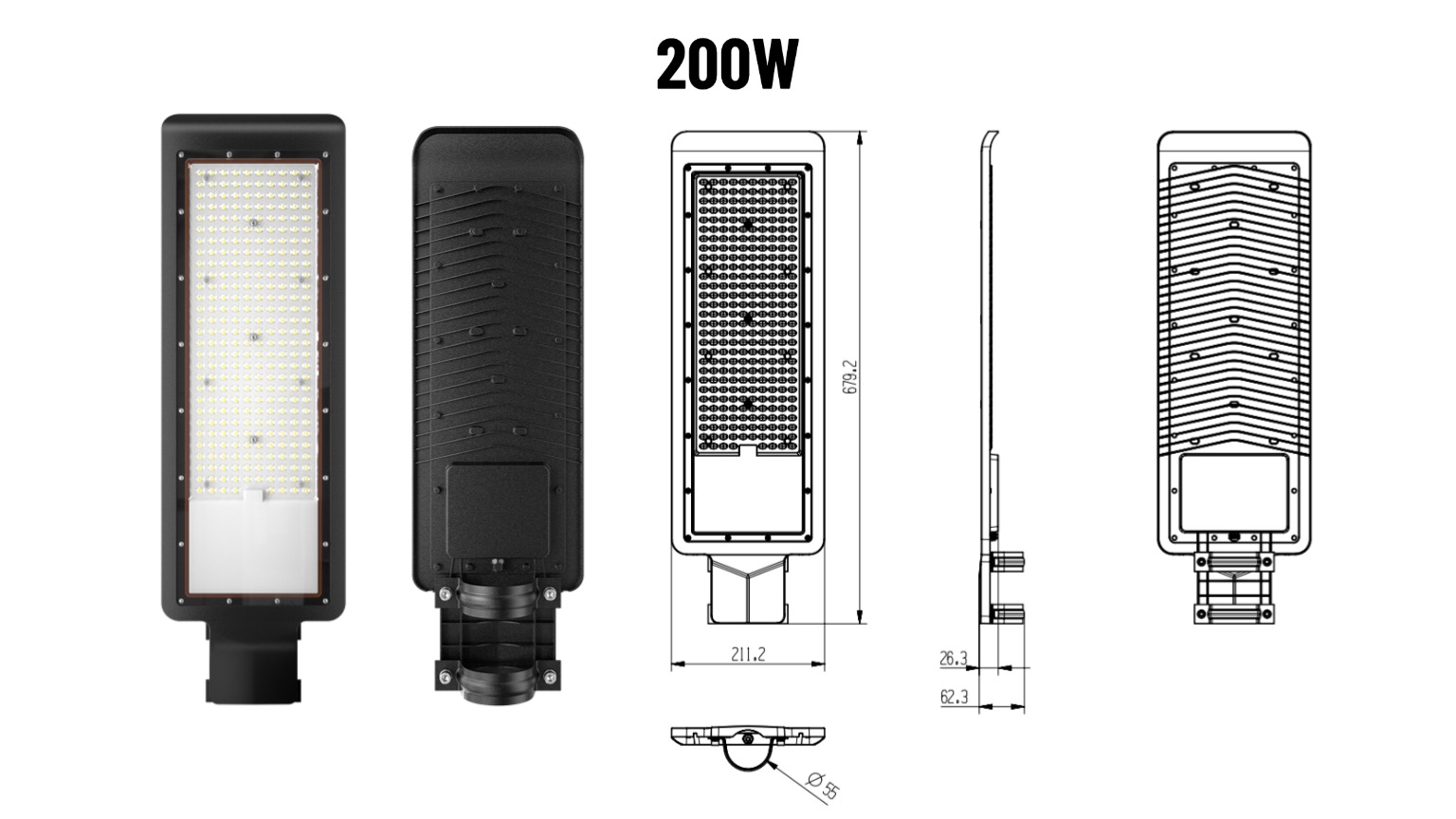

200W LED Street light dimension:
679*211*62MM
Installation Angle: Fixed

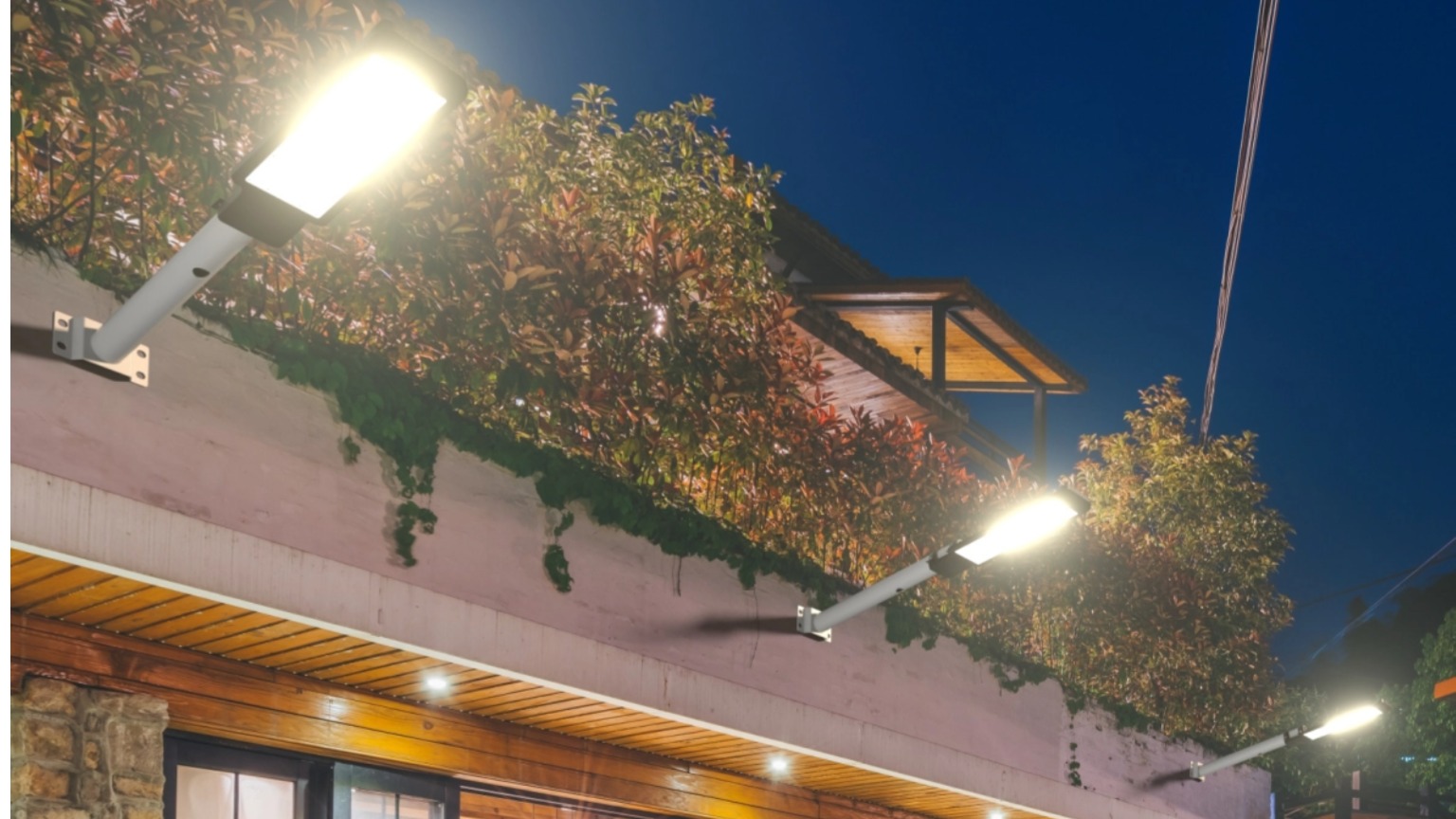

LED Street Lamp Widely Application:
- Urban main Roads
- Highway Road
- City secondary road
- Street Places
- Industrial Park
- Factory Roads
- Residential area
- Community Road
- Parking lot
- Square Lighting
A: DLD-SDC series we mainly use Sanan, Bridgelux and Epsitar brand with economic versions, however we can provide brand LED chips, like Lumiled, Cree etc, only the price is different, just contact us for further confirmation
Q: What is the mainly Color temperature for the Light?
A: 4500K 6500K is our mainly color temperature and however we can customized 2200K 3000K as per client demands
Q: What is the lumen efficacy?
A: This model led street light finished product regular lumen can reach 150~160lm/w, but also can be customized for more higher.
Q: What is the IP rating?
A: This model led street light heads can pass IP66, due to good design structure.
Q: Can you provide the IES files and optical distribution details?
A: Yes sure, we can provide IES file, as we have our own dark room for testing them
Q: What is the typical Color Rendering Index?
A: Usually this model provide 70 or 80 CRI
Q: What mainly certification do you have?
A: For the factory, we have ISO9001 certification, For the products we can provide CE ROHS certification
Q: How is the electromagnetic compatibility(EMC) of street lamp? Will it interfere with peripheral devices?
A: This model is we can provide pass EMC solution, but please confirm with our sales person.
Q：Are this light compatible with smart control? like the DALI, 0-10V dimming/Zhaga?
A： This model can put SPD and NEMA base, other smart controller we suggest other models, due to not enough space.
Q: What is the warranty for led street light heads?
A: We provide warranty as we promised time, the time from receiving the goods to the agreed time, if any quality problem, we will try our best to help solve, we will testing what is the real reason, and will send free accessories or finished products for compensation.
Q: Do you provide OEM/ ODM series?
A: Certainly, we are professional manufacturer for led street lamp, we have more than 15years experience and also we have 6 die cast aluminum machines, we can customized as per demands, just contact with our sales person.
Q: Can you provide lighting design plans and simulations?
A: We can provide lighting designs, we have design engineer and can design as per your thoughts, but we not provide simulations for the projects.
Q: Do you have MOQ and sample policy?
A: Usually our regular specifications products MOQ is 50PCS, but in order to support new client, we support samples order or trial order for testing at beginning, But if the OEM customized products MOQ need to confirm with us.
Q: What is delivery time for the sample and regular order?
A: Usually for the samples item our delivery time is 7-10days, For the regular orders our delivery time 20-25days
