30W~200W Commercial led street lights IP66 IK08
-It is made up of die cast aluminum housing and optical lens
-Non-isolated driver solution
-LED Brand, Sanan; Epistar or Bridgelux
-Input Volatge: AC85-265V/50-60Hz
-Color Temperatures: 3000K/4500K/6500K
-CRI>70
-3 Years Warranty
-IP66 waterproof
| Product Name | 60 watt street light | ||||
| Item No. | DLD-SDC-30W | DLD-SDC-50W | DLD-SDC-100W | DLD-SDC-150W | DLD-SDC-200W |
| Input Watt | 30W | 50W | 100W | 150W | 200W |
| LEDs | 3030/50PCS | 3030/ 72PCS | 3030/ 144PCS | 3030/ 216PCS | 3030/ 280PCS |
| Dimensions(mm) | 443*139*66 | 493*154*66 | 526*186*66 | 608*200*66 | 641*227*66 |
| Efficiency | >120lm/w>160lm/w | ||||
| Input Voltage | AC100-265V/50-60Hz | ||||
| LED brand | Sanan / Epistar / Bridgelux | ||||
| Driver Brand | Non-isolated driver solution | ||||
| IK Level | IK08 | ||||
| Power Factor | 0.98 | ||||
| Color Temperature | 3000K/4500K/6500K | ||||
| Material | Die Cast Aluminum & Optical lens | ||||
| IP Grade | IP66 | ||||
| Warranty | 3 Years | ||||

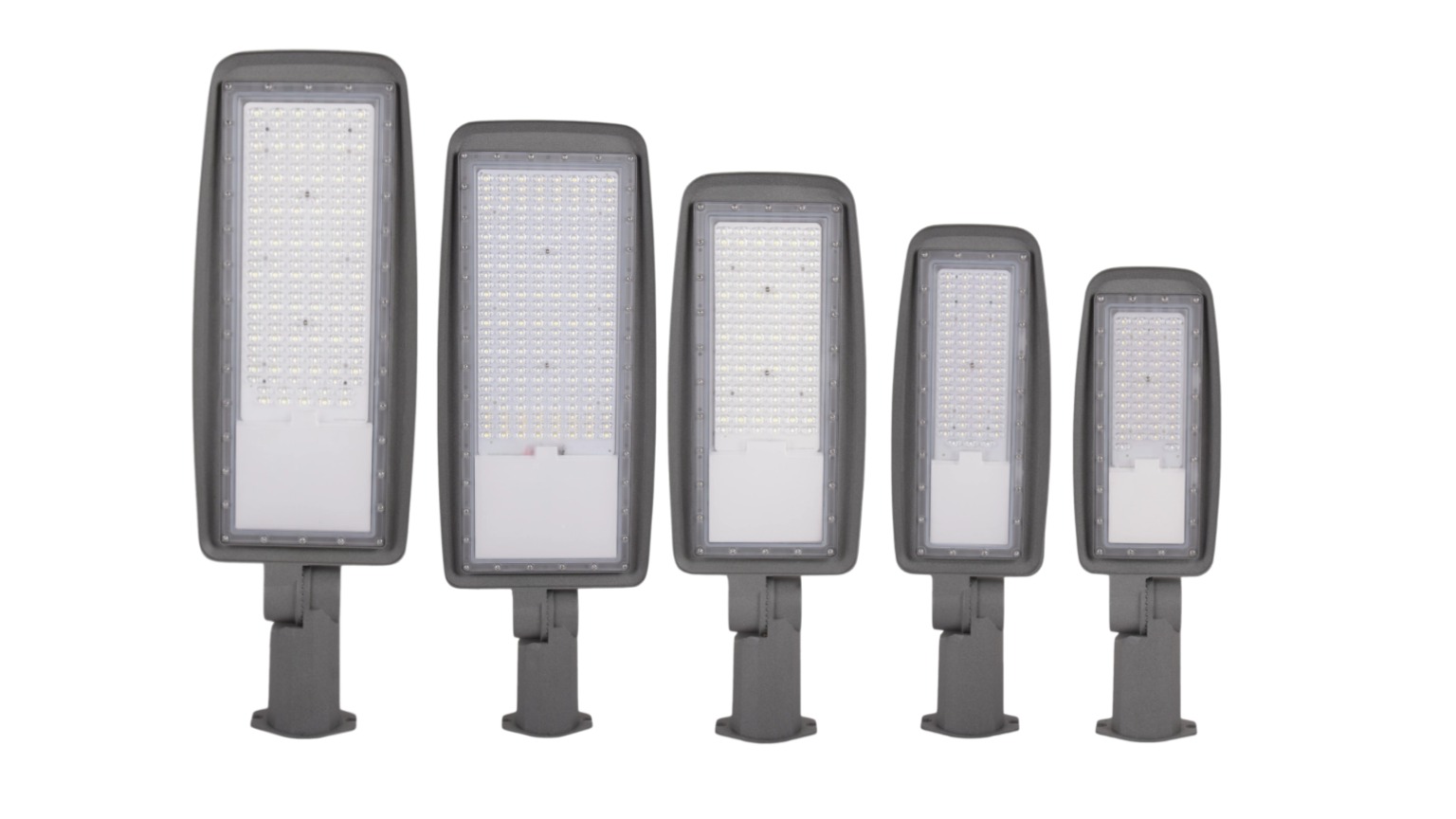

• Commercial led street lights provide 5 size housing have 30W 50W 100W 150W and 200W
• Patent and new excellent with very thin designs
• Light Efficiency can reach 150lm/w
• It made up of die cast aluminium housing and optical lens
• Anti-surge protection up to 4KV
• This model can provide AC85-265V wide voltage solution
• Provide non-isoalted driver solution with quality stable
• Customized different brand leds like Epistar, Bridgelux, Sanan etc
• Tool free maintenance
• We both provide led street light heads or SKD
• We provide 2 years warranty for this commercial led street lights
DLD-SDC series Commerical led street lights features:
This model have 5 dimensions, from 30W, 50W, 100W 150W and 200W, mainly solution is non-isolated driver, but can not put brand driver, like philips, meanwell inventronic etc, provide china domenstic driver and based on 3 years warranty. However if need 5 years warranty, we have other model types.
Finished products lumen can reach 150lm-160lm/w mainly features is high performance and price ratio which is good choice for projects or wholesale.
We both can provide SKD and finished products solution

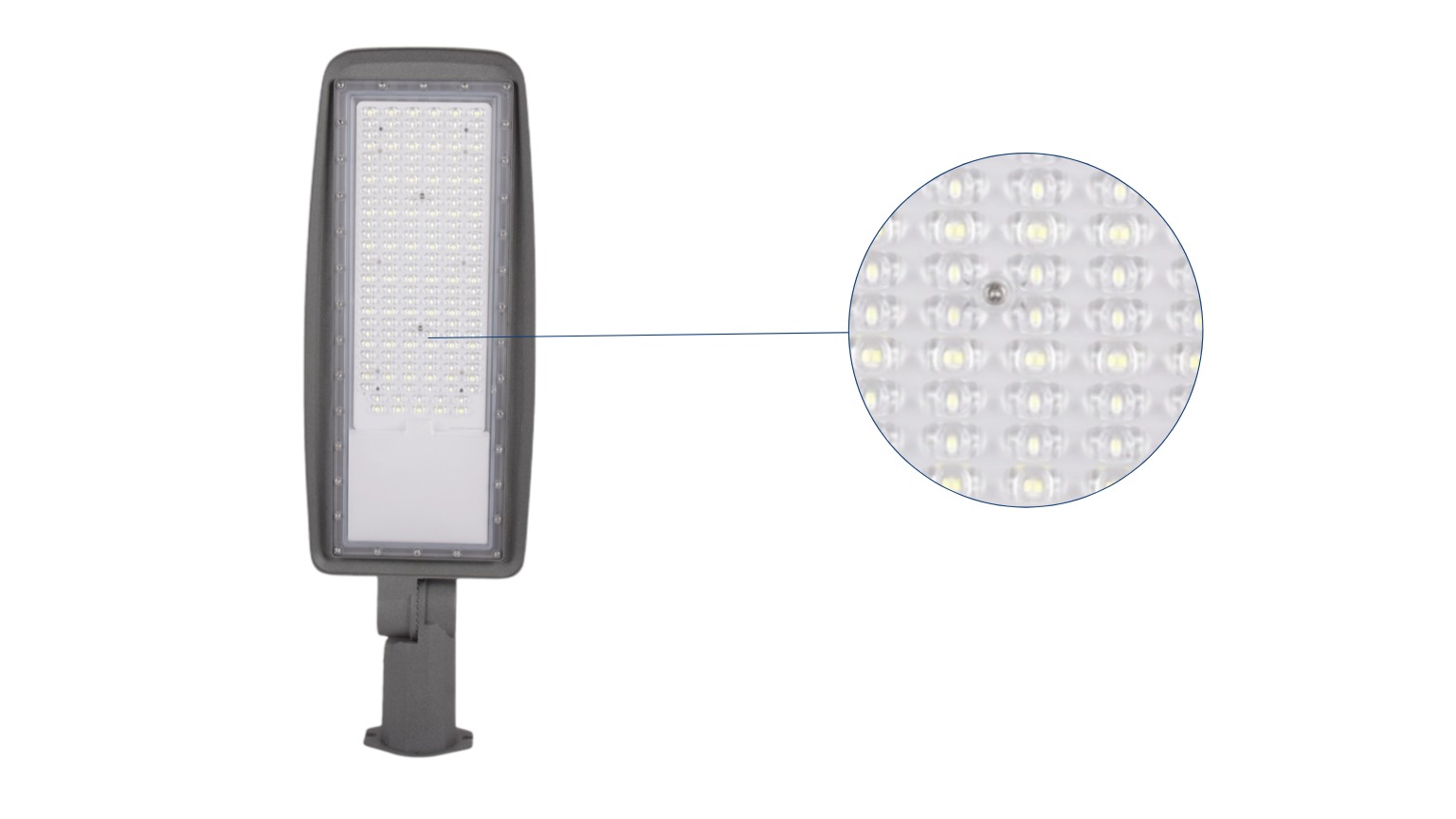

DLD-SDC series led street light heads made of the die cast aluminum housing and PC lens
The beam angle is 70*140 degree, suit regular road application
Each model we can provide IES testing report for simulation.

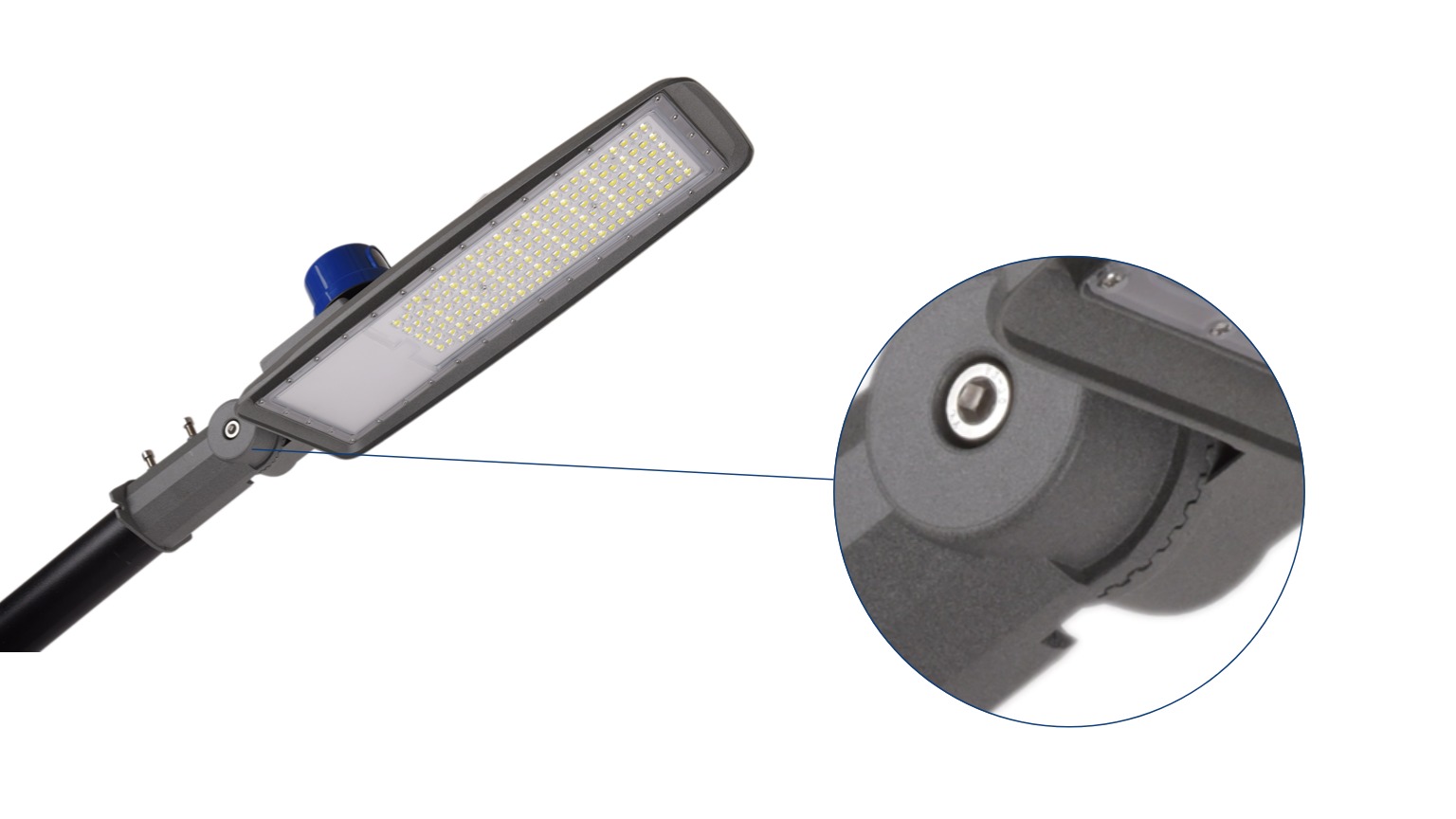

Angle of installation is adjustable
It can be equipped with a straight pole or pole with a support arm
The installation angle can be adjustable by 90/180degree and the angle of the upper and lower section can be adjusted by 15 degrees
The Installation diameter is 60mm

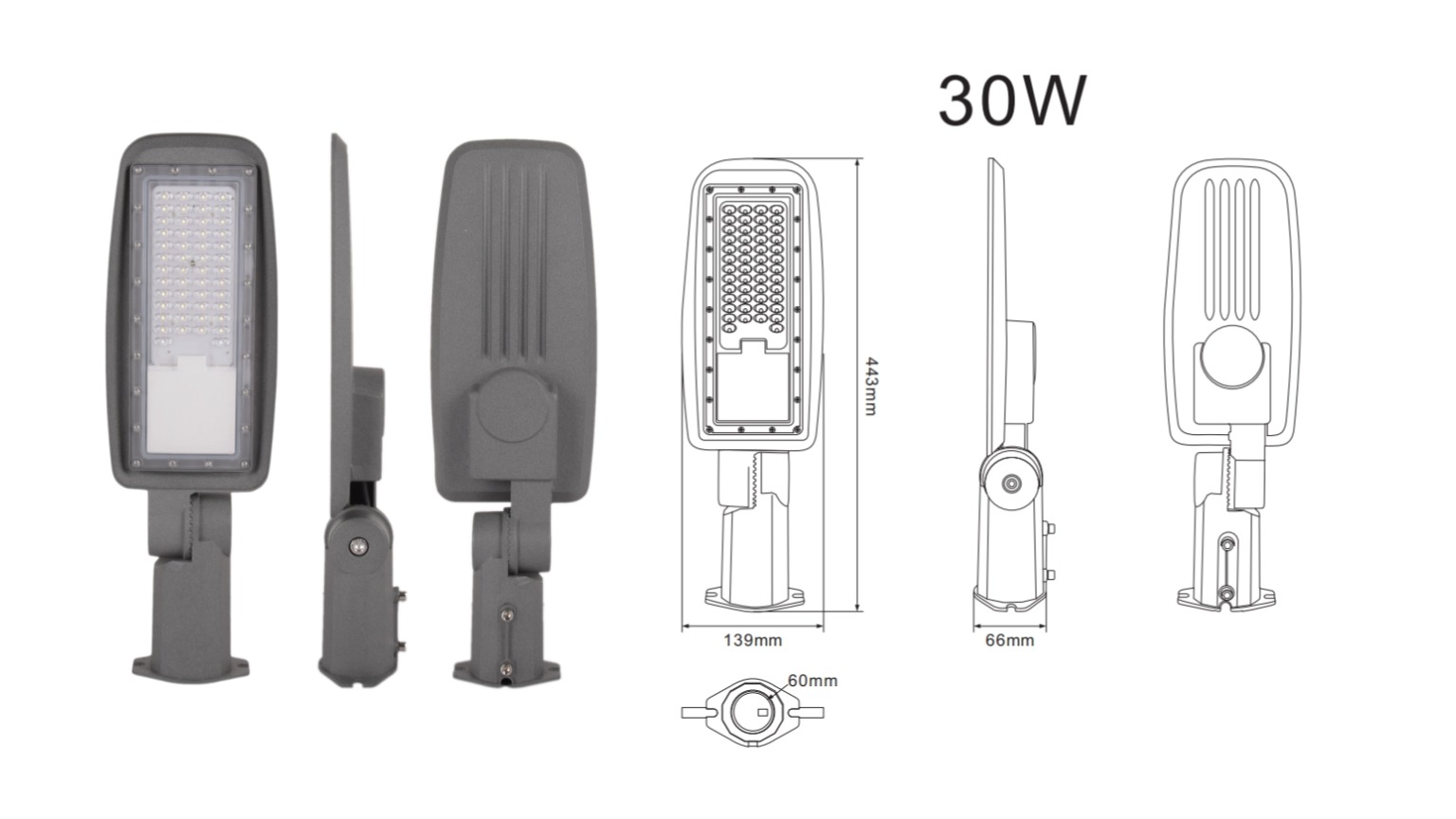

30W LED Street light Dimension:
443*139*66MM
Pole Diameter is 60MM

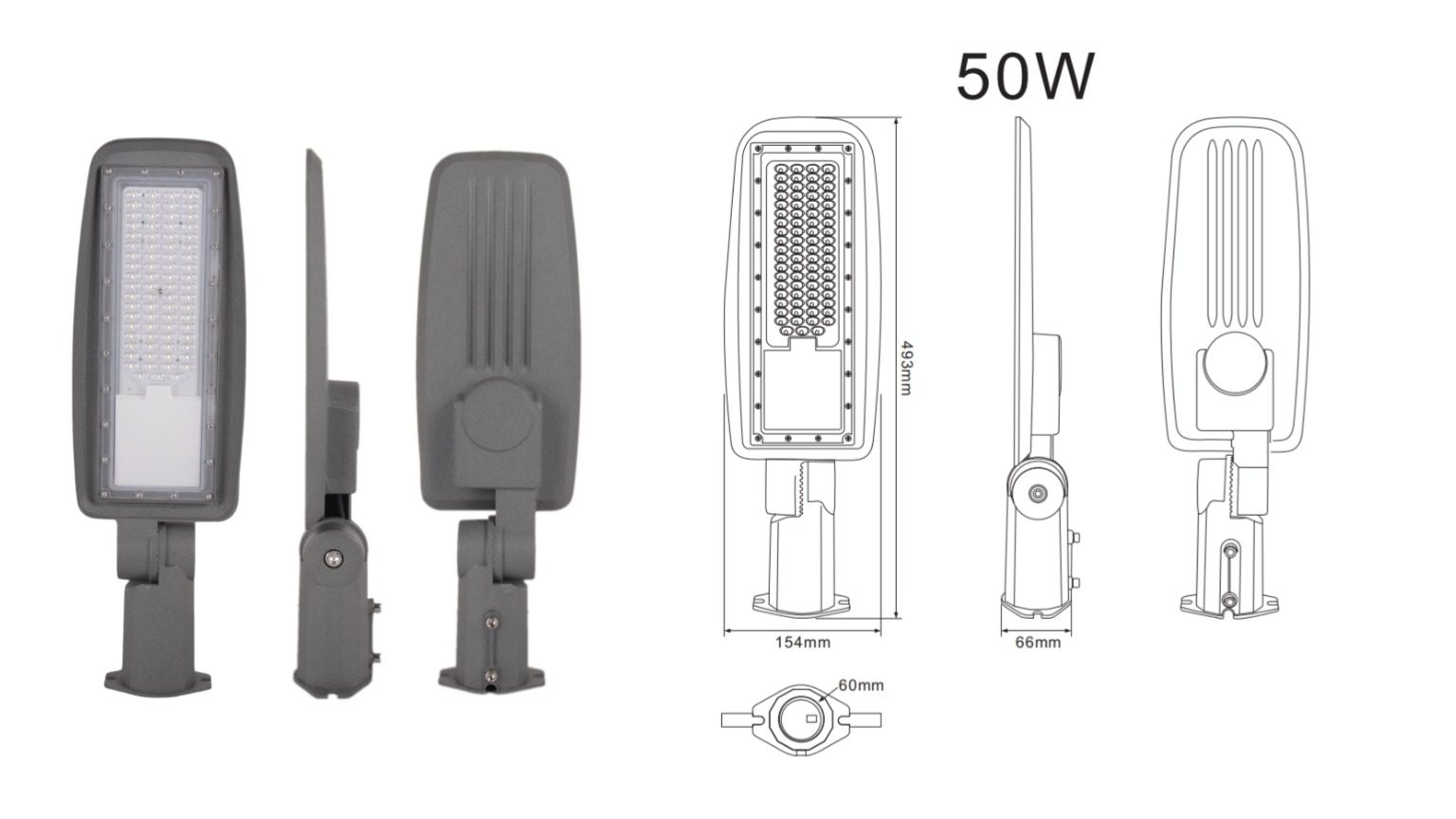

50W LED Street light Dimension
493*154*66MM
Pole Diameter is 60MM

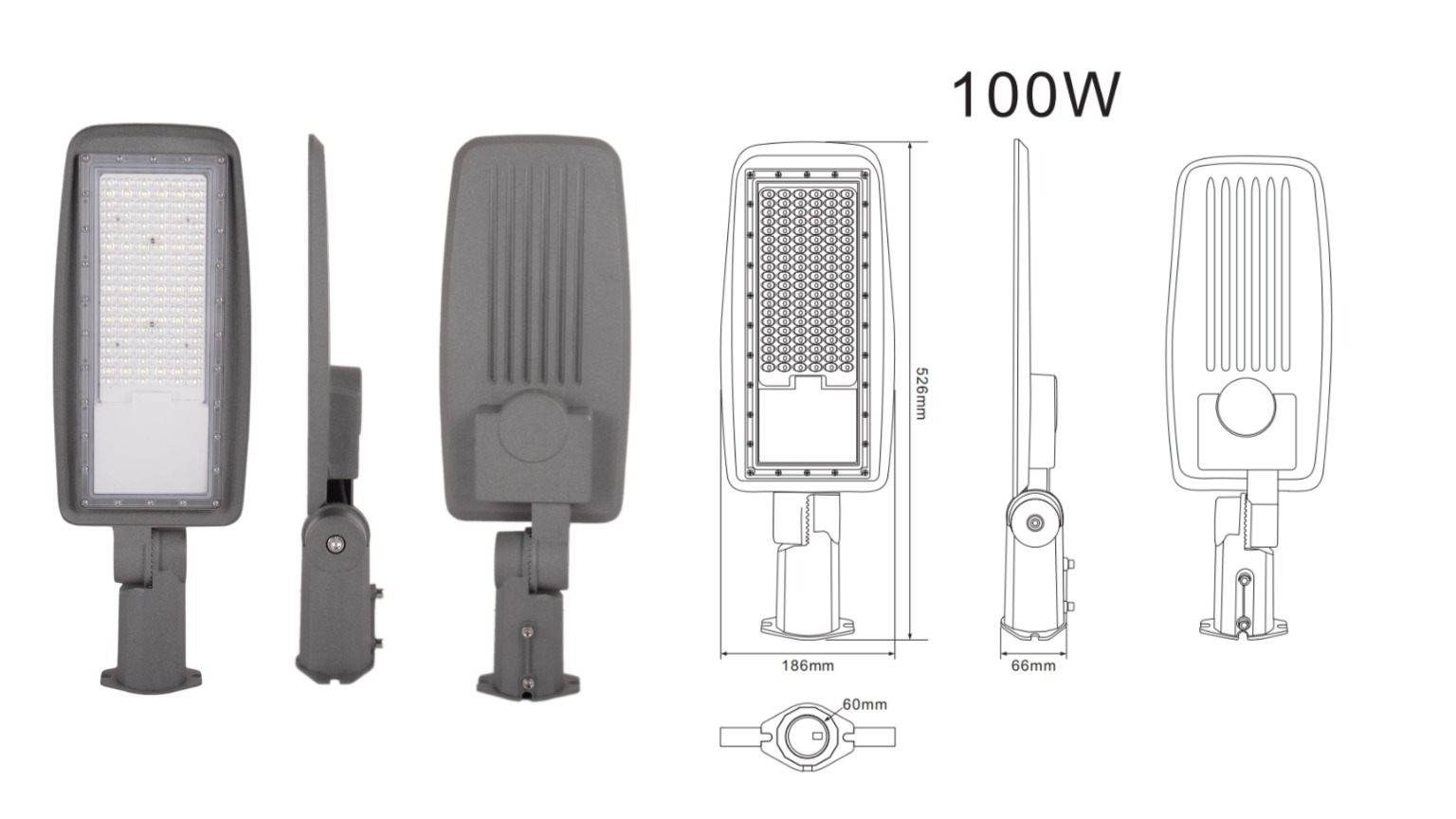

100W LED Street light Dimension
526*186*66MM
Pole Diameter is 60mm

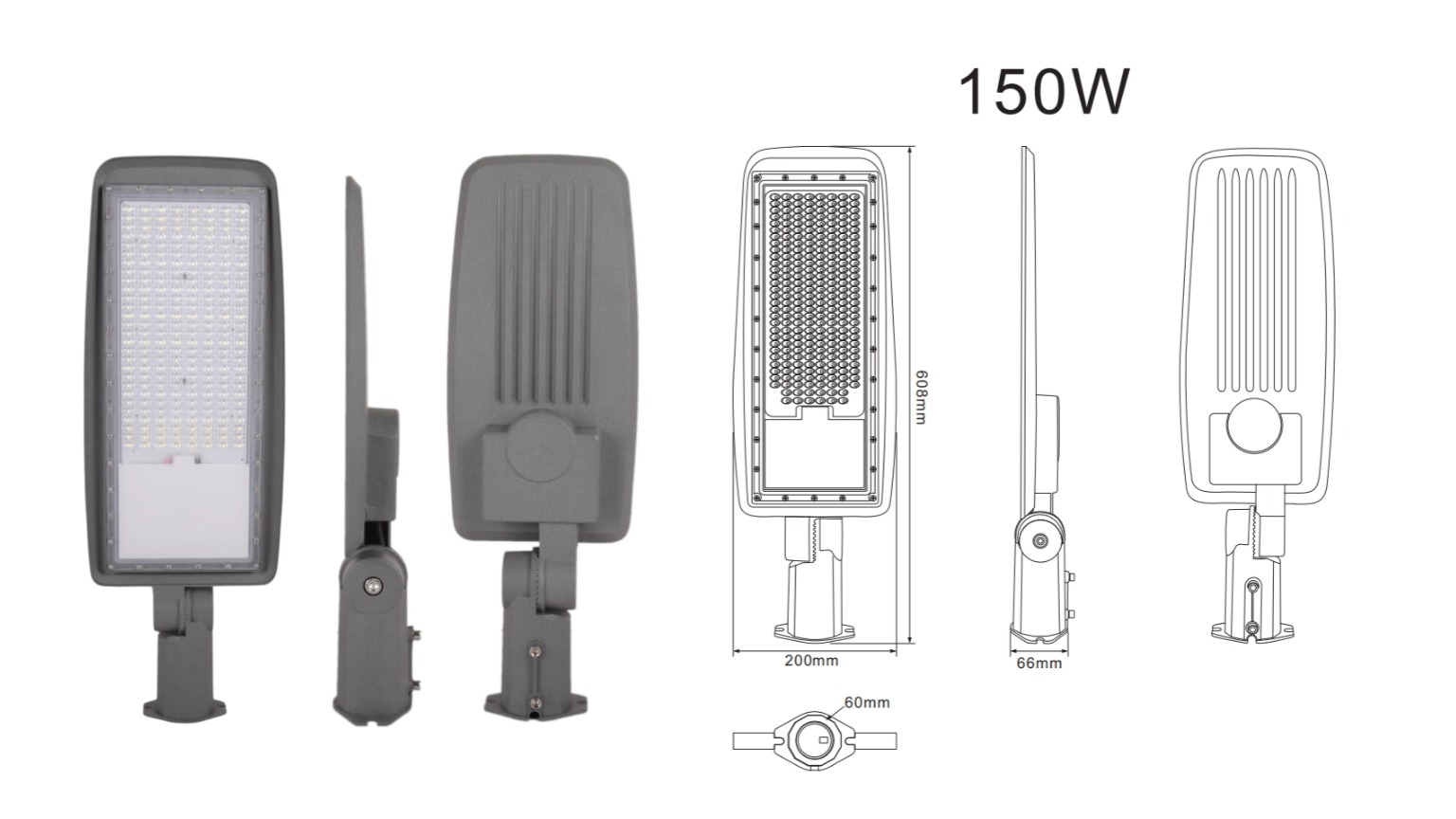

150W LED Street light Dimension
608*200*66MM
Pole Diameter is 60mm

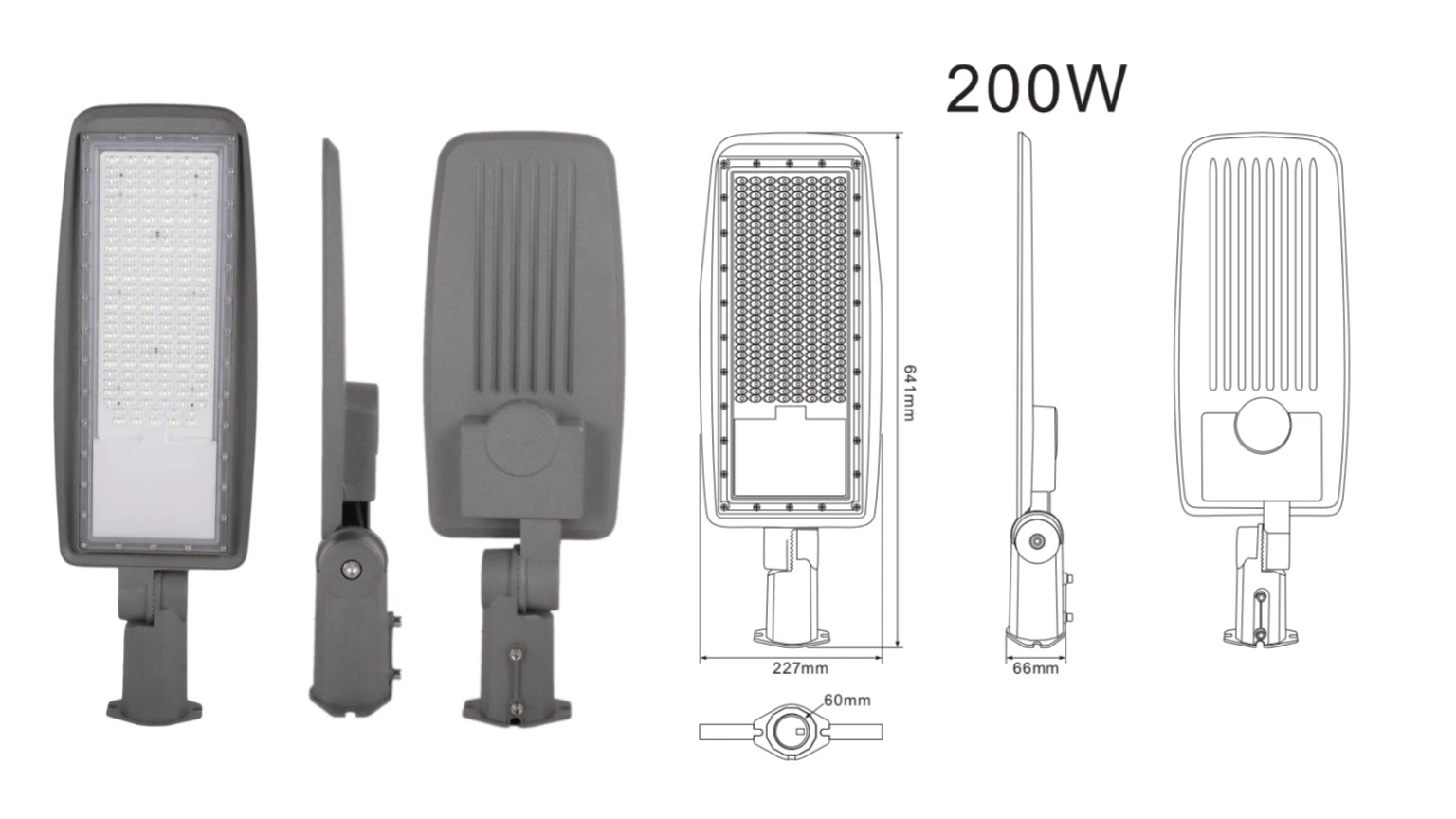

200W LED Street light Dimension
641*227*66MM
Pole Diameter is 60MM

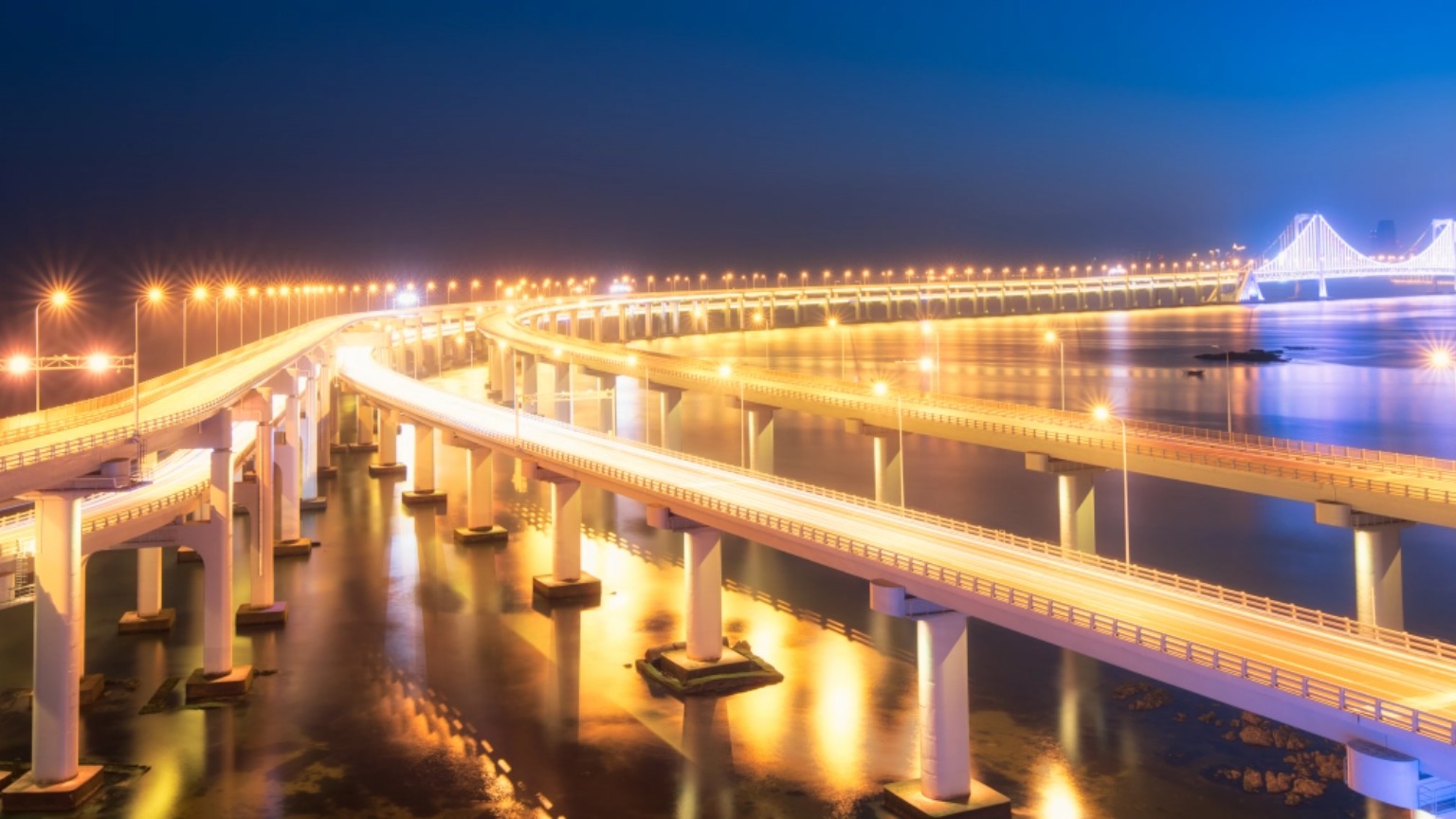

Widely Application
- Urban main Roads
- Highway Road
- City secondary road
- Street Places
- Industrial Park
- Factory Roads
- Residential area
- Community Road
- Parking lot
- Square Lighting
A: DLD-SDC series we mainly use Sanan, Bridgelux and Epsitar brand with economic versions, however we can provide brand LED chips, like Lumiled, Cree etc, only the price is different, just contact us for further confirmation
Q: What is the mainly Color temperature for the Light?
A: 4500K 6500K is our mainly color temperature and however we can customized 2200K 3000K as per client demands
Q: What is the lumen efficacy?
A: This model led street light finished product regular lumen can reach 150~160lm/w, but also can be customized for more higher.
Q: What is the IP rating?
A: This model led street light heads can pass IP66, due to good design structure.
Q: Can you provide the IES files and optical distribution details?
A: Yes sure, we can provide IES file, as we have our own dark room for testing them
Q: What is the typical Color Rendering Index?
A: Usually this model provide 70 or 80 CRI
Q: What mainly certification do you have?
A: For the factory, we have ISO9001 certification, For the products we can provide CE ROHS certification
Q: How is the electromagnetic compatibility(EMC) of street lamp? Will it interfere with peripheral devices?
A: This model is we can provide pass EMC solution, but please confirm with our sales person.
Q：Are this light compatible with smart control? like the DALI, 0-10V dimming/Zhaga?
A： This model can put SPD and NEMA base, other smart controller we suggest other models, due to not enough space.
Q: What is the warranty for led street light heads?
A: We provide warranty as we promised time, the time from receiving the goods to the agreed time, if any quality problem, we will try our best to help solve, we will testing what is the real reason, and will send free accessories or finished products for compensation.
Q: Do you provide OEM/ ODM series?
A: Certainly, we are professional manufacturer for led street lamp, we have more than 15years experience and also we have 6 die cast aluminum machines, we can customized as per demands, just contact with our sales person.
Q: Can you provide lighting design plans and simulations?
A: We can provide lighting designs, we have design engineer and can design as per your thoughts, but we not provide simulations for the projects.
Q: Do you have MOQ and sample policy?
A: Usually our regular specifications products MOQ is 50PCS, but in order to support new client, we support samples order or trial order for testing at beginning, But if the OEM customized products MOQ need to confirm with us.
Q: What is delivery time for the sample and regular order?
A: Usually for the samples item our delivery time is 7-10days, For the regular orders our delivery time 20-25days
