Model No: DLD-SMD
50W-300W modular led street light fixed angle
300w led street light Descriptions:
-Die cast aluminum & Aluminum profile
-Driver Brands : Philips/ Invertronics/ Moso/ Meanwell
-Leds: Osram/ Lumileds/ Sanan/ Bridegelux/ Epistar
-AC85-265V/50-60Hz
-3000K/4500K/6500K
-Mounting Diameter: 60mm
-CRI>70/80
-3/5 Years Warranty
-IP65
-Die cast aluminum & Aluminum profile
-Driver Brands : Philips/ Invertronics/ Moso/ Meanwell
-Leds: Osram/ Lumileds/ Sanan/ Bridegelux/ Epistar
-AC85-265V/50-60Hz
-3000K/4500K/6500K
-Mounting Diameter: 60mm
-CRI>70/80
-3/5 Years Warranty
-IP65
Quantity :
0.00
Product Parameters
| Product Name | led street light replacement/cobra led street light/300w street light | |||||
| Item No. | DLD-SMD-50W | DLD-SMD-100W | DLD-SMD-150W | DLD-SMD-200W | DLD-SMD-250W | DLD-SMD-300W |
| Input Watt | 50W | 100W | 150W | 200W | 250W | 300W |
| LEDs | 3030/50PCS | 3030/100PCS | 3030/ 150PCS | 3030/ 200PCS | 3030/ 250PCS | 3030/ 300PCS |
| Dimensions(mm) | 415*300*60 | 500*300*60 | 585*300*60 | 670*300*60 | 755*300*60 | 835*300*60 |
| Efficiency | >120lm/w | >120lm/w | >120lm/w | >120lm/w | >120lm/w | >120lm/w |
| Input Voltage | AC85-277V/50-60HZ | |||||
| LED brand | Osram/ Lumileds/ Sanan/ Bridegelux/ Epistar | |||||
| Driver Brand | Philips/ Invertronics/ Moso/ Meanwell | |||||
| IK Level | IK09 | |||||
| Power Factor | >0.95 | |||||
| Color Temperature | 3000K/4500K/6500K | |||||
| Material | Aluminum & Optical lens | |||||
| IP Grade | IP65 | |||||
| Warranty | 2 Years | |||||
LED Street Lights Description
• led modular street light provide 6 size housing have 50W 100W 150W 200W 250W 300W
• Adopt high quality first class aviation aluminum and surface spray painted and positive oxidation treatment, strong corrosion resistance
• Light Efficiency can reach 120lm/w
• Anti-surge protection up to 4KV, 10KV or 20KV
• This model can provide AC85-265V wide voltage solution
• Provide 5 years warranty
• Customized different brand leds like Lumileds, Osram, Epistar, Bridgelux, Sanan etc
• Customized different brand driver like Philips Meanwell, Inventronics,Moso Sosen etc
• Tool free maintenance

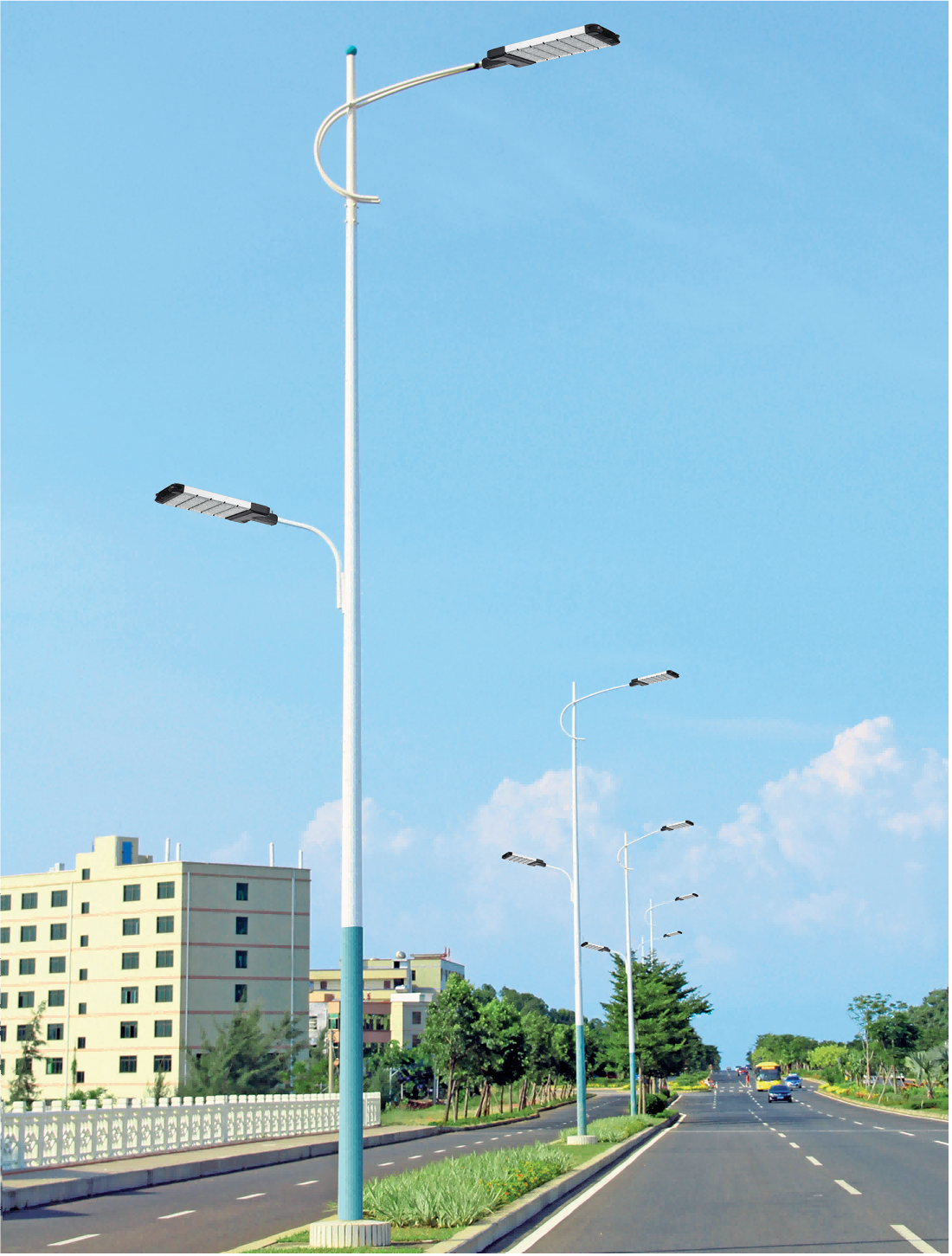

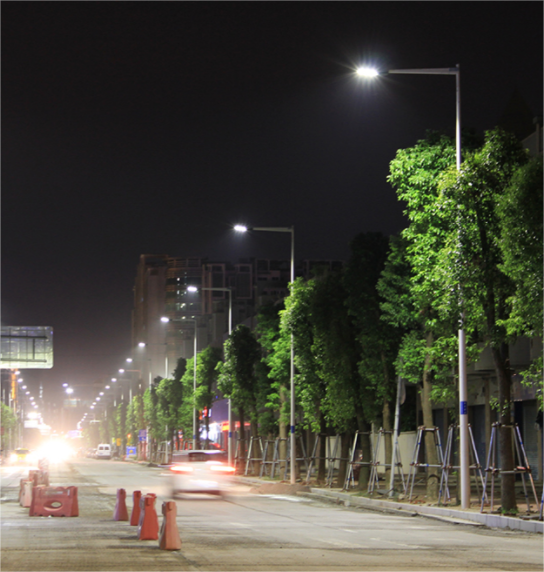

• LED Street lights widely applicable to residential street lights, road, highway, parks, plazas and villas
Application
