0
modular led street light
modular led street light
philips 60 watt led street light
philips 60 watt led street light
philips 60 watt led street light
modular led street light
Model No: DLD-SHF

50W~200W IP66 LED Street Light China manufacturer

LED Street light Descriptions:
Die Cast Aluminum material
LED Street lamp LEDs brand; Cree, Lumileds, Osram Bridgelux , Sanan Epistar
Drivers: Philips, Invertronics, Moso, Meanwell, Sosen
AC85~305V/50-60Hz
30°/60°/90°/120°/T2/T3 meet different road lighting
3000K/4500K/6500K
CRI>80
5 Years Warranty
IP66
Quantity :
0.00
Buy Now
add to cart
Contact Now
Product Parameters
Product Name 30W ~200W LED street light 5 years warranty IP66 IK10
Item No.DLD-SHB-50WDLD-SHB-100WDLD-SHB-150WDLD-SHB-200W
Input Watt 50W100W150W200W
LEDs3030/72PCS3030/144PCS3030/180PCS3030/240PCS
Dimensions(mm)507*213*85562*262*85672*333*85717*333*85
Efficiency >150~180lm/w>150~180lm/w>150~180lm/w>150~180lm/w
Input Voltage AC85-305V/50-60Hz
LEDs brandCree, Lumileds, Osram Bridgelux , Sanan Epistar
Driver Brand Philips, Invertronics, Moso, Meanwell, Sosen
IK LevelIK10
Power Factor0.95
Color Temperature3000K/4500K/6500K
Material Die Cast Aluminum & Tempered Glass
IP Grade IP66
Warranty5 Years


LED Street light Description

• Led street light provide 4 size housing have 50W 100W 150W 200W

• New excellent thermal radiation and build-in imported breather design, outstanding for lower lighting decay

• Light Efficiency can reach 150~180lm/w

• LED Street Lights projects have T2/T3/T4  meet different road lighting

• High quality LEDs chips, driver ( 0-10V/ DALI/programmed upon requests) 10KV / 20KV spd for option

• Top post and side entry mounting, angle can be adjustable 15 degree for up and down

• With Nama/Zhaga socket, could work with smart-city control technology

• Can choose Photocell, Shorting cap, Motion sensor, Nema socket(3/5/7 pins), Smart Controller, Cut-iff connerctor

• Can provide different brand leds like Lumileds, Osram, Epistar, Bridgelux, Sanan etc

• Can provide different brand driver like Philips, Meanwell, Inventronics, Moso, Sosen etc

• Tool free maintenance

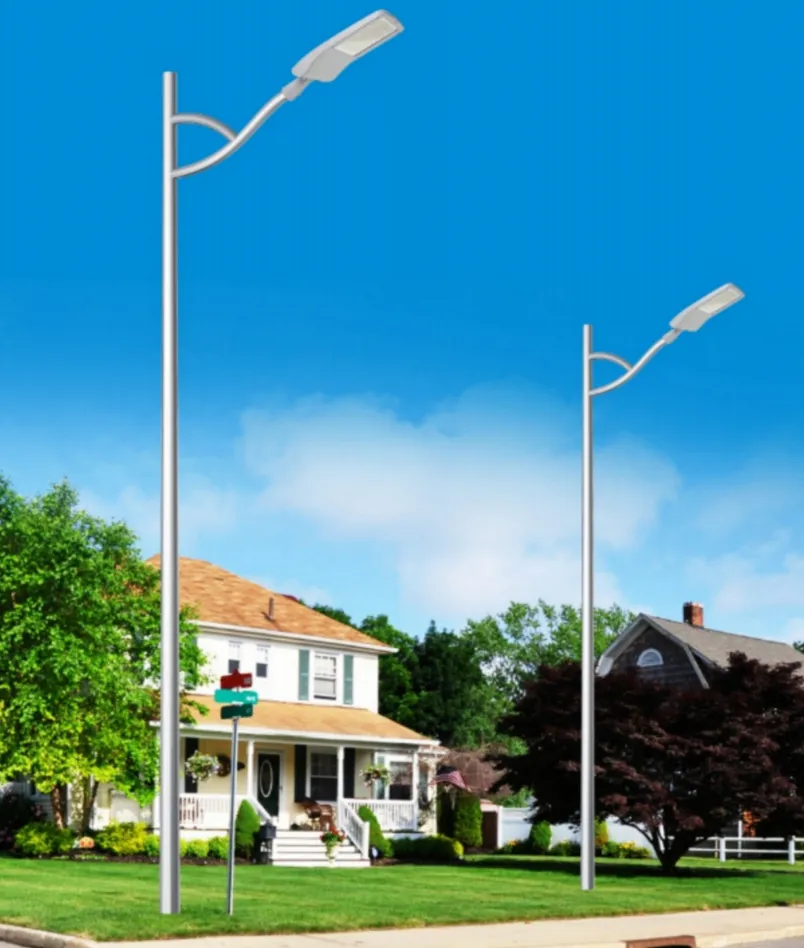

• LED Street lamp widely applicable to residential street lights, road, highway, parks, plazas and villas

Application
die cast aluminum led street lamp factoryoutdoor dusk to dawn 150w street light manufacturer
