50W ~ 250W | High-Quality LED Street Light Fixture | IP66 | IK10
Die Cast Aluminum material & Temerepd glass
Tool Free to open the back cover and driver plate
LED Street lamp LEDs brand; Cree, Lumileds, Osram Bridgelux , Sanan Epistar
Drivers: Philips, Invertronics, Moso, Meanwell, Sosen
AC85~305V/50-60Hz
30°/60°/90°/120°/T2/T3 meet different road lighting
3000K/4500K/6500K
CRI>80
5 Years Warranty
IP66
| Product Name | 50W ~ 250W | High-Quality LED Street Light Fixture | IP66 | IK10 | |||
| Item No. | DLD-SHE-50W | DLD-SHE-100W | DLD-SHE-150W | DLD-SHE-200W |
| Input Watt | 50W | 100W | 150W | 200W |
| LEDs | Lumileds-5050/72PCS | Lumileds-5050/144PCS | Lumileds-5050/192PCS | Lumileds-5050/288PCS |
| Dimensions(mm) | 620*250*95 | 655*250*95 | 770*295*95 | 890*295*95 |
| Efficiency | >150LM > 170LM > 200LM for options | |||
| Input Voltage | AC85-305V/50-60Hz | |||
| LEDs brand | Cree, Lumileds, Osram Bridgelux , Sanan Epistar | |||
| Driver Brand | Philips, Invertronics, Moso, Meanwell, Sosen | |||
| IK Level | IK10 | |||
| Power Factor | 0.98 | |||
| Color Temperature | 3000K/4500K/6500K for the led street light | |||
| Material | Die Cast Aluminum & Tempered Glass | |||
| IP Grade | IP66 | |||
| Warranty | 5 Years | |||
This is new mold deisgn we opend, this model have high performance efficiency, total have 4 dimensions, avaiable watt have 30W 40W 50W 60W 80W 100W 120W 150W 180W 200W and max can do 250W, it is designed for high brightness and especially for the governemnt projects. . DLD-SHE series led street light can be customized as per different projects demands, finished products lumens can reach 150lm/w~200lm/w, addition componets can be add( DALI, 0-10V, 1-10V ,smart controller, or motion sensor 10KV spd, 20KV spd, etc), This model have great performance on the temperature testing, special for the high temperature places environment, like Dubai, Saudi Arabia, Egypt, Irap etc. DLD Light manufacturer is professional led street manufacturers with more than 15 years experiences, we mainly provide OEM and customized solutions, different brand leds, drivers we both can provide. This model details as below:
High quality LED Street Light Fixture – High Efficiency & Smart Control
- Wattage: 30W, 50W, 80W, 100W, 120W, 150W, 180W, 200W, 220W, 250W
- Superior Heat Dissipation: Imported breather design for low light decay
- High Efficiency: 150lm/W 170lm/w 200lmw suit for different projects
- Smart City Controller option: Compatible with NEMA/Zhaga sockets & IoT controls
May Specifications
- Beam Angles: T2 / T3 /T4 (Customizable for roads, highways & parks)
- LED Chips: Lumileds, Osram, Epistar, Bridgelux, Sanan (Optional)
- Drivers: Philips, Meanwell, Inventronics, Moso, Sosen (0-10V/1-10V/ DALI/ Programmable)
- Surge Protection: 10KV / 20KV SPD for extreme weather durability
- Easy Installation: Tool-free access, adjustable angle for the up and down (±15°)
Why Choose Us? (Trusted LED Street Light Manufacturers)
- Competitive LED Street Light Prices – Direct factory Price
- 15+ Years Expertise – Reliable lighting solutions for highways, streets & smart cities
- Custom Solutions – OEM serivices, Addition function and componets, Print labels, lasers, customized packages etc
- Quality Guaranteed- We are not only selling the products, but most important we provide after-sales services 100%
- Fast delivery time-We can provide on time and fast delivery time ( most of our regular material keep the stocks)
Applications (Where to Use Our LED Street Lights?)

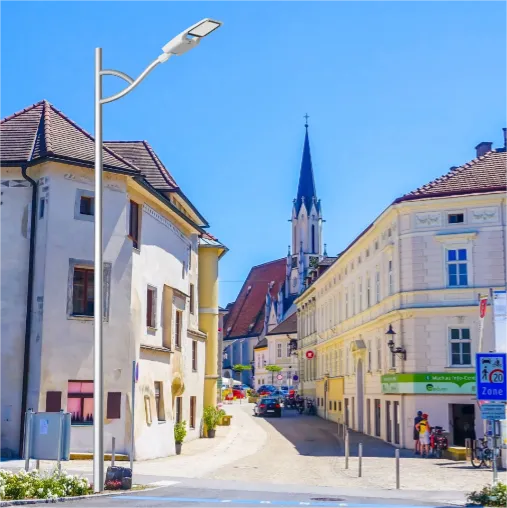

1. Urban Road Lighting
Main Roads & Highways: High-power LED street lights (150W-250W) provide uniform illumination for safe nighttime driving.
Residential Streets & Sidewalks: Medium-low wattage (30W-120W) offers comfortable lighting while saving energy.
2. Expressways & Bridges
High-lumen output (180W+) with narrow beam angles (30°-60°) reduces glare and enhances long-distance visibility.
3. Parks, Plazas & Pedestrian Pathways
Wide beam (120°) for broad coverage, with optional warm white (3000K) for a welcoming ambiance.
Smart sensors (motion detection, dimming controls) optimize energy usage.
4. Industrial Zones & Ports
IP66-rated for dustproof, waterproof, and corrosion-resistant performance in tough environments.
Flexible mounting (side/top entry) for customized installation.
5. Smart City Projects
Zhaga/NEMA socket compatibility for IoT integration (remote monitoring, energy management).
Optional adaptive lighting (traffic/pedestrian sensors, daylight harvesting).
